“CLW” brand LPG storage semitrailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc.
All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998《steel pressure vessel》, 《Supervision Regulation on Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car》.
lpg storage tankis also calledLPG gas tank,lpg tank,lpg storage tank, lpg gas storage tank,bulk lpg storage tanks, etc. The lpg storage tank is belong to pressure vessel.

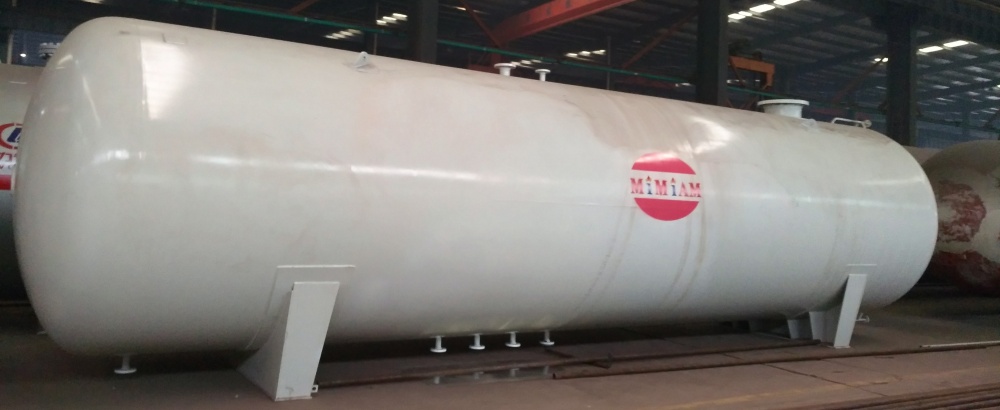

The lpg storage tank we produce are horizontal lpg tank, vertical lpg tank. It mainly used to store up liquid petrolum gas, propane.We also produce pressure vessel to store liquid ammonia, dimethyl .
The lpg storage tank is made of special material Q345R. As a professional lpg tank manufacturer in China, we havethe aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container.The lpg tank we produce is from 5 cubic meter to 120 cubic meter.
The manufacturing processing of lpg tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
If you're interested our lpg gas pressure vessels, please contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
main technical parameters of CLW brand propane gas storage tanker manufactured by Chengli Special Automobile Co., Ltd. is as below.
| list | product model | main parameters | Pri ce | ||||||||||||
| chassis model | overall dimension (L*W*H) (mm) | tank dimension (inner diameter* tank thickness* length) (mm) | end head type and thickness | tank volume(m3) | medium | filling ratio | designed pressure | rated weight (kg) | curb weight (kg) | total weight (kg) | material | ||||
| 1 | CLW5250GYQD4 | DFL1250A11 （dongfeng 6×4 LPG truck） | 10200*2500 *3450 | 2100*12* 7534 | double oval shape δ12 | 24 | LPG | 0.42 | 1.61MPa | 10420 | 14385 | 25000 | Q345R | ||
| 2 | CLW5311GYQD4 | DFL1311A10 （dongfeng 8×4 Lpg truck） | 11700*2500 *3690 | 2350*11* 8960 | double ball shape δ8 | 35.5 | LPG | 0.42 | 1.61MPa | 14910 | 15895 | 31000 | Q370R | ||
| 3 | CLW5310GYQC4 | CA5310GYYP63K1L6T4E4 （FAW 8×4 LPG truck） | 11700*2495 *3690 | 2350*11* 8960 | double ball shape δ8 | 35.5 | LPG | 0.42 | 1.61MPa | 14910 | 15895 | 31000 | Q370R | ||
| 4 | CLW5240GYQ | CA5250P7K2L3T1E4 （FAW 6×4 LPG truck） | 10200*2500*3450 | 2100*12* 7534 | double oval shape δ12 | 24 | LPG | 0.42 | 1.61MPa | 10420 | 14385 | 25000 | Q345R | ||
| 5 | CLW9409GYQ | 3 axles LPG semitrailer | 13000*2500*3977 | 2474*11* 12615 | double oval shape δ13 | 58.5 | LPG | 0.42 | 1.61MPa | 24570 | 15430 | 40000 | Q370R | ||
| 6 | 2470*12* 12840 | one ball and one oval shape end headδ8mm for ovalδ12 for ball | 24570 | 15430 | 40000 | Q345R | |||||||||
| 7 | CLW9400GYQA | 3 axles LPG semitrailer | 13000*2500*3990 | 2475*11.5* 12837 | double oval δ11.5 | 59.52 | LPG | 0.42 | 1.61MPa | 25000 | 15000 | 40000 | Q370R | ||
| 8 | CLW9390GYQ | 3 axles LPG semitrailer | 12700*2500*3975 | 2450×11.5*12340 | double ovalδ11.5 | 56 | LPG | 0.42 | 1.61MPa | 23520 | 15480 | 39000 | Q370R | ||
| 9 | CLW9406GYQ | 3 axles LPG semitrailer | 12640*2490*3980 | 2450*8*12311 | double ovalδ8 | 56 | LPG | 0.49 | 0.70MPa | 27440 | 12560 | 40000 | Q345R | ||
| 10 | CLW9402GYQA | 3 axles LPG semitrailer | 13000*2500*3990 | 2450*13*12756 | double ball δ8 | 57.1 | LPG | 0.43 | 1.95MPa | 24550 | 15450 | 40000 | Q370R | ||
| 11 | CLW9310GYQ | 2 axles LPG semitrailer | 11324*2500*3730 | 2200*12*11044 | double oval shape δ12 | 40.5 | LPG | 0.42 | 1.61MPa</t | ||||||
