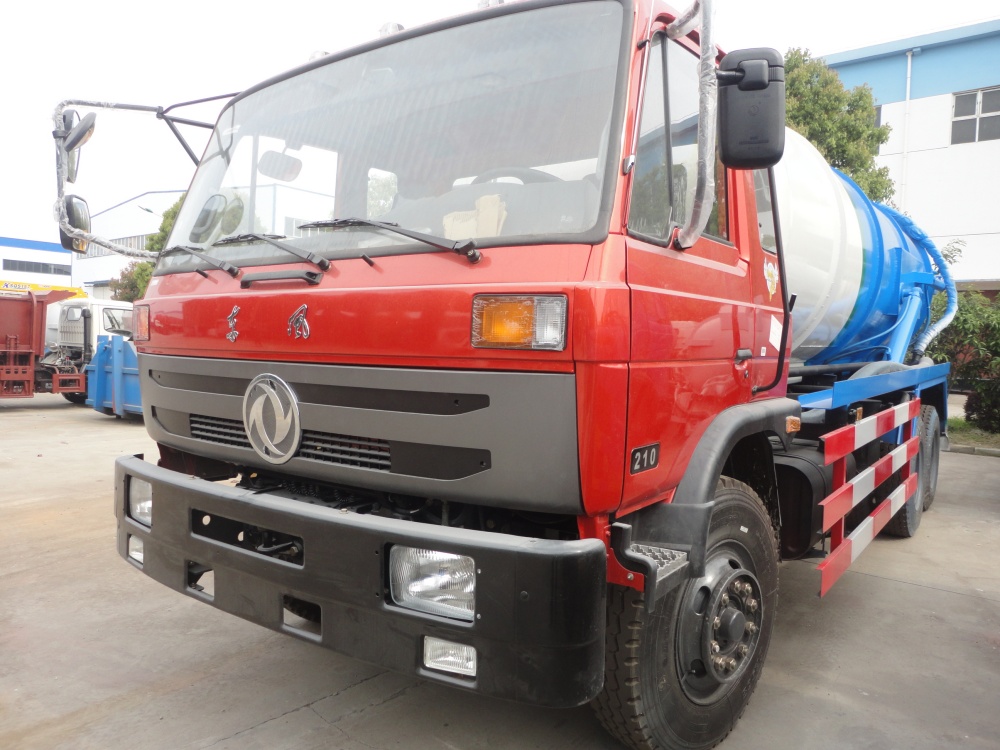

main technical parameters of dongfeng 153 6*4 LHD 14CBM vacuum tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below
| product name | CLW5253GXW3 vacuum tanker truck for sale | Product name | CLW |
| Total mass(kgs) | 25000 | Tanker volume(m3) | 14 |
| Rated mass(kgs) | 12470 | Overall dimension(L*W*H)(mm) | 9300×2550×3650 |
| Curb mass(kgs) | 12400 | Cargo body dimension | ×× |
Axle nos. | Wheelbase(mm) | 4350+1350, | |
Chassis model | EQ1258KB3GJ | Truck chassis | Second type cargo truck chassis |
| - | - | Tires nos. | 10 |
Fuel type | Diesel | Tire specification | 10.00R20 |
emission standard | Euro Ⅲ | ||
Engine model | Engine manufacturer | displacement | power |
| B210 33 | Dongfeng Cmmins engine | 5900 | 155 |
vehicle performance and features is as below
Dongfeng old version G type 153 luxurious driver cab with tilting mechanism design, B210 33 Cummins 210hp(EGR) diesel engine, φ395 diaphragm spring clutch, truck engine with air intake preheating, hede brand 5tons front axle/hede 10tons double rear axles(5.571)， 8JS85E( with PTO) manual gearbox, 300mm（8+6）x90 constant cross section 860 width dual-layer beam, full steel oil tanker(left-installed), 10.00R20 16PR rail tires, etc.
Upper part of vacuum tanker is as below
1, the sewage tanker volume: 14cbm, adopts high quality wugang steel plate, 8mm thickness tanker wall. There are several anti-wave sheets inside the tanker.
2, the vacuum pump adopts Shangdong zibo haosai 2BE204 water-circulating pump(vertical suction distance: 9m).
3, installed anti-overflow valve; the vacuum tube is installed with stainless steel material filter (preventing impurities into the pump)
4, the sewage four-way valve position is with 100mm diameter vibration-proof pressure gauge, which to resist the vibration of the working conditioner and reduce the pulsation of medium pressure.
5, one 100mm sewage suction inlet, rear part is with 600mm hydraulic sewage outlet and one 100mm sewage outlet
6, the vacuum tanker can be hydraulically lifting and tipping; the rear part sewage outlet hydraulically open with locking device.
7, tanker top is with platform with sidewalk guardrail; and tanker top is with 2* tanker openings to inlet the sewage and clean the tanker.
Vacuum sludge truck is also called vacuum truck, sewer vacuum truck, sludge transported truck, etc. It is a kind of special full sealed tank truck for collecting and transporting sludges. It is a vacuum tank truck, self-sucking and self-discharging, easy to operation and large volume
The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h.
HOT SALE! DONGFENG VACUUM TANKER TRUCK
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of vacuum truck, fecal suction truck, feces-absorb truck, sewage suction truck, etc. in China since 2004s. With many years’ developing, Chengli Special Automobile Co., Ltd. could supply 2cbm to 10cbm fecal suction truck, 2cbm-16cbm sewage suction truck, etc. More information, please feel free to contact with Ms. Anita Deng. And the hot sale line is 0086 13329899995.
