Customized ISUZU heavy duty 4*2 LHD 240hp diesel dump tipper trucks for sale

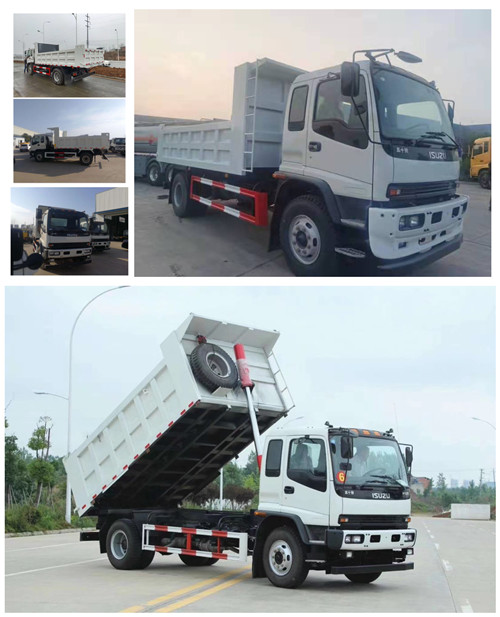

More pictures of ISUZU 10T-15T tipper truck for stone and sand transportation manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! ISUZU 1T-15T tipper truck for sand transportation for sale
Customized ISUZU FVR 15T dump tipper truck for sale, adopts ISUZU FVR one row and a half driver cab with air conditioner and power steering, 4500mm wheelbase, 6HK1-TCNG40 240hp diesel engine, ISUZU MLD 6 speed manual gearbox, 6.3tons front axle/13tons rear axle, 10.00R20 rail tires, etc.
The dimension(L*W*H) of the ISUZU tipper box: 5000*2300*1000(mm).And the overall dimension(L*W*H) of ISUZU FVR dump tipper truck is 7400×2465×2860(mm).
The real loading capacity of ISUZU FVR 240hp diesel dump tipper truck is 15tons.
Main technical parameters of ISUZU brand 4*2 LHD 240hp diesel 15T dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Isuzu 240hp diesel dump tipper truck for sale |
| Drive Type | 4*2, LHD | |
| Loading capacity | About 15tons | |
| Gross Vehicle Weight(kg) | 16000kgs | |
| Curb Weight (kg) | 6800kgs | |
| Overall Dimensions L*W*H(mm) | 7400×2465×2860 | |
| Engine | Engine Model | 6HK1-TCNG40 |
| Fuel Type | Diesel | |
| Power | 177kw/240HP | |
| Emission Standard | Euro Ⅳ | |
| Displacement(ml) | 7790 | |
| Chassis | ChassisBrand | ISUZU |
| Front/Rear Axle Load(KG) | 6000/10000 | |
| Tire No. | 6+1 | |
| Tire Specification | 10.00R20 | |
| Wheelbase (mm) | 4500 | |
| Axle No. | 2 | |
| Gear Box | ISUZU MLD 6 speed manual gearbox | |
| Approach/departure angle | 26/14 | |
| Front/rear suspension(mm) | 1335/1935 | |
| Front/rear tread(mm) | 1960/1855 | |
| Leaf Spring No. | 9/7+7 | |
| Driver cab | s ISUZU FVR one row and a half driver cab with air conditioner and power steering | |
| Tipping system | Box inner dimension(mm) | 5000×2300×800/1000 |
| Box material | Carbon steel,side 4mm,bottom 5mm | |
| Hydraulic cylinder no.(set) | 2 | |
| Hydraulic cylinder position | At the center of the truck bottom | |
| Discharge type | Rear tipping |
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
