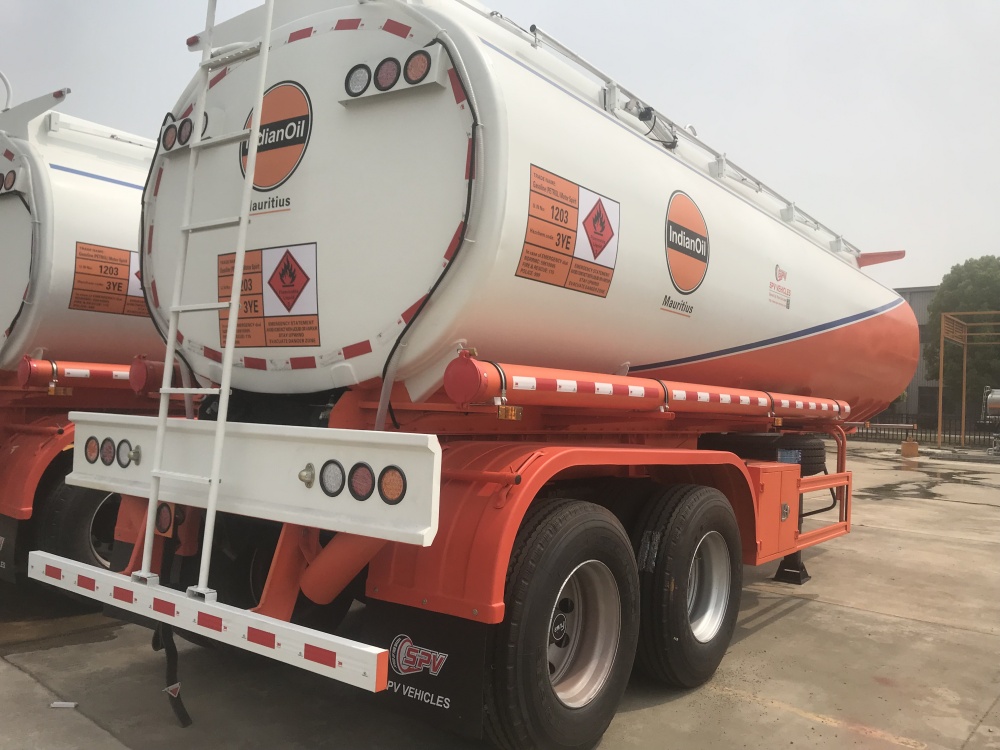

Technical Parameters of 35000 litres 2 axles fuel tank trailer
|
GENERAL DESCRIPTION |
||
|
Vehicle Model |
CLW9401GYY |
|
|
Vehicle Brand |
CLW |
|
|
Overall Dimension |
11250x2500x3600mm |
|
|
GVW./Kerb Weight |
40000Kg./9300Kg. |
|
|
TANK BODY |
||
|
Tank Shape |
Elliptical or rectangular |
|
|
Tank Volume |
33000ltrs~35000ltrs +3% expansion space |
|
|
Compartments |
According to customer’s demand |
|
|
Tank Material |
Carbon Steel |
|
|
End Cover and Baffles |
6mm end covers. One compartment with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move. |
|
|
Outlet Valve |
Size 4” ball valves fixed with cam-lock coupling in the discharge box |
|
|
Manhole |
China standard or Euro standard, with filling opening,pressure relief valve |
|
|
Necessary Accessories |
Top access steel ladder, anti-slip walkway and foldable handrail;spare wheel carriers, a water tank,an anti-static device, 2pcs of fire extinguishers, 2pcs of lockable discharge hose carrier on both sides and reflective tickers etc. |
|
|
Optional |
1.Emergency valve,flow meter, bottom loading system
