12cbm 14cbm dongfeng compressed garbage truck for sale
2023-11-23 21:42:01   source:www.trucksinchina.com    clicks :

Dongfeng 153 garbage compactor truck adopts dongfeng EQ5140KLG chassis. And the truck model is CLW5160ZYS3, adopts rear loading garbage compacting, with the compacting volume of 13.5cbm, the common refuse garbage trucks for sale.

The main parameters of hot sale dongfeng 153 garbage trucks as below


Truck modelCLW5160ZYS3
Product name153 garbage compactor truck
Wheelbase(mm)4500
Overall dimension(L*W*H)(mm)8520*2490*3350



Chassis modelEQ5140KLJ
Curb mass(kg)8795kg
Rated mass(kg)5500kg
Total mass (kg)14490kg



Upper parts main part parameters
Working conditionMain parametersRemark
Van Part dimension4330*2400*1850Common 13.5cbm
Van part materialSide sheet 4mm, bottom sheet 5mmcommon
Drain tanker200L
Filter volume1.2cbm
Filling time8-10s
Filling circling time50-60s/time
Discharging wayFlat push type self-discharging,
Discharging time30-40s
Hydraulic system pressure16MPa
Control wayElectric control with manual control
 reduction ratio1: 0.6-0.8

the main devices parameters

Hydraulic pump5631
Multi-way valvesDL-15B-61
Tilting plate oil cylinder80/45-410*1802
Negative pressure oil cylinder80/45-390*4702
Lift cylinder80/45-900*6602
Shave cylinder80/45-655*4452
Sliding board cylinder100/45-1375*11002
Push pedal cylinderYSTB-1150*2170-(Ⅲ)1
Integrated air valve 1
Electromagnetic valveUZCT-115/24V2
Limit switchJXL19-1112

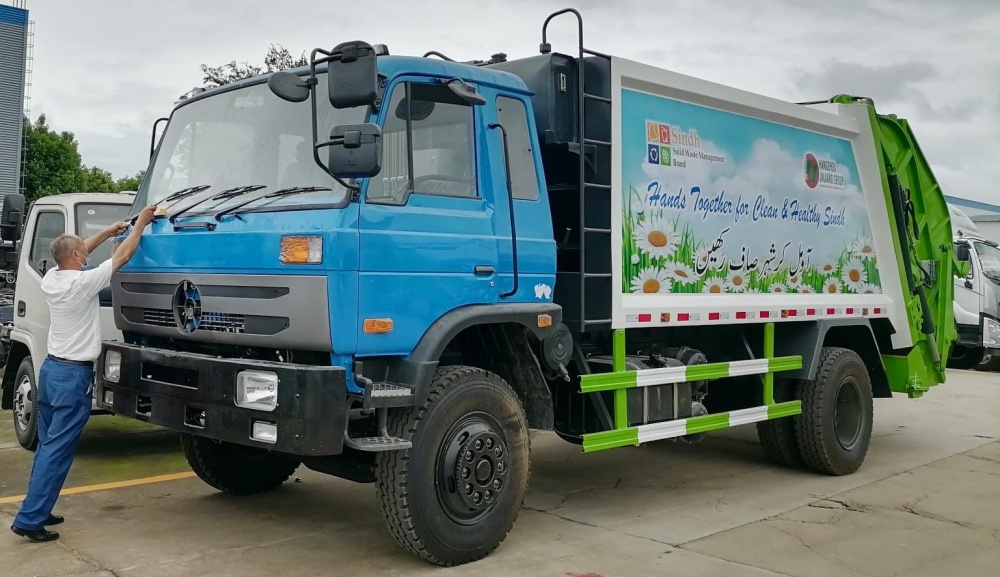

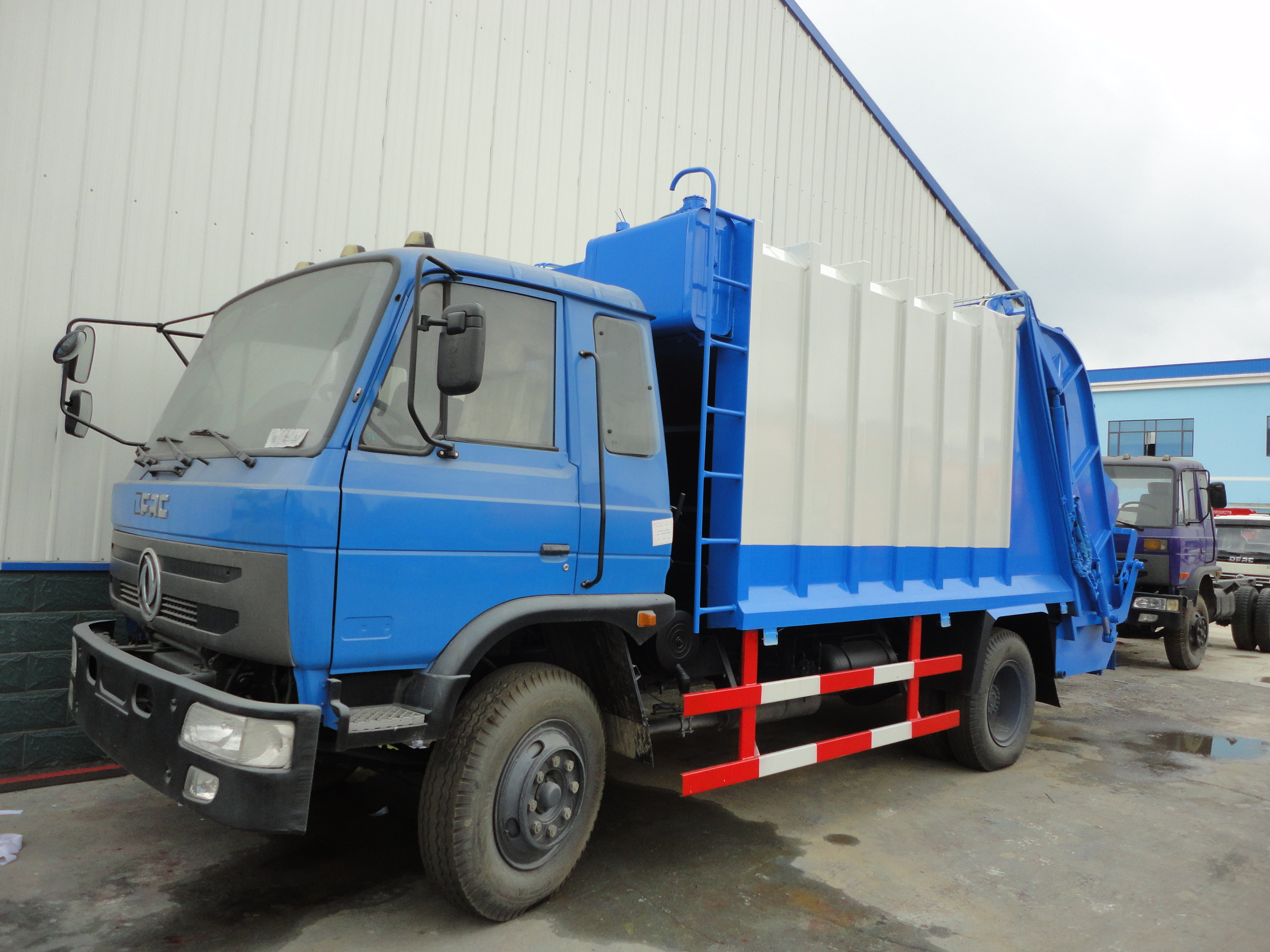

More pictures of dongfeng garbage compactor truck

IMG_0593(20221028-131232)_副本  More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
