| Item | Parameters | |
| Product name | 100cbm LPG storage tanker | |
| Trademark | CLW | |
| Product model | CLW3100-100 | |
| Overall dimension(L*W*H) | mm | 13866*3132*3722 |
| Tanker dimension(inter diameter*thickness*length | mm | DN3100*16*13866 |
| Tank thickness | Mm | 16 |
| End heads thickness | mm | 18 |
| Full volume | m3 | 100 |
| Curb mass | kg | 20410 |
| Rated mass | kg | 39900 |
| Working pressure | Mpa | ≤1.62 |
| Designed pressure | Mpa | 1.77 |
| Density | Kg/cbm | 420 |
| Corrosion allowance | mm | 1 |
| Working temperature | ℃ | ≤50 |
And the assembly includes safety valve pressure gauge, temperature gauge, cut-off valve, and magnetic level gauge, etc.

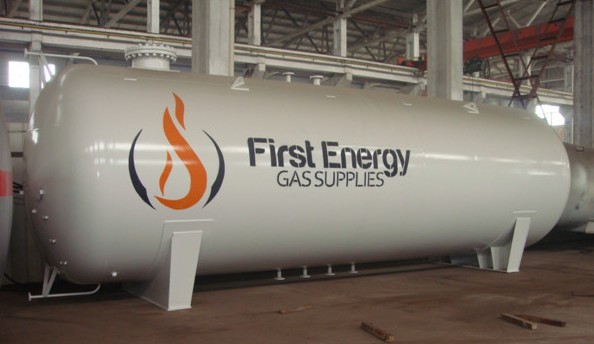

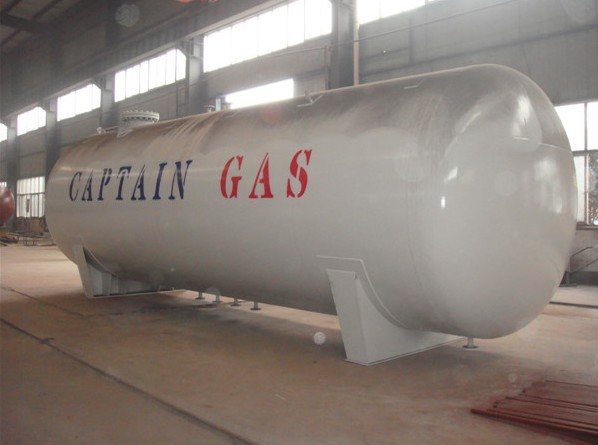

“CLW” brand LPG gas storage tanker manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxy ethane, gasoline, butane, propane, propene, etc.
All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998《steel pressure vessel》, 《Supervision Regulation on Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car》.
