| CLW 50cbm bulk feed tank semitrailer for sale | |||
| Total mass(kg) | 38100 | Tank volume | 45-50cbm |
| Rated mass(kg) | 22375 | Curb mass(kg) | 15725 |
| Approach/departure angle | -/14 | Bearing quality of semitrailer saddle (kg) | 15000 |
| Wheelbase(mm) | 7590+1310+1310 | Front/rear suspension(mm) | -/2290 |
| Overall dimension(L*W*H)(mm) | 10000X2520X4000 | Cargo body dimension(mm) | XX |
| Axle nos. | 3 | Axle load(kg) | -/23100(triple axles) |
| Tyre | 11.00-20 12PR | Tyre nos. | 12 |
| Front/rear tread(mm) | -;1840/1840/1840 | Steel spring | -/8/8/8,-/10/10/10 |
Triple axles 50cbm bulk feed tank semitrailer, adopts 3 sets of FUWA 13ton bridges, 11.00-20 tyre, 28ton outriggers, 90# traction pin, etc.
The bulk feed tank volume of 49.2cbm, adopts high quality 5mm carbon steel, transferring feeds by electronic auger, working with putting on 380volts electronic power. The electronic motor drives the Mechanical auger screw type to discharge with high discharging speed of 0.55ton/min. The Barrel type auger at the tank top is driven by the hydraulic motor, and the electronic bottom control lifting up and down, rotation left and right, with the horizon range of 7.2m and vertical range of 8.2m. So little Residual rate, less than 0.1. And the feed pellet semitrailer can be continuous working, highly improving the working productiveness.
There are three compartments of the feed tank semitrailer, separate compartment with different kinds of feeds. Every unit is with simple structure, easy and flexible operation, easy to maintenance, etc.

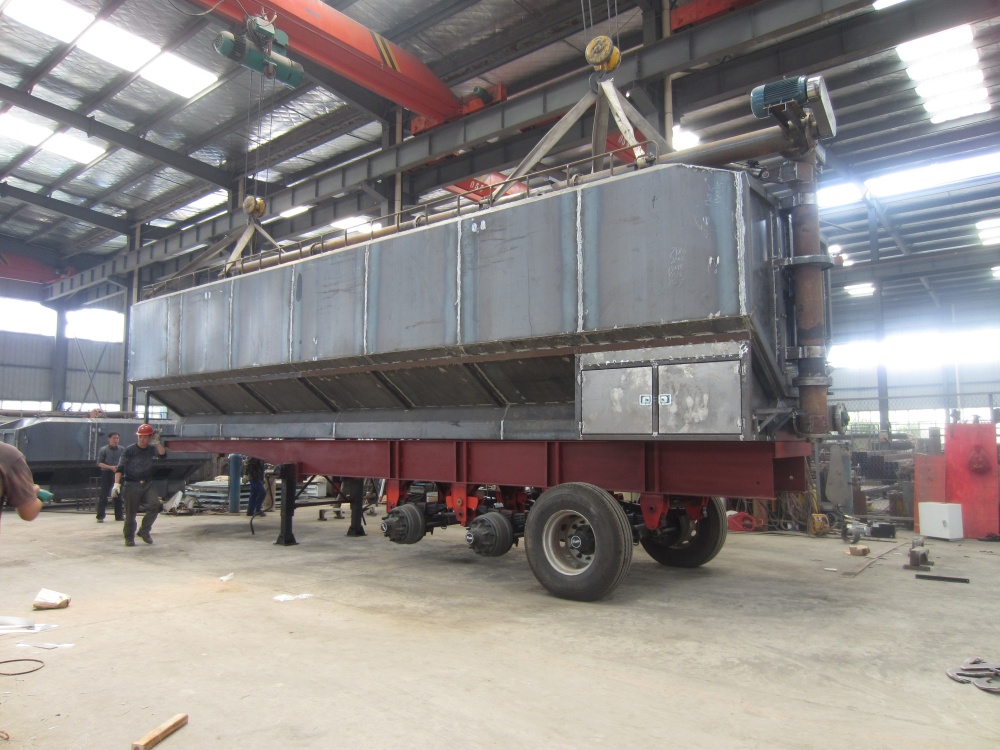

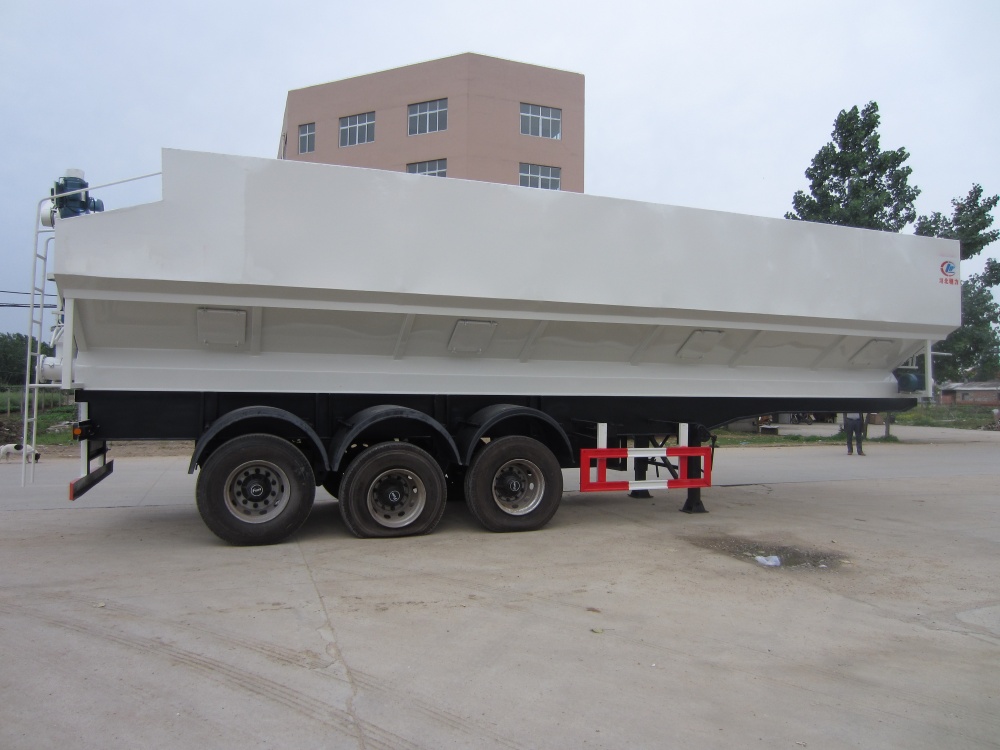

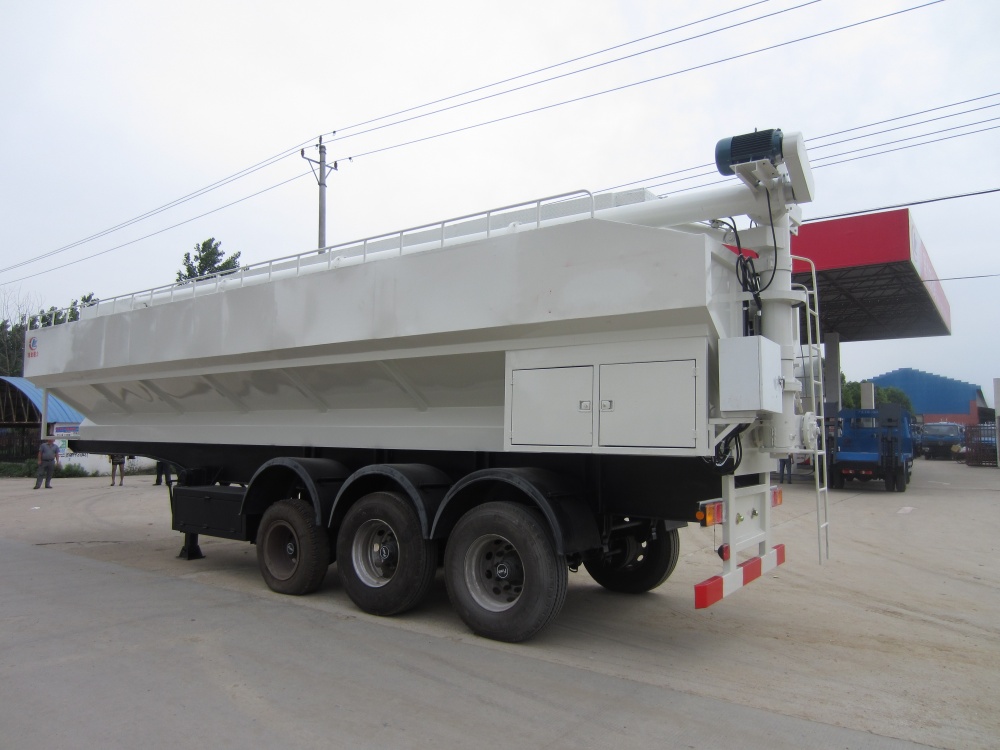

More picture of 3 axles bulk feed semitrailer
High quality and best price CLW brand bulk feed container semitrailer for sale
