Customized SHACMAN brand 6*4 LHD 14T telescopic crane boom mounted on cargo truck for sale,
HOT SALE! SHACMAN brand 6*4 LHD 14T cargo truck with crane boom adopts SHACMAN brand one row and a half driver cab, 6*4 LHD( left hand driving), WP10.340E22 340hp Euro 2 diesel engine, 5775+1400mm wheelbase, RTD-11509C 9 speed manualgearbox, MAN 7.5T front axle/16T MAN dual-grade rear axles, 400L oil tanker, 12.00R20 rail tires, etc.
Client choose to install CLW brand BALONG 14T telescopic crane boom, The loading capacity of 14T telescopic crane boom is 14,000kgs.The working height of the 14T telescopic crane boom is 17.4m; the working radius of the boom is 16.4m.

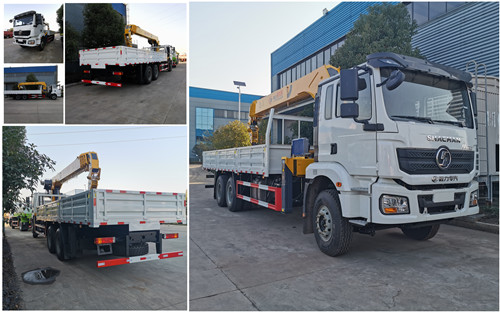

More pictures of SHACMAN brand 6*4 LHD 14T telescopic crane boom mounted on cargo truck is as below.
HOT SALE! SHACMAN brand 6*4 LHD 340hp diesel 14T cargo truck with crane boom for sale
The specification of SHACMAN brand 6*4 LHD 14tons telescopic crane boom mounted on truck as below
| Product name | SHACMAN brand 6*4 LHD 14tons telescopic crane boom mounted on truck for sale | |
| Chassis type | SX1310 | |
| Parameters | Overall dimension length/width/height (mm) | 12000×2550×3920 |
| Cargo body dimension (L*W*H)(mm) | 8500×2450×600 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 14990 (Kg) | |
| Rated mass(kg) | 9880,9815 (Kg) | |
| Approach angle/ Departure angle(mm) | 16/9 (°) | |
| Front suspension/rear suspension(mm) | 1525/3300 | |
| Fuel Type | diesel | |
| Max Speed | 89 | |
| Engine | Type | WP10.340E22 |
| Displacement/Power(kw) | 9726ml/250KW/340hp | |
| Manufacturer | WEICHAI | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5775+1400 | |
| Tread(front/rear) | 2011; 1860/1860 (mm) | |
| Transmission | RTD-11509C 9 speed manual gearbox | |
| Braking system | Air braking | |
| Cab | SHACMAN M3000 luxurious driver cab | |
| Number of spring axle(front/rear) | 10/12 | |
| Tire Type | 12.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8500×2450×600 |
| Material | Carbon steel | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW BALONG 14tons telescopic 5 sections knuckle crane boom | |
| Max lifting height | 17.4m | |
| Max Working radius | 16.4m | |
| Installation space | 1.4m | |
| Crane mass | 4800kgs | |
| The color of the whole truck is upon request. Choose to install double rear ladders. | ||
