Hot sale Dongfeng sewage suction truck, adopts dongfeng 153 original chassis, flathead blue driver cab, 4700mm wheelbase,Euro 3/Euro 4 deisel engine,etc. The sludge tanker volume: 10-12cbm, adopting Wuagng high quality carbon steel sheets, equipping with big power special vacuum sewage suction pump. And the special parts are made up of vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.
Dongfeng sewage suction truck is just suitable for sucking, transport and discharging all kinds liquid or half liquid， such as sewer, septic pool, swill, slops, feces and 8mm stones, etc.
main technical parameters of 12cbm dongfeng vacuum sludge tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Dongfeng 153 10-12cbm Sewage suction truck for sale |
| Drive Type | 4*2 | |
| Gross Vehicle Weight(kg) | 15990 | |
| Curb Weight (kg) | 6795 | |
| Rated mass(kg) | 9000 | |
| Overall Dimensions L*W*H(mm) | 7700×2490×3250 | |
| Engine | Engine Model | YC6J180-42 |
| Engine Brand | Yuchai | |
| Fuel Type | Diesel | |
| Power | 118kw/140HP | |
| Emission Standard | Euro 4 | |
| Displacement(ml) | 4260 | |
| Engine Type | 4 strokes, 6 cylinders water-cooling, inter-cooling electronic jetting diesel engine | |
| Chassis | Chassis Brand | Dongfeng |
| Front/Rear Axle Load(KG) | 5995/9995 | |
| Tire No. | 6 | |
| Tire Specification | 10.00-20-16 | |
| Wheelbase (mm) | 4700 | |
| Axle No. | 2 | |
| Gear Box | 6 speed transmission, manual | |
| Steering Wheel | left hand drive,right hand drive is optional | |
| Bridge | 5ton front bridge, 10ton rear bridge | |
| Sucking System | Tank Volume(L) | 10000l-12000L |
| Tank shape | Cylindrical | |
| Tank Material | 5mm thick carbon steel | |
| Vacuum Pump | CLW vacuum pump | |
| Suction Depth(m) | More than 6 meter | |
| Tank Tipping angle(°) | More than 45 | |
| Rear door | Open and closed by hydraulic cylinders | |
| Remark | Sewage suction truck is made up of truck chassis, vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, sludge tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, steering: clockwise, full discharging time <8min | |

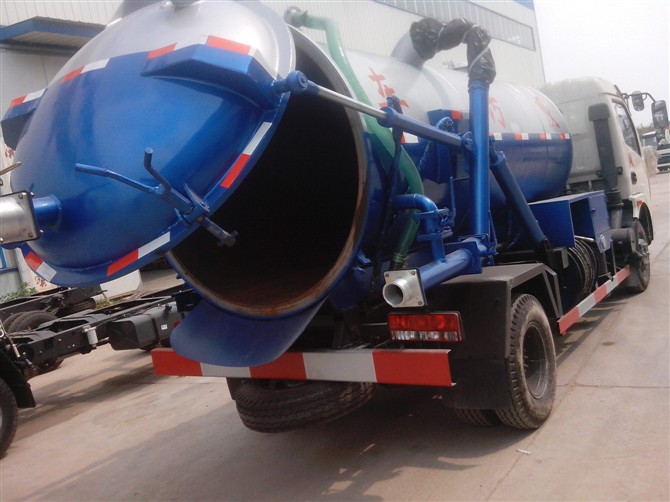

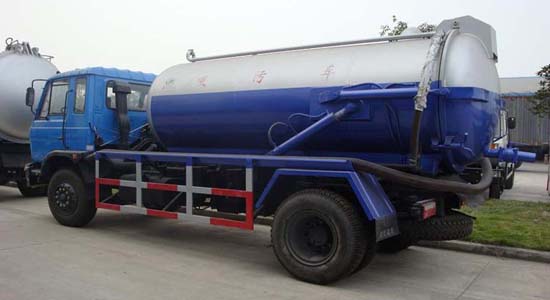

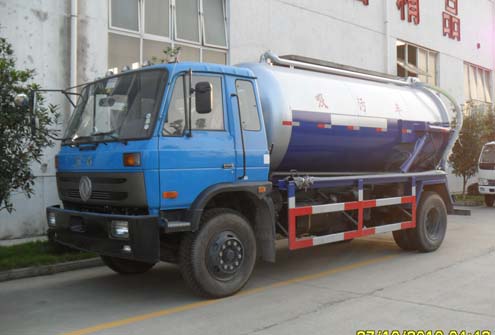

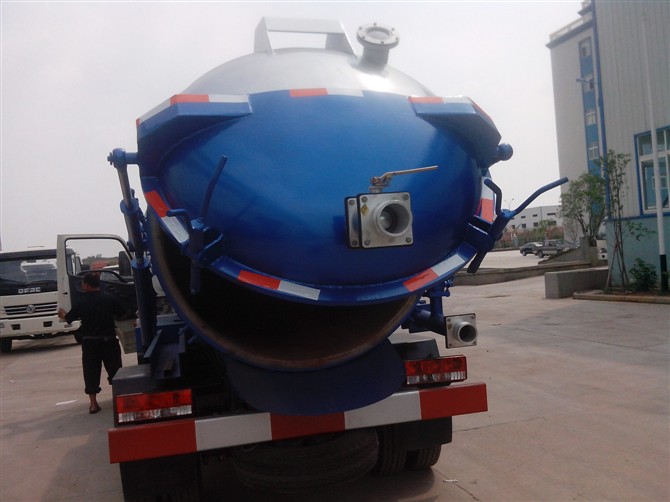

More pictures of hot sale exported model of dongfeng 153 sewage suction truck
More information, please feel free to contact with Ms. Anita Deng.
