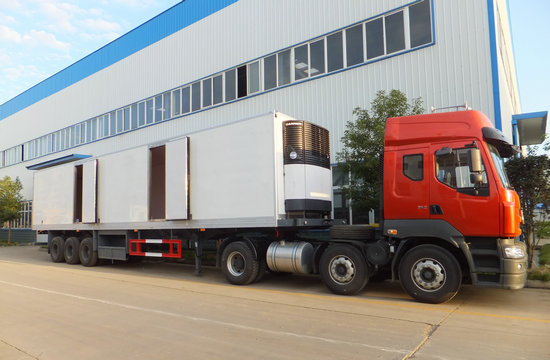

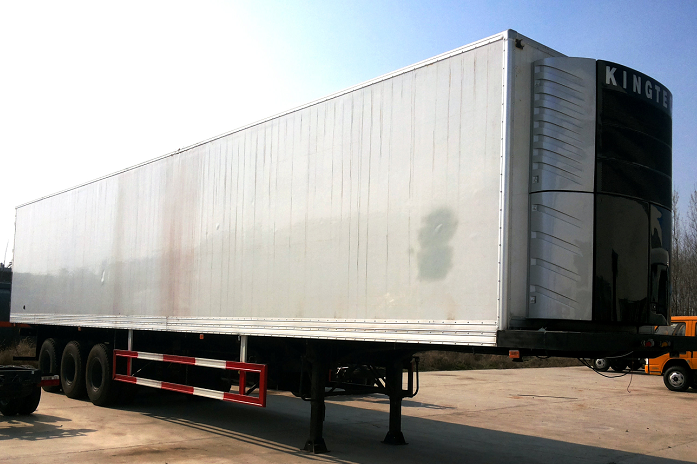

13.8m refrigerated container semitrailer adopts 13ton FUWA triple axle, 11.00 tyre, 90 tracting pin. And the insulation body is with the dimension of 13820X2330X2410 (mm) , the van volume of 76cbm.

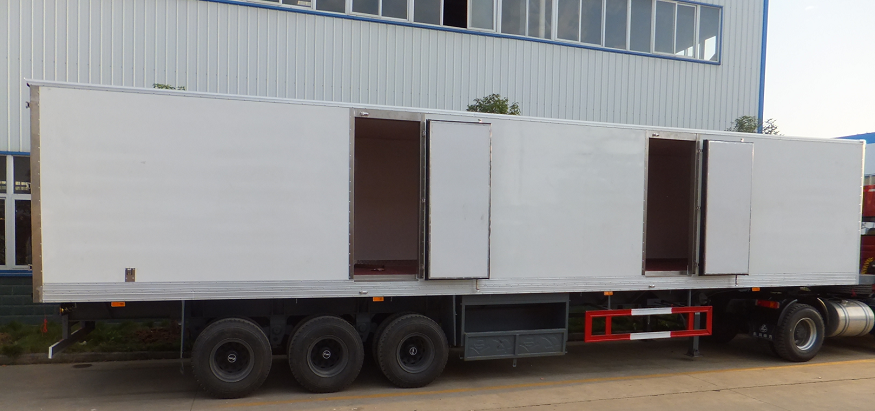

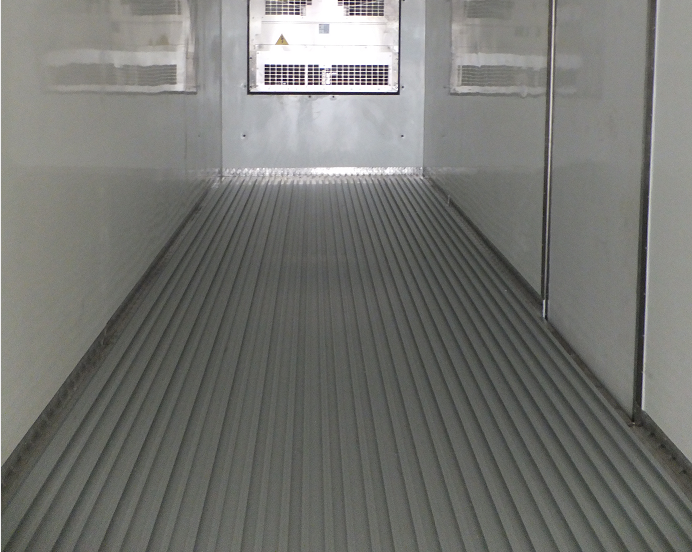

13.8m refrigerated container trailer adopts high quality fiberglass for exterior and interior van sheets. And the middle insulation material is 100mm PU foam. The refrigerated semitrailer can choose side doors. The interior van installed aluminum alloy channel to make sure the Air circulation. The van edge adopts aluminum alloy material. Door frame and lock units adopt stainless steel units. The refrigerated semitrailer adopts USA Carrier cooling unit. The lowest temperature can reach 15 degree below zero, adjusted by thermostat freely, meeting different temperature for goods.
| CLW9400XLC reefer van semitrailer main parameters | |||
| Product name | CLW9400XLC refrigerated trailer | Overall dimension(L*W**H) | 14600X2550X4000(mm) |
| Total mass | 40000 (kg) | Cargo body dimension (L*W*H) | 13820X2330X2410 (mm) |
| Rarted mass | 30000(kg) | Approach/departure angle | -/12(°) |
| Curb mass | 10000(kg) | Front/rear suspension | -/2600(mm) |
| Axle nos. | 3 | Front/rear tread | -;1840/1840/1840(mm) |
| wheelbase | 7980+1310+1310(mm) | Steel spring | -/10/10/10,-/7/7/7 |
| Axle load | -/36000(triple axle ) | ||
| Remark | The refrigerated van top cannot open, fully sealed. And choosing to install side doors. CLW refrigerated semitrailer is for high road driving. | ||
The refrigerated van truck of Chengli Special Automobile Co., Ltd. is at the high end. The van sheet is adopting the leading 16m length hydraulic veneer press one-formed casting.
The exterior and interior van materials choose the high quality glass steel plate; the medium is PU foam insulation materials. The sides is glued together by the natural resin, like a sealed plates, and fastened by the high strength screws when piecing. And also there is more layers high quality rock wool, making sure the insulation and the stability. The van frames are edged with aluminum alloy, the fittings adopts stainless steel material.
The whole van truck is with handsome looking, long lifetime (2 times of the other refrigerated van), A grade insulation standard. Comparing to the other common refrigerated van trucks, the fixedness and airtight is the best; lighter mass, strong dent resistance, non-leakage, etc.
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita Deng.
