Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water truck, water tank, water tank trailer, etc. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could supply dongfeng water truck, ISUZU water truck, FAW water truck, HOWO water truck, forland water trucks, foton water truck, North Benz water truck, etc. More information, please feel free to contact with us.
main technical parameters of dongfeng water tanker vehicle is as below.
| Main parameters | |||
| Product name | 22cbm-25cbm water truck for sale | ||
| Total mass(Kg) | 31000 | Tank volume(m3) | 22cbm |
| Rated mass(Kg) | 20860 | Overall dimension(L*W*H)(mm) | 11500×2500×3700 |
| Curb mass(Kg) | 10010 | Max speed (km/h) | 90 |
| Driver cab person | Like Dongfeng Kinland luxurious driver cab with 2 person seated with air-conditioner | Front/rear suspension(mm) | 1480/2970 |
| Approach/departure angle(°) | 15/11 | Axle load(kg) | 6500/6500/18000 |
| Axle nos. | 4 | Wheelbase(mm) | 1850+3900+13000 |
| Bridge | 5ton front bridge/13ton rear bridge | Transmission | Fastgear 9 speed transmission |
| Chassis main parameters | |||
| Chassis model | EQ1310VFJ | Manufacturer | Dongfeng company |
| Approach/departure angle (°) | 19/20,19/19 | Tyre specification | 11.00R20*12 |
| Steel spring | 9/9/10 | Front tread(mm) | 2050/2050,1980/1980 |
| Fuel type | Diesel | Rear tread(mm) | 1860/1860 |
| Emission standard | Euro 4 | ||
| Engine model | Manufacturer | displacement(ml) | Power (Kw) |
|
ISC8.3-292E40A |
Cummins |
8300 |
215 |
| Engine type | Cummins 6 cylinders inter-cooling in line Euro 4 diesel engine | ||
| Functions | Dongfeng water truck, adopts front,rear, side sprinkler (sprinkling width>14m );installed rear working platform with water cannon can be turned all round (range>28m), can be adjusted into flinging, heavy rain, light rain, drizzle model with security barrier,etc. | ||

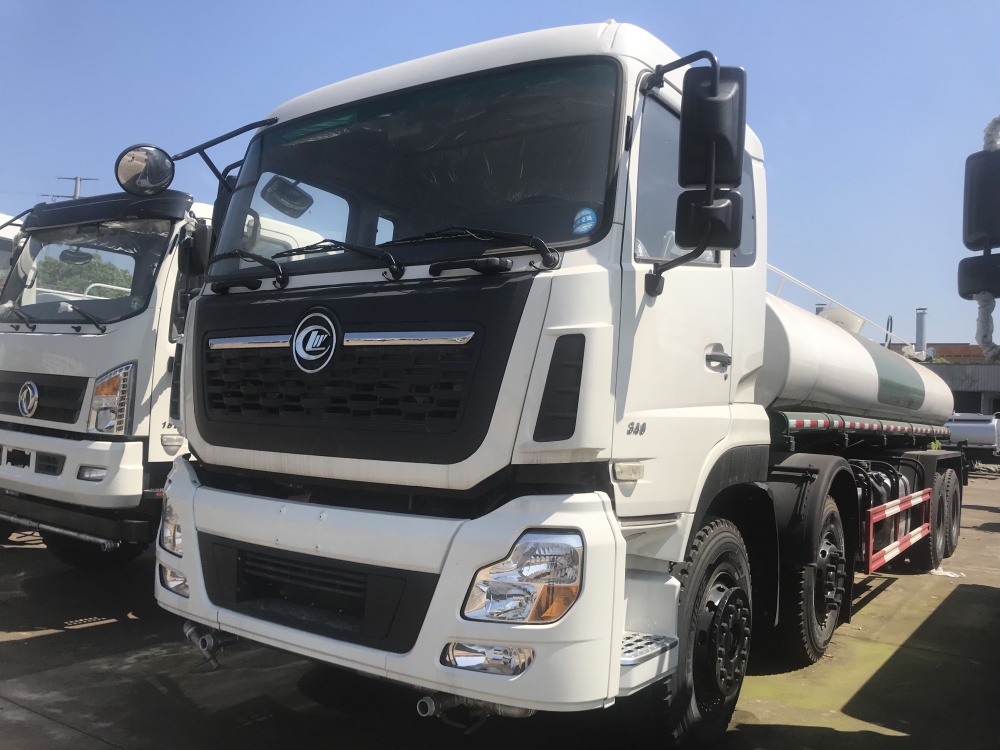

More pictures of 22KL 25KL water tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
However, after we buy the water truck, how to operate it well and how to maintain the water trucks?
a. when using dongfeng water truck sucking water from river, pool, etc. pay attention to make the whole absorption tube opening into water. Avoiding sucking stone or much mud, etc. usually the tube opening has filter device, remove the filter device when sucking water. If the there is small water, we need to dig the sucking place much to make sure without junk and air. The water pump of different Dongfeng water trucks requires different water source, such as clarified water pump asks the water source without any junk, and turbid water pump asks for the water without stone and much silt.
b. When using Centrifugal pump, we must draw somw water to the pump, after that must switch the filter cap. When using self-priming pump, first add some water, then no need to draw water again.
c. When sucking water, we must keep the intake pipe system vacuity, then the water could be sucked into water box. Intake pipe system must be sealed solidly. The hose cannot be damaged, and the tube cannot be flaw, otherwise it would be leak air, then cannot suck into water.
d. We must stop the PTO device when stop the dongfeng water truck not only before sucking but also after sucking.
e. When winter coming, we must drain the water of pump and water pipe, avoiding bursting.
f. Dongfeng water truck’s front spray head place is lower, near the ground, the spraying pressure is bigger, so it can be used to wash the ground. And the rear spray head is higher( dongfeng water truck rear spray head usually has two for left and right side), the spraying area is wider, so it could be used road construction sprinkling. When using the rear sprayer, we should shut the front sprayer. When using the adjustable sprayer sprinkling, the sprinkling area could be adjustable upon request. The sprinkling area is wider, the middle overlap is smaller, the sprinkling density is much more even.
g. When using, we must usually lubricated every drive assembly lubricated part, and tighten every joint.
h. The water tank of Dongfeng water truck has blow-off pipe, the pie intake opening is the water tank lowest point. After using some time, we must usually open the blow-off pipe power switch, drain the junks until the water clear.
