The price of the LPG gas storage tanks for liquid ammonia
| Main parameters | Volume m3 | DN | Thickness | Mass(Kg) | Overall dimension (L*W*H) | ||
| Tank | End heads | tank | Rated mass | ||||
| Loading medium： liquid ammonia; corrosion allowance：2mm; designed pressure：2.05Mpa; Medium density：520Kg/m3 | 20 | 2100 | 16 | 16 | 6400 | 9880 | 6162*2132*2710 |
| 25 | 2100 | 16 | 16 | 7760 | 12350 | 7760*2132*2710 | |
| 32 | 2400 | 16 | 18 | 8920 | 15808 | 7516*2432*3010 | |
| 50 | 2400 | 16 | 18 | 13100 | 24700 | 11516*2432*3010 | |
| 50 | 2800 | 20 | 20 | 14470 | 24700 | 12520*2840*3420 | |
| 80 | 2800 | 20 | 20 | 20980 | 39520 | 16740*2432*3420 | |
| 100 | 2800 | 20 | 20 | 26010 | 49400 | 16740*2840*3420 | |
| 100 | 3200 | 22 | 22 | 26190 | 49400 | 13024*3244*3830 | |
| Tank and main Material pressure components | Q345R、16Mnlll | ||||||
| Standard | <>,<> | ||||||
| Chosen assembly | Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc. | ||||||

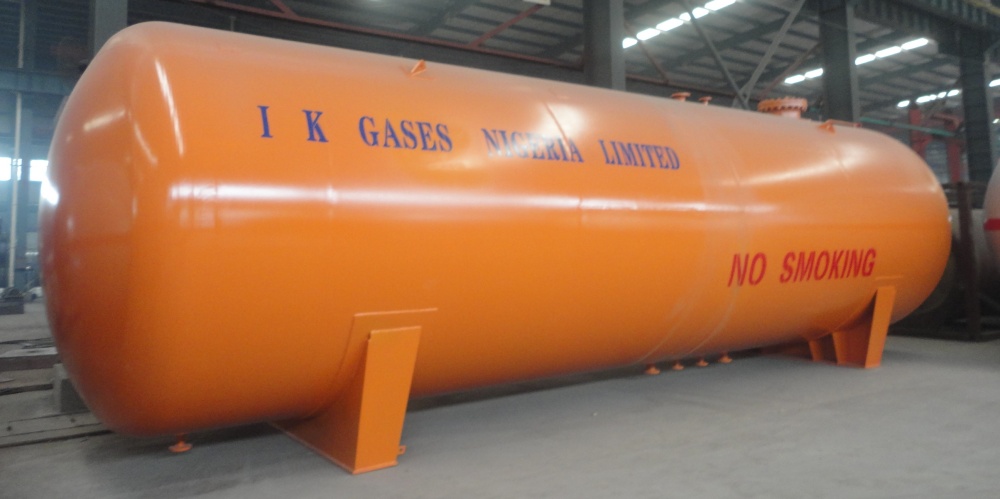

The LPG gas storage tanks manufactured by Chengli Special Automobile Co., Ltd. are horizontal type. 1000L liquid can take place of above 100 sets cylinders for LPG gas. And the LPG gas storage tanks can be used to storage several characters middle-low pressure common temperature LPG gas, such as liquefied petroleum gas (propane), propene, liquid ammonia, dimethyl ether, methyl alcohol, butadiene, isobutene, epoxyethane, aminomethane, etc.
CLW LPG gas storage tanks are widely used for small, medium and large LPG gas stations. Easy to install and small occupation area, CLW LPG gas storage tanks are the perfect ones for storage and supplying LPG gas.
CLW LPG gas storage tanks adopts the leading technical, with perfect structure, long lifetime, flexible operation and easy to maintenance.
