Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG gas semitrailer and LPG gas storage tank, etc. And the LPG gas semitrailer tank volume is from 40000L to 60000L. And the loading medium can be propane, liquid ammonia, propene, dimethyl ether, isobutane, etc. More information, please feel free to contact with us.

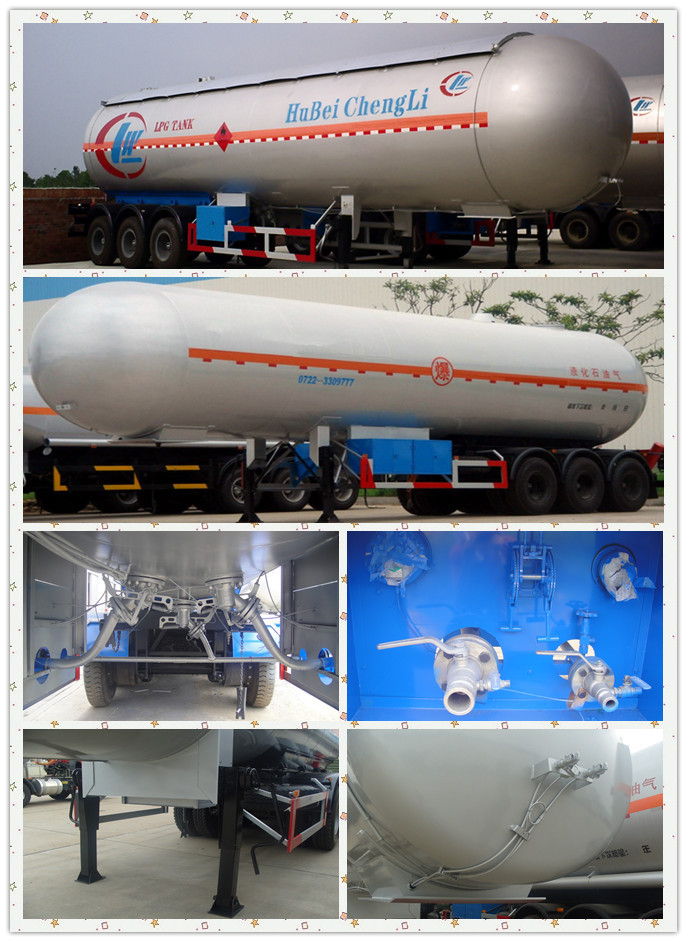

“CLW” brand LPG storage semitrailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc.
All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998>,>.
Bulk lpg transportation 100cbm lpg bulk lpg pressure vessel good quality lpg bulk transporter carbon lpg tank
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3Cauthentication.We can produce various kinds of lpg trcuks, lpg gas trailer, and lpg gas storage tank, etc.
1. The biggest LPG truck's valid volume is35.5cbm
2. The biggest LPG trailer's valid volume is58.5cbm; low transport costs, more profit.
3. Our LPG storage tank is ranged from10cbm to 100cbm, both ground and underground.
| Item | Specification |
| Semi trailer Model | CLW9404GYQ LPG gas semitrailer for liquid ammonia for sale |
| Tank Capacity(L) | 49 |
| Loading Medium | LPG gas liquid ammonia |
| Design Pressure(MPa) | 1.91 |
| Max Allowed Pressure(MPa) | 1.91 |
| Design Temperature(degree Celsius) | 50 |
| Overall Dimension(mm) | 12500*2500*3990 |
| Tank Material | Q370R |
| Gross Vehicle Weight(kg) | 40000 |
| Payload(kg) | 25970 |
| Curb Weight(kg) | 14030 |
| Axle No. | 3 |
| Axle Specification | 13T FUWA axle OR BPW |
| Wheelbase(mm) | 6800+1310+1310 |
| Landing Gear | 28T FUWA or JOST |
| King Pin | 2.5’’ ,3.5’’ is optional |
| Tire Specification | 12.00R22.5 12PR |
| Tire Number | 12 tires |
| Leaf Spring No. | -/7/7/7 |
| Axle Load(kg) | -/24000(parallel installed) |
| Main basic equipments | 1. Tank material: Q370 R ,thickness 13.5mm, two Ellipsoidal head cover, thickness 9mm ,design pressure: 1.91Mpa ,design Temperature: 50°C |
| 2. Equipped with 13ton BPW axle, 28ton JOST outrigger, 90# JOST King pin, | |
| 3. Equipped with two valve boxes, two tool boxes, safety valve, thermometer, pressure gauge, emergency shut-off valve, fire extinguisher, anti-static ground tape, two side loading & unloading ,one independent liquid outlet |
