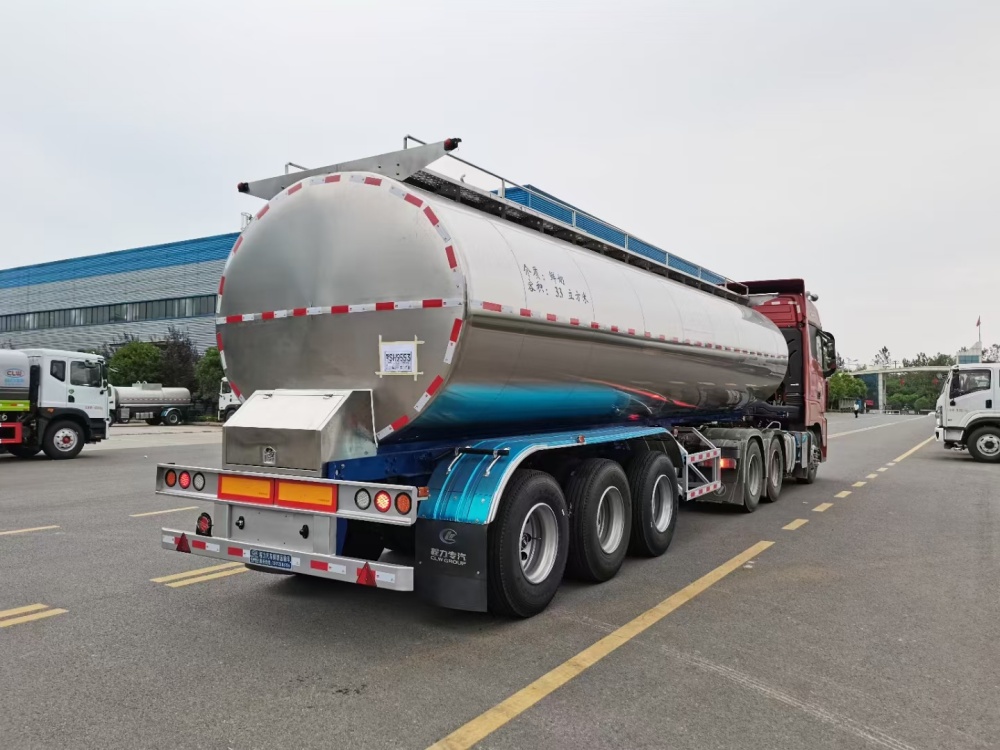

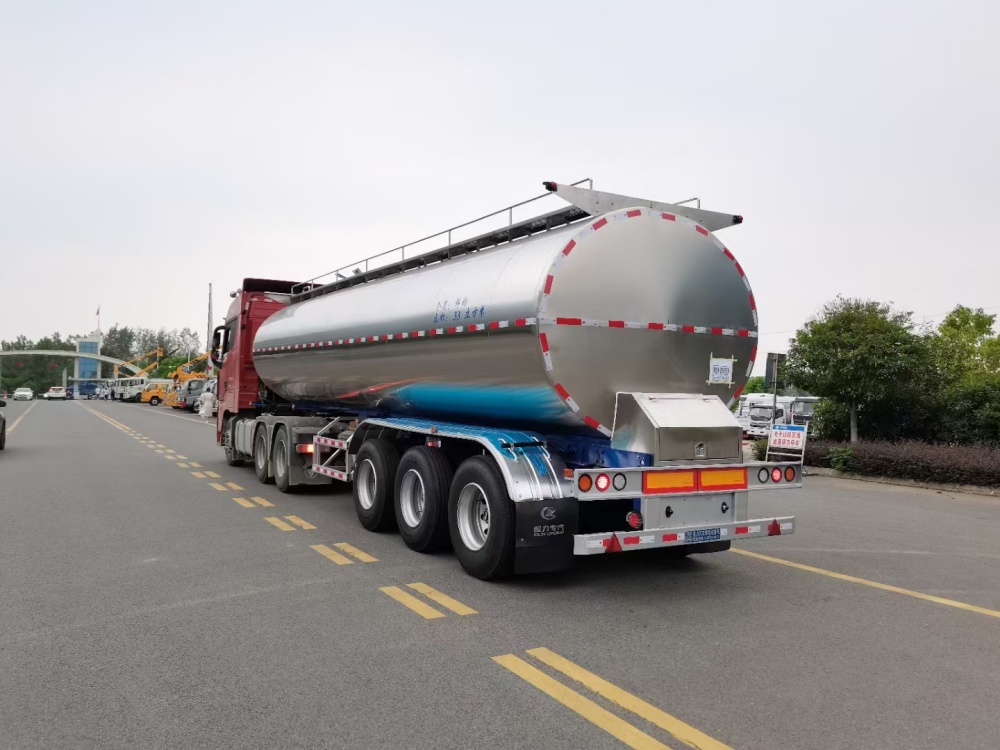

| 40000L-50000L milk tank trailer for sales | |
| Capacity | 40000L-50000L |
| Curb Weight | 8200Kg |
| Pay Load | 65000KG |
| Total Weight | 40000Kg |
| Overall Length | 12600mm |
| Overall Width | 2500mm |
| Overall height | 3850mm |
| Wheel base | 6850+1310+1310 |
| Tank body material | 5mm Q304 Stainless steel |
| End plate | 5mm Q304 Stainless steel |
| Manhole cover | 2 sets with 2 breather valve,,stainless steel manhold cover |
| Bottom valve | 1 set SS bottom valve |
| Discharging valve | 2 set discharging valve in the behind of tank |
| Discharging pipe | 2 pcs polythene hose ,8m long |
| Chassis | |
| Main Beams | Special design I beam,connected by bolts and nuts with tank body,removable from tank body for spearate transportation |
| Axle | 3 alxes |
| FUWA 13TON | |
| Landing gear | JOST brand ,two speed,manual operating ,heavy duty lading gear |
The volume of the milk tanker semi-trailer is 40-45cbm, with 5 components. The outer layer with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP(cleaning device) installed for the five rooms.
There are three layers of the tanker semi-trailer, the inner tanker is manufactured by 5mm thick 304/2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed one degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel.
The inner tanker has cleaning device, cleaning rod(cleaning ball), cleaning pipe(with the diameter of 38mm), turntable cleaning sprayer, etc. Automatically cleaning when with water source.
