Chengli Special Automobile Co. Ltd. is the leading manufacturer and supplier of refrigerated truck, refrigerator van ruck, insulaton body truck, freezer van box truck, ice-cream box truck, etc. in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. could produce ISUZU refrigerated truck, dongfeng refrigerated truck, Foton freezer van truck, Chang'an mini ice-cream truck, FAW refrigerator truck, HOWO reefer van truck, refrigeated van semitrailer, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
| General Parameters | |

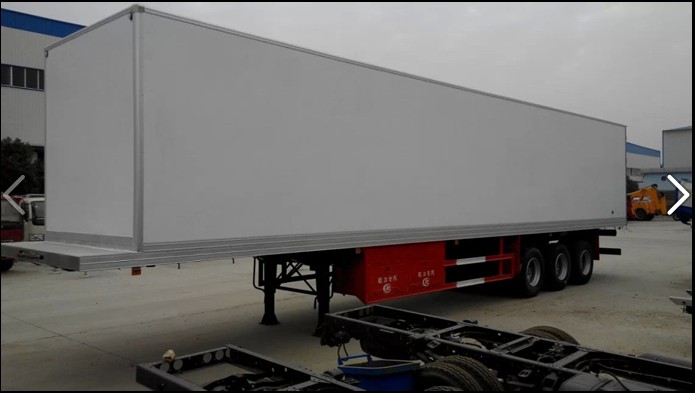

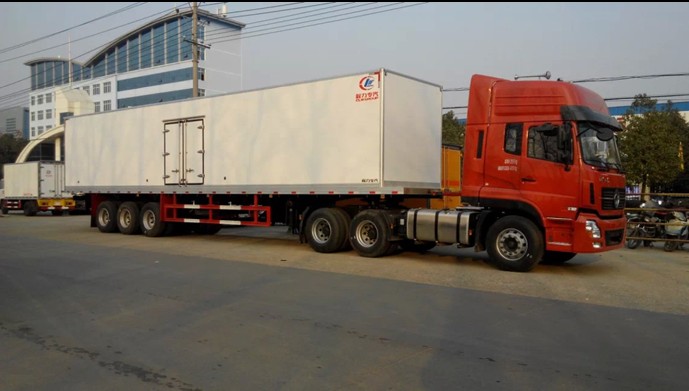

| Truck Name | Refrigerator van semi trailer |
| Gross Vehicle Weight(kg) | 40000 |
| Fact Loading (kg) | 40000 |
| Rated mass(kg) | 30000 |
| Curb mass(kg) | 10000 |
| Overall Dimensions L*W*H(mm) | 14600×2550×4000 |
| Running Gear Parameters | |
| Axle No. | 3 nos |
| Axle Spec. | 13 ton FUWA axle, BPW is optional |
| Landing leg | 28ton FUWA landing leg,JOST is optional |
| Tire No. | 12 |
| Tire Specification | 11.00-20 12PR |
| Suspension | Steel spring leaves, air suspension is optional |
| Refrigerator Container Parameters | |
| Box inner dimension(mm) | 13820x2330x2410 |
| Box Material | Fiberglass,color plate,stainless steel, aluminum alloy are optional |
| Doors | Side door and rear double-door are optional |
| Refrigeration Unit Parameters | |
| Refrigeration unit | America Carrier, America thermo king |
| Refrigerated temperature | -16°,-18°, |
