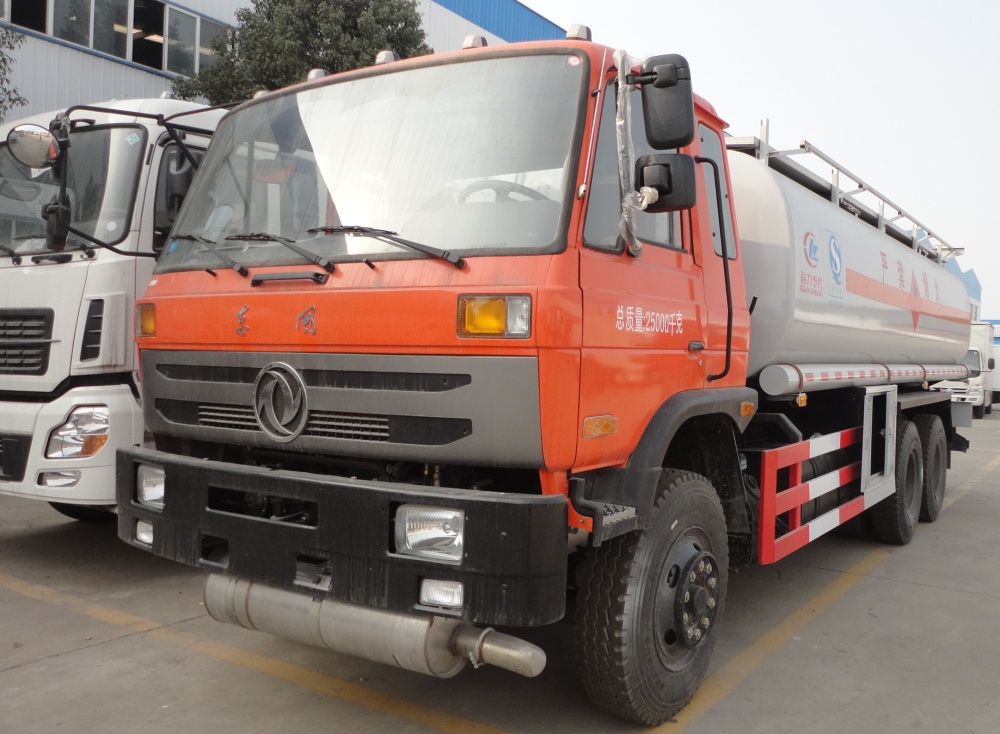

dongfeng 6*4 23000L dongfeng double rear axles oil truck
high quality and best price dongfeng oil tanker vehicle for sale
Our refuelling tender is consist of chassis, oil tank, refuelling machine, oil pipe winch reel, oil pump, operation system, fire extinguishier, pressure vent valve, flameproof enclosure, antistatic device,etc.
As a professional special vehicle manufacturer,CLW refuelling tender have some advantages, our tank utilize the high quality steel and with built-in anti-wave board to reduce the impact force and keep it smooth during transportation.
1.Our refuelling truck equipped with famous refuelling machine
2. Our refuelling truck equipped with speed limiter to control speed to 80km/h
3. Our refuelling truck equipped with famous oil pump, good quality
4. Our refuelling truck really factory sale, best price and servise
5. Our refuelling tuck are with ISO and 3C certification
6. Tank material is 5mm carbon steel.
Main Technical Parameter | |||
Product Name | 23000L Oil Tank Truck | Gross Vehicle Weight (kg) | 25000 |
Curb Weight (kg) | 9805 | Cab Allowed Persons | 3 |
Axle No. | 3 | Wheelbase (mm) | 4350+1300 |
App/Dep Angle(º) | 27/12 | Axle Load(kg) | 7000/18000(Parallel Installed) |
F/R Suspension(mm) | 1245/2805 | Overall Dimension(mm) | 9700x2490x3450 |
Chassis Technical Parameter | |||
Chassis Model | EQ1258KB3GJ | Chassis Name | Truck Chassis |
Chassis Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co.,Ltd |
Overall Dimension (mm) | 9360×2462×2880 | Tyre No. | 10with 1 spare tyre |
App./ Dep. Angle(º) | 32/14 | Tyre Spec. | 10.00-20 |
Leaf Spring No. | 8/13 | Front Track (mm) | 1940 |
Fuel Type | Diesel | Rear Track (mm) | 1860/1860 |
Drive Type | 6x4 | Brake System | Air brake |
F/R Suspension(mm) | 1245/2465 | Axle Load(kg) | 7000/18000(parallel installed) |
Engine Technical Parameter | |||
Engine Model | B210 33 | Emission Standard | Euro III |
Displacement ( ml ) | 5900 | Power | 155kw/210hp |
Superstructure Parameter | |||
Tank Capacity(L) | 23,000 | Tank Thickness(mm) | 5.0 |
Head Thickness(mm) | 6.0 | Tank Material | Carbon Steel |
Remarks:*** Basic equipments: PTO, gravity-discharge valve,hose, access ladder, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers etc. ***Optional: ABS, Gear Pump, Refueling machine,emergency valve, flow meter, nozzle, compartment quantity; epoxy coating inside the tanker; Tank material: carbon steel, stainless steel, aluminums alloy….. Bottom loading system….. | |||
