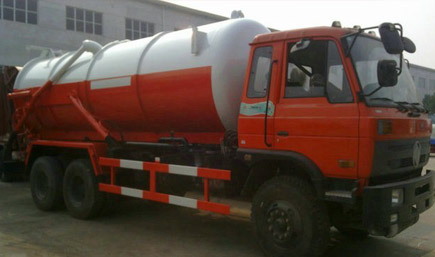

Vacuum sewer and high pressure cleaning truck is a dual-function truck of sewer vacuum suction and high pressure cleaning. It mainly used for suction, septic tank and sludge from drains, transportation and discharge of sewage from septic tank and sludge from drains.And also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.
Basic Equipment of sewer jetting vehicle for sales
PTO, Vacuum Pump, High Pressure Pump, Hydraulic Slave, Gear Pump,Hydraulic Cylinders,Multi-way valve, Pressure Gauge,Water-gas Seperator , Oil-gas Seperator, Level Inspection Window, Suction Hose, Hose Real,etc.
|
[Main Technical Parameters] |
|||
|
Product Name |
Tank Capacity(m3) |
13.0 |
|
|
Gross Vehicle Weight(Kg) |
24700 |
Curb Weight(Kg) |
8040 |
|
Cab Allowed Persons |
3 |
Steering Wheel |
LHD |
|
Appr/Dep Angle(°) |
28/15 |
F/R Suspension(mm) |
1245/2705 |
|
Axle No. |
3 |
Wheelbase(mm) |
4350+1300,4750+1300 |
|
Axle Load(Kg) |
6700/18000(Parallel Installed) |
Max Speed(Km/h) |
85 |
|
Others |
1. There are one sewage tank and one clean water tank. 2. Equipped with Italy high pressure pump and Spain Vacuum Pump. 3. Tank material is high quality carbon steel and the thickness is 6mm |
||
|
[Chassis Technical Parameters] |
|||
|
Chassis Model |
EQ5253GFJ2 |
Chassis Brand |
Dongfeng |
|
Appr/Dep Angle(°) |
28/15 |
Tyre No. |
10 |
|
Spring Leaf No. |
9/10 |
Tyre Specification |
10.00-20 |
|
Front Track(mm) |
1940 |
Rear Track(mm) |
1860/1860 |
|
Fuel Type |
Diesel |
Emission Standard |
EuroⅢ |
|
Engine Model |
YC6A240-33 |
Engine Brand |
YUCHAI |
|
Power(kw) |
177 |
Displacement(ml) |
7255 |
