Main Technical Parameter | |||
Product Model | DONGFENG Mobile Refueling Tanker | Overall Dimension(L*W*H) | 5990×1960×2400(mm) |
Fact Cubage (L) | 5300 | Tank Dimension(mm) | 3100×1750×1150 |
Gross weight (kg) | Approx 6495 | Approach/ departure angle (° ) | 18/12 |
Cab Type | Single row, flat proof | Cab capacity | 2 |
Curb weight(kg) | 3365 | Max Speed (km/h) | 80 |
Chassis Technical Parameter | |||
Chassis Model: | EQ1060TJ20D3 | Chassis Manufacturer: | Dongfeng Automobile Co., Ltd |
Brake System | Air brake | Transmission type: | Manual with 5 shift |
Front/ rear suspension(mm) | 1032/1658 | Leaf Spring number: | 8/9+5,6/8+4 |
Axle number | 2 | Front/Rear axle load(Kg) | 2480/4015 |
Wheelbase(mm) | 3300 | Front/Rear tread(mm) | 1506/1466 |
Tire size | 7.00-16 | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | CY4102-C3F | Engine Brand | DongFeng ChaoYang Diesel Co., Ltd |
Emission stand | Euro 3 | Displacement(ml) | 3856 |
Fuel type: | Diesel | Power(kw) | 70/95hp |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. 24V Electric system, electrically hydraulic operation control | ||
2.Material:4mm carbon steel or stainless steel | |||
3. Tank can be separated to several unattached small storehouse to fill different kinds of fuels ( gasoline ,diesel, etc) | |||
4. Equipped with Stainless steel fuel pump, Anti-discharge valve, Pipeline,fire extinguisher, ladder, 20m reel, ground wire | |||
5. Equipped with SKDS-2001A(optional other brand) refueling aircraft, refueling gun, pump | |||

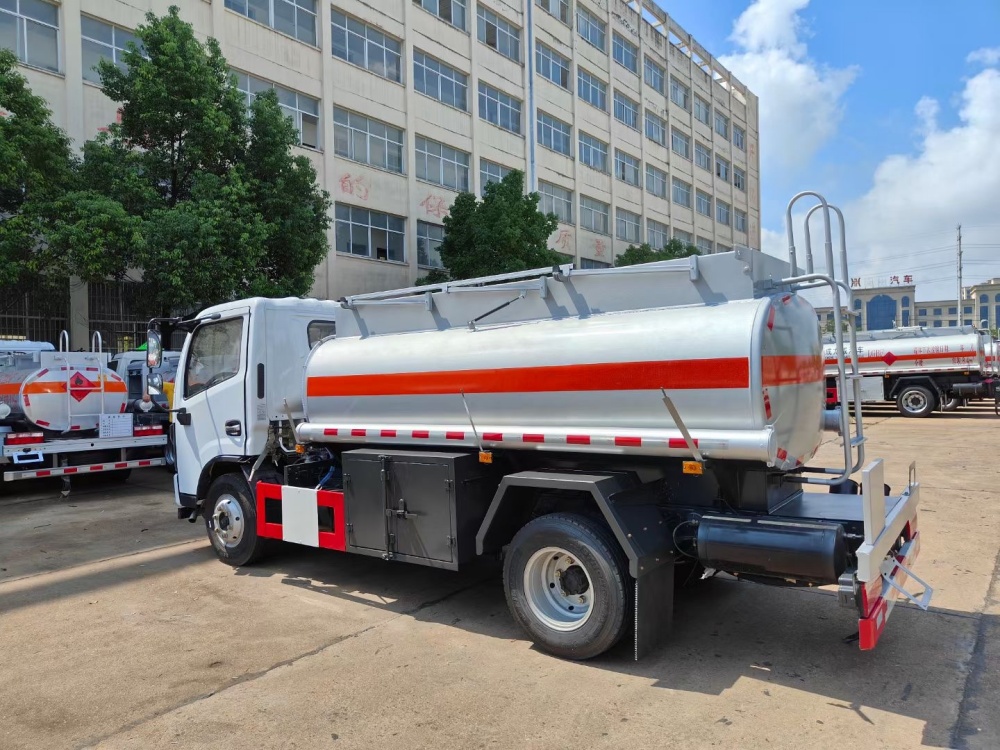

More pictures of fuel bowser tanker truck manufactured by Chengli Special Automobile Co., Ltd. is are as below.
5000Liters oil dispensing truck for sale
high quality and best price dongfeng fuel tanker truck for sale
Introduction of our oil transport truck
1. According the loading liquids: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. tank body is adopted an advanced automatic CNC vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. Chemical vehicles equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions.
4. The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Optional install gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump.
6. shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. optional to install reading meter before outlet and inlet.
8. optional to install self-discharge valve at rail or side of tank body according to the demand.
9. Equip separators [Baffle] to prevent surging of liquid towards bulk
Our refuelling tender is consist of chassis, oil tank, refuelling machine, oil pipe winch reel, oil pump, operation system, fire extinguishier, pressure vent valve, flameproof enclosure, antistatic device,etc.
As a professional special vehicle manufacturer,CLW refuelling tender have some advantages, our tank utilize the high quality steel and with built-in anti-wave board to reduce the impact force and keep it smooth during transportation.
1.Our refuelling truck equipped with famous refuelling machine
2. Our refuelling truck equipped with speed limiter to control speed to 80km/h
3. Our refuelling truck equipped with famous oil pump, good quality
4. Our refuelling truck really factory sale, best price and servise
5. Our refuelling tuck are with ISO and 3C certification
6. Tank material is 5mm carbon steel.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 133298999995.
