Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LEd truck, mobile LED advertising vehicle, full screen mobile vehicle, puu-type LED outdoor full screen vehicle, etc. in China. With man years'experience in developing, Chengli Special Automobile Co., Ltd. could supply best quality LED trucks upon request. The following are the advantages of CLW mobile LED advertisement vehicle in China.
1. Left and right LED full color display screen, high lightness
2. Left screen can be lifted 1.5m for stage performance,good visual effect
3. Double color scrolling marquee on the rear door.
4.Equipped with high quality play devices. perfect listening effect.
5.Super-silent generator, save electricity, environmental protection

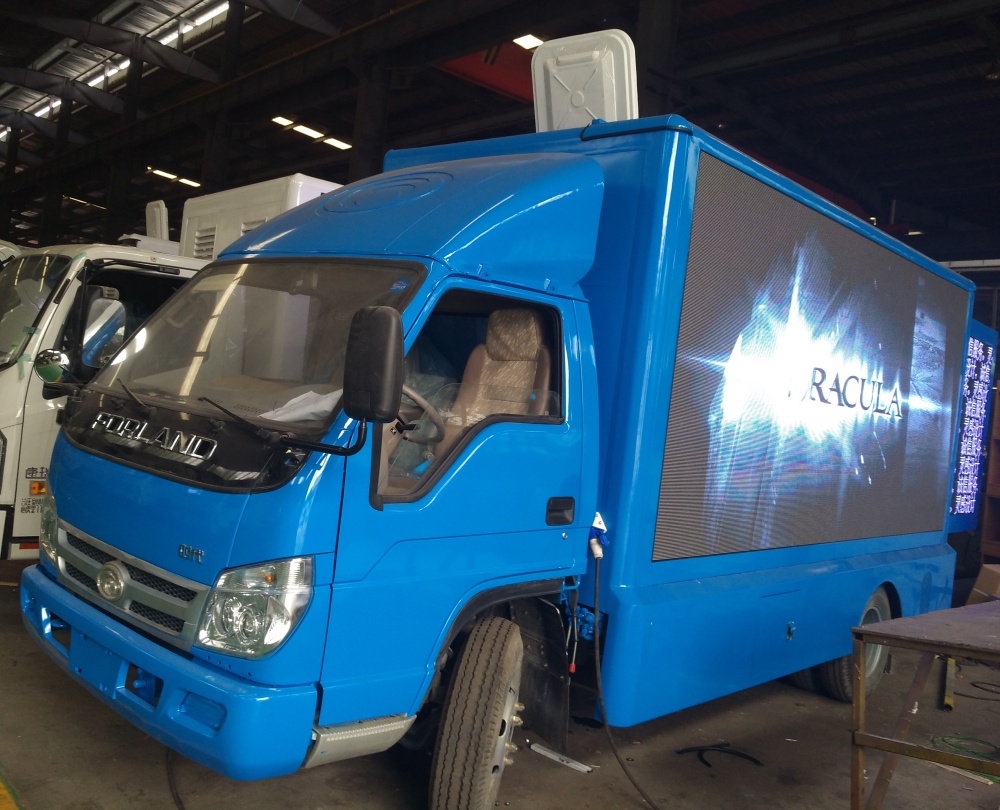

More pictures of FOTON mobile LED advertising truck are as below.
Main Technical Parameters] | ||||
Product Name | Mobile advertising truck | Brand | CLW | |
Gross Vehicle Weight(Kg) | 4495 | Curb Weight(Kg) | 4300 | |
Cab Allowed Persons | 3 | Overall Dimension(mm) | 5995×2025×2995 | |
Dive Type | 4x2 | Alex No. | 2 | |
F/R Suspension(mm) | 1085/1550 | App/Dep. Angel(°) | 23/8 | |
Alex Load(Kg) | 1710/2785 | Max. Speed(Km/h) | 90 | |
[Chassis Technical Parameters] | ||||
Chassis Model | BJ1043V9JEA-A | Chassis Brand | FOTON | |
Overall Dimension(mm) | 5875×1915×2150 | Tyre No. | 6 with 1 spare tyre | |
Appr/Dep. Angel (°) | 23/19 | Tyre Specification | 7.00-16 | |
Spring Leaf No. | 4/6+7 | F/R Suspension(mm) | 1085/1430 | |
Front Track(mm) | 1415 | Rear Track(mm) | 1485 | |
Wheelbase(mm) | 3360 | Axle Load(kg) | 1710/2785 | |
Gear Box | 5 speed forward and 1 reverse | Brake | Air brake,Oil brake is optional | |
[Engine Technical Parameter] | ||||
Fuel Type | Diesel | Emission Standard | EuroⅢ | |
Engine Model | 4B2-95C40 | Brand | QUANCHAI | |
Displacement(ml) | 2545 | Power | 93hp/70kw | |
Remarks: 1.Equipped with super silent generator,computer console, 4x60W water-proof column loudspeaker, high power amplifier.
2.LED full color P10 high lightness display screen, the lifetime of LED is 100 thousand hours and the lightness is up to 7000cd.LED transistor are all famous brand in China. | ||||
