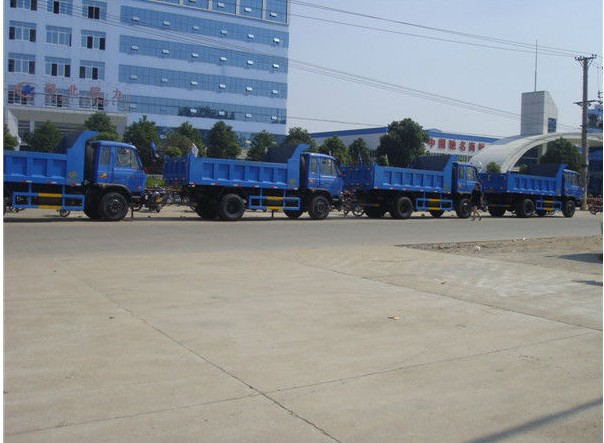

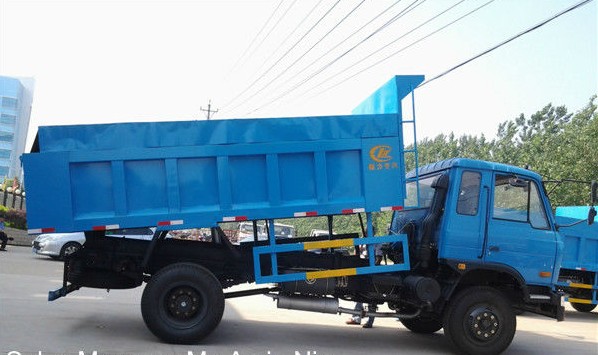

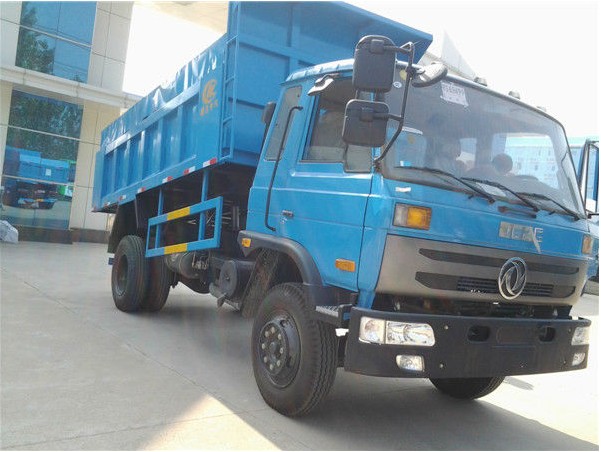

Look at the pictures of Dongfeng 4*2 170hp 8cbm garbage dump trucks outside of Chengli Special Automobile Co., Ltd.
The following are the main advantages of Dongfeng 170hp garbage dump trucks as below.
1. Discharge garbage by hydraulic cylinders
2. Sealed by top cover, environmental friendly garbage truck
3. Cummins engine, strong power.
4.Material of garbage bucket is high quality carbon steel, side 3mm, bottom 4mm
|
Main Technical Parameter dongfeng 4*2 170hp Euro 3 garbage dump truck |
|||
|
Product Name |
Overall Dimension(L*W*H)(mm) |
7000×2490×2980 |
|
|
Compartment size(L*W*H)(mm) |
4480×2210×800 |
Approach/ departure angle (° ) |
34/15 |
|
Curb weight(kg) |
6295 |
Dustbin volume(m3) |
8 |
|
Axle number |
2 |
Front/Rear axle load(Kg) |
3600/9000 |
|
Cab capacity |
3 |
Front/ rear suspension(mm) |
1250/1800 |
|
Wheelbase(mm) |
3950 |
Front/Rear tread(mm) |
1910/1800 |
|
Cab type |
DONGFENG 145 one and half row, flat proof |
Max Speed (km/h) |
80 |
|
Chassis Technical Parameter |
|||
|
Chassis Model: |
EQ1162GJAC |
Chassis Manufacturer: |
DONGFENG Automobile Co., Ltd |
|
Gear box |
5 forward and 1 reverse |
Transmission type: |
Manual |
|
number of tires |
6 with a spare |
Leaf Spring number: |
9/11+8 |
|
Tire size |
9.00-20,9.00-R20 |
Traction Type: |
4*2 |
|
Engine specification |
|||
|
Engine Model: |
B170 33 |
Engine Brand |
DONGFENG Cummins Engine Co., Ltd |
|
Emission stand |
Euro 3 |
Displacement(ml) |
5900 |
|
Fuel type: |
diesel |
Power(kw) |
125(170hp) |
|
Warranty |
12 months, from the date of supply |
||
|
Remark |
1. Equipped with top cover, height 300mm, weight 400kg, unloading form: rear dump type |
||
|
2. Equipped with hermetic dustbin, 24V Electric system, electrically hydraulic operation control |
|||
|
3. Equipped with two advanced double acting hydraulic cylinders, cycling time 60s |
|||
|
4. Van material: carbon steel |
|||
