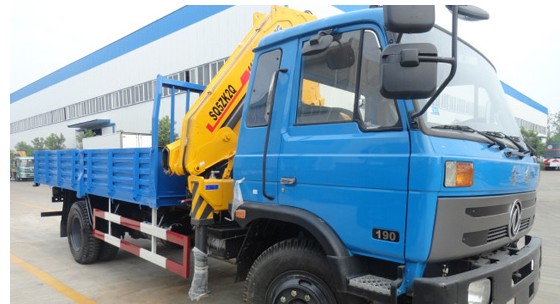

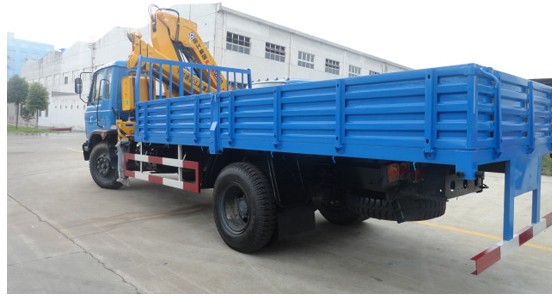

Dongfeng 153 10ton folded crane trucks are exported to South America.
Dongfeng 153 10ton knuckle crane trucks adopts 360D rotation 10 ton Folding crane; Cummins 190hp Euro 3 engine with high quality and competitive price. This the best popular exported model of crane trucks in 2014s.
DONGFENG 4x2 Folding Crane Truck 10 Ton
Whole Truck Main Technical Parameter | |||
Product Model | DONGFENG Folding Crane Truck | Overall Dimension(L*W*H)(mm) | 9000×2490×3720 |
Wheelbase(mm) | 5100 | Number of Axles | 2 |
F/ R suspension(mm) | 1250/2650 | Compartment size(L*W*H)(mm) | 5800×2294×550 |
Curb weight(kg) | Approx 8755 | Actual Payload(kg) | Approx 9000 |
Approach/ departure angle (° ) | 32/15 | Max Speed (km/h) | 80 |
Cab Type | One and half row, flat proof | Cab capacity | 3 |
Chassis parameter | |||
Chassis Model | EQ5160GKJ1 | Chassis manufacturer | DONGFENG Motor Co., Ltd |
Gear Box | DONGFENG 6shift | Transmission type | Manual |
Steering Type | LHD or RHD with Power steering | Traction Type | 4*2 |
Brake System | air brake | Number of Tire | 6 with a spare |
Leaf Spring number | 8/10+8 | Tire size/type | 10.00-20 |
Engine parameter | |||
Engine Model | B190 33 | Engine manufacturer | Dongfeng Cummins Engine Co., Ltd |
Fuel type | diesel | Displacement(ml) | 5900 |
Emission stand | Euro 3 | Power(kw) | 140(190hp) |
Operation System | Electrically Hydraulic Control | Electric system | 24V |
Equipment & Performance | 1.Equipped with Folding arm SQ10ZK3Q 4 arms Crane, optional other | ||
2.Max lift quality:10000kg,Max Lifting Moment:25(T.M) | |||
3.Work radius:10m, lift height:12.5m, span:5.6m | |||
4. 360° rotation ,reliable quality, long service life, work fast | |||
5.Optional 5ton,8ton,10ton,12ton,16ton,20ton crane, or optional 2 arms ,3arms, 4 arms or multi-arms, optional straight arm or folding arm | |||
6.Design different form truck of crane as per the customer’ request ,as lift truck with water tank, wrecker with crane, etc | |||
