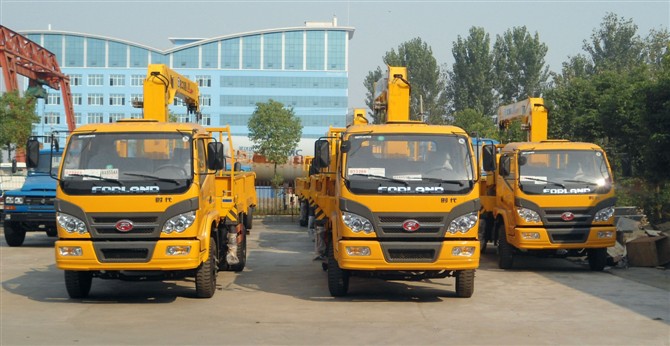

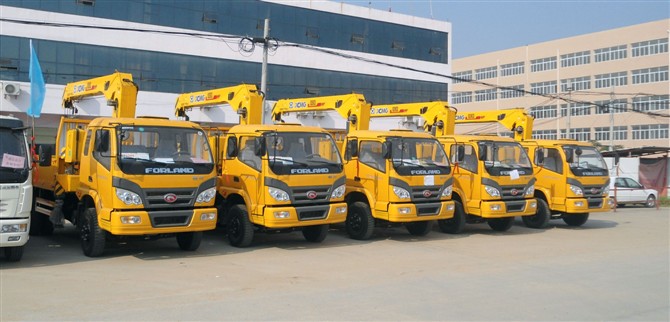

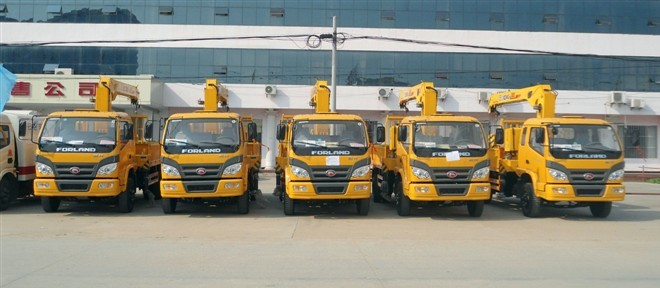

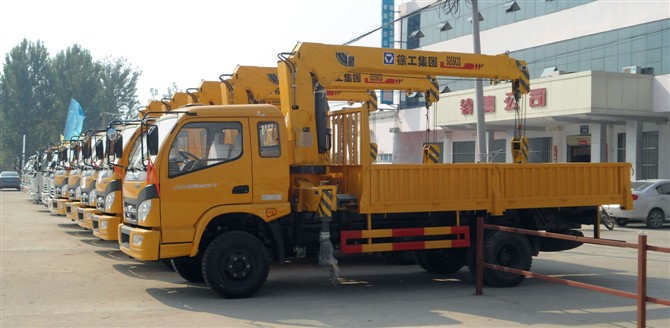

Recently, 20 units of Forland cargo truck with cranes are exported to South America. Forland truck with crane adopts Yunnei 126hp engine, 5 speed transmission with auxiliary speed and power steering, air-cut brake, 8.25-20 nylon tyre, 6.3ton straight crane arm with the lifting height of 11m and working radius of 9m, and the cargo van dimension(L*W*H) is 4300*2100*600(mm), etc. And this cargo truck can also choose 5ton 3 sections straight arm or 5ton 4 section straight arm upon request.
high quality and best price FORLAND cargo truck crane for sale
| Truck name | Forland dump truck with crane | ||
| Company name | Chengli Special Automobile Co., Ltd. | Product brand | CLW |
| Overall dimension(mm) | 7295×2490×3500 | Total mass(Kg) | 11665 |
| Cargo body dimension(mm) | 4300×2100×600 | Rated mass(Kg) | 3990,4390 |
| Approach/departure angle | 29/21 | Curb mass(Kg) | 7480,7080 |
| Front/rear suspension(mm) | 1255/2140 | Max speed (km/h) | 80 |
| Engine model | Manufacturer | Displacement(ml) | Power(kw) |
| YN33CR-4 | Yunnei power | 3298 | 93 |
| Fuel type | Diesel | Emission standard | GB17691-2005EuroⅢ,GB3847-2005 |
| Axles | 2 | Tyre nos. | 6 |
| Wheelbase(mm) | 3900 | Tyre specification | 8.25-20 16PR |
| Axle load(kg) | 4100/7565 | Front tread(mm) | 1750 |
| Springs | 9/11+8 | Rear tread(mm) | 1654 |
