HOT SALE! SINO TRUK HOWO RHD 23m telescopic type aerial working platform truck for sale
SINO TRUK HOWO 4*2 RHD 23m telescopic truck mounted aerial working platform, 3360mm wheelbase, ISF3.8S3141 141hp diesel Euro Ⅲ engine, WLY651 6 speed manual gearbox, 2.4T front axle/4.2T rear axle, 7.50R16 rail tires, original air conditioner, power steering, air cut braking, clutch assisting, Spring-loaded brake ,etc.
The working height is 23 meters with 4 sections arm, working arm with BS960E high strengthen steel material.
The telescopic truck mounted aerial working platform is with four hydraulic telescopic legs (up and down extension and horizontal extension), a total of 8* oil cylinders, the legs are front V and rear H type, emergency pump, lifting bucket 360 degrees Rotation, wireless remote control, and others are prepared according to factory standards.

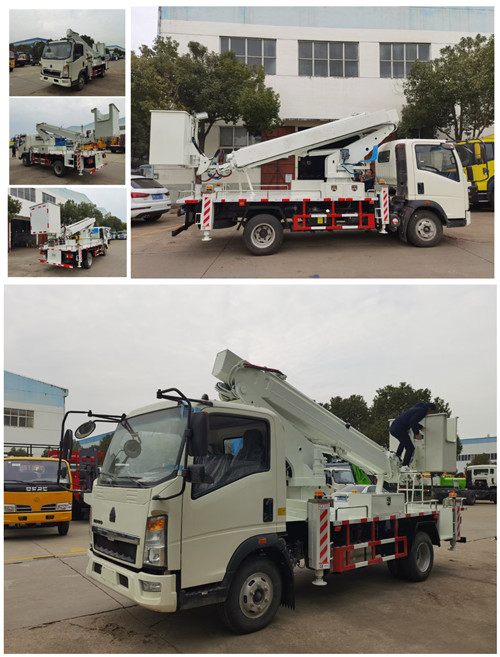

More pictures of SINO TRUK HOWO 141hp diesel telescopic aerial working platform truck is asbelow.
SINO TRUK HOWO 4*2 RHD 23m working height truck mounted aerial working platform is as below.
| Item | Name | Specification/model |
| 1 | Truck name | SINO TRUK HOWO telescopic aerial working platform truck for sale |
| 2 | Truck model | CLW5040JGKZ3 |
| 3 | Chassis model | ZZ |
| 4 | Working height | 23M |
| 5 | Working technical parameters | platform ground height≥21.3m platform max working range: 13m Flatform working height at the max working range: ≥3.5m Plafrom max working Angle of Tilt: 75° Rated mass of the working bucket: 200kg |
| Outriggers | Type: Front V + rear H type, Individually control Outriggers nos. : 4 Control: Individually control or Linkage control Transverse Span of front outriggers: 4170mm gradient：120° Transverse Span of rear outriggers: 3930mm | |
| Main operation | Operation positio: revolving stage,teleoperation, displaying screen operation, etc. three modes Control type：ZYK bus control system, electro-hydraulic proportional control system, which realizing step-less speed regulation | |
| 6 | Coaming and platform | Stainless steel fence and Non-slip platform |
| 7 | Boom construction mode | four-section six-sided working arm，Synchronous telescoping, with BS960 high strengthen steel material manufactured. |
| 8 | Rotator device | Bidirectional 360°continuous rotation, lifting bucket 360°rotation |
| 9 | Engine model | ISF3.8S3141 CUMMINS 141hp Euro Ⅲ diesel engine |
| 10 | Overall dimension(L*W*H) | 5995×2250×3300 |
| 11 | Total mass | 4495kg |
| 12 | Curb mass | 4365kg |
| 13 | wheelbase | 3360mm |
Production of HOWO telescopic type truck mounted aerial working platform is as below.
1. The SINO TRUK HOWO 23-meter high-altitude operating vehicle adopts a telescopic working arm structure. The operating arm is a 4-section telescopic type. The turntable can be operated or remotely operated. It can rotate 360 degrees, four hydraulic outriggers, and the maximum load-bearing bucket. 200 kg, stainless steel hoarding, pattern anti-skid walking platform.
2. The working bucket adopts mechanical self-balancing design, its function is that the working bucket is always in a balanced state when working. The maximum extension angle of the forearm is up to 80° in order to adjust to the best working position.
3. Night work lights, operation lights can be installed on the operating table according to the customer's operating environment, making night work safer.
4. Computer control, automatic limit, dangerous work alarm, excellent safety performance. There is a display when getting off the car, which can display the working conditions of the whole car in real time.
5. The hexagonal working arm increases the strength, synchronously expands and contracts, the structure is compact, the working efficiency is high, and the working range is large. The telescopic oil cylinder is installed externally, and the chain telescopic mechanism is easier to observe the fault point and convenient for maintenance.
6. The outrigger adopts the front V and rear H-shaped structure, which has a larger bearing surface and higher stability; it can prevent the car beam from being deformed or broken. The outriggers are individually adjustable, and each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state. All outriggers are equipped with outrigger flashing lights for supporting during operation. The legs are profiled and a light alarm signal is issued.
7. The four vertical outrigger cylinders and the upper arm, lower arm, and forearm cylinders are all equipped with two-way hydraulic locks. The function is to lock the cylinders in place after reaching the required position to prevent accidents. The working arm is equipped with a two-way balance valve to make the working arm run more smoothly.
8. The main components of the vehicle including two-way hydraulic lock, two-way lock balance valve, hydraulic flow valve, hydraulic cylinder, engine start-stop emergency pump, operating system and control computer are all domestic well-known brands, and the core components are imported. Stable commutation, flexible and convenient operation; outriggers and working arms are interlocked, safe and reliable, to prevent mis-operation.
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
