Recently, one of the Uruguay customer placed an order of 20 units of dongfeng Furuika 5,000L water trucks.
Dongfeng 5,000L small water trucks adopt Dongfeng Furuika original chassis, 3300mm wheelbase, Euro 3 Yuchai 95hp engine,
high quality 5mm thick carbon steel, with the water tanker of 5cbm. The detailed technical parameters is as below.
Main Technical Parameter | |||
Product Name | dongfeng Water Tanker Truck | Tank Capacity(L) | 1570 |
Gross Weight(Kg) | 4495 | Overall Dimension(mm) | 5995×2000×2300 |
Rated Payload(Kg) | 1500 | Curb Weight(Kg) | 2800 |
Cab Allowed Persons | 3 | App./ Dep. Angle(º) | 19/14 |
F/R Suspension(mm) | 1160/1535 | Axle No. | 2 |
Wheelbase(mm) | 3300 | Axle Load(Kg) | 2000/2495 |
Others | 1. Tank material is carbon steel and the thickness is 5mm. 2. Tank shape is elliptical and cylindrical is optional. | ||
Chassis Technical Parameter | |||
Chassis Model | EQ1040GLJ4 | Chassis Name | Truck(class 2) |
Brand Name | DONGFENG | Manufacturer | Dongfeng Automobile Co.,Ltd |
Overall Dimension(mm) | 5820×1940×2080 | Tyre No. | 6 |
App./ Dep. Angle(º) | 19/16 | Tyre Specification | 7.00-16 |
Spring leaf No. | 8/9+5 | Front Track(mm) | 1506 |
Fuel Type | Diesel | Rear Track(mm) | 1442 |
Emission Standard | Euro Ⅲ | ||
Engine Model | CY4102-C3F | Manufacturer | Dongfeng Chaochai |
Displacement(ml) | 3856 | Power(Kw) | 70 |

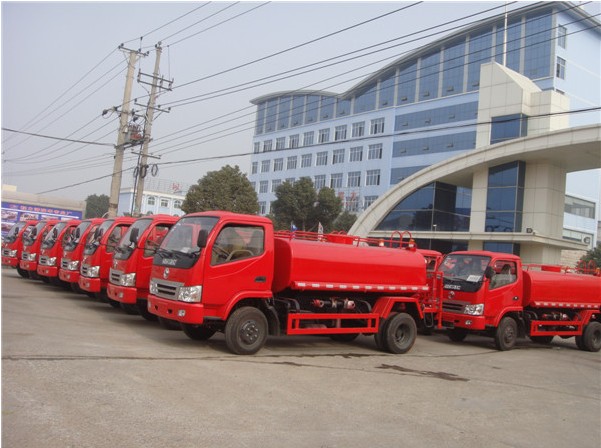

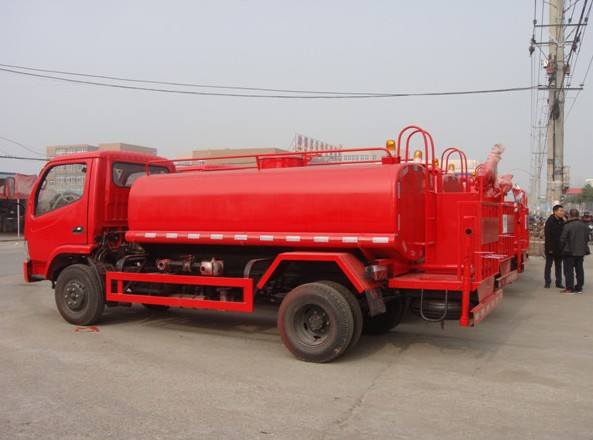

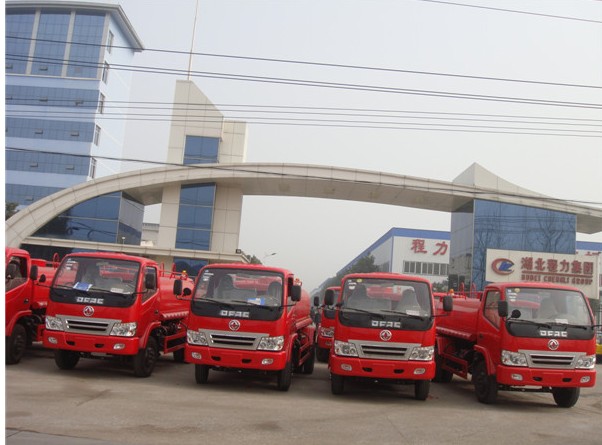

Look at the pictures of dongfeng exported 5cbm water trucks as below. They are stopped at the door of
Chengli Special Automobile Co., Ltd. They are ready for leaving for Shanghai Port, then sails to Uruguay.
dongfeng water tanker truck 5000Liters
