Chengli Special Automobile Co., Ltd. is the leading supplier and manufacturer of dump trucks, etc. in China since 2004s. Our tipper truck can be customized according to you requirement. The brand can be DONGFENG, HINO,SINO, FAW,FOTON, etc. And the drive type can be 4x2,6x4,8x4,etc. The thickness of side plate of the box body can be 3mm to 6mm and the the thickness of bottom plate can be 4mm to 8mm. The horse power of engine is from 90hp to 380hp. The steering can be right hand drive or left hand drive which depand on your demand.
Today, let the leading expert of dump truck manufacturer in China-Chengli Special Automobile Co., Ltd. introduce you the most popular exported model of dump trucks in 2014s.
[Main Technical Parameters] | ||||

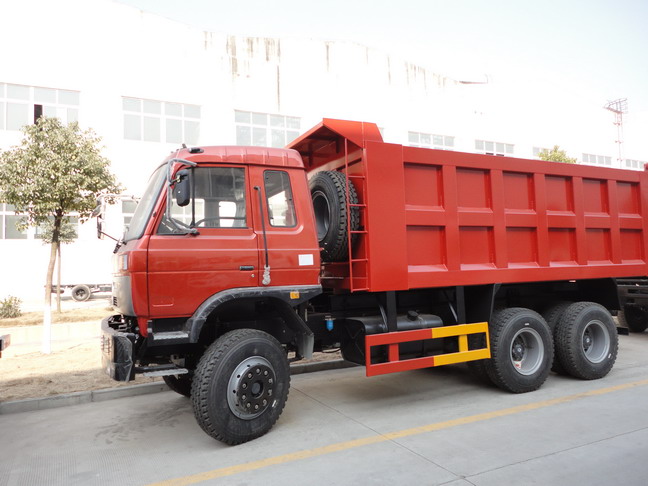

Product Name | dongfeng 6*4 tipper truck | Gross Vehicle Weight(kg) | 25000 | |
Rated Payload(kg) | 12900 | Curb Weight(kg) | 11905 | |
Overall Dimension(mm) | 8270×2500×3220 | Box Dimension(mm) | 5800×2300×1170 | |
Cab Allowed Persons | 3 | Mass Utilization Coefficient | 1.09 | |
Appr/Dep Angle(°) | 32/17 | F/R Suspension(mm) | 1245/1825 | |
Axle No. | 3 | Wheelbase(mm) | 3900+1300 | |
Axle Load(Kg) | 7000/18000(parallel installed) | Max Speed(Km/h) | 80 | |
[Chassis Technical Parameters] | ||||
Chassis Model | EQ3258GB3GJ1 | Chassis Brand | DONGFENG | |
Overall Dimension(mm) | 7455×2462×2710 | Tyre No. | 10 | |
Appr/Dep Angle(°) | 30/30 | Tyre Specification | 10.00-20 | |
Spring Leaf No. | 32/37 | Front Track(mm) | 1940 | |
Fuel Type | Diesel | Rear Track(mm) | 1860/1860 | |
Gear Box | Fast 6 speed forward 1 reverse | Brake | Air Brake | |
Emission Standard | EuroⅢ | |||
Engine Model | ISDe210 30 | Engine Brand | DONGFENG | |
Engine Power | 155Kw/210hp | Displacement(ml) | 6700 | |
[Superstructure Technical Parameters] | ||||
Material of Box | Carbon Steel | Paint | Metallic Paint | |
Thickness of side plate | 6mm | Thickness of bottom plate | 8mm | |
