Customized SHACMAN L3000 street sweeping and washing truck for oversea clients
Customized SHACMAN brand 4*2 LHD road sweeping and washing truck, adopts SHACMAN brand L3000 one row and a half driver cab, 4500mm wheelbase, WP6.210E32 weichai 210hp diesel engine,4.8tons front axle/10tns rear axle, 200L steel oil tanker, 8JS85TE-C 8 speed manual gearbox,10.00R20 rail tires, etc.
The SHACMAN brand road sweeping and washing truck adopts SHACMAN brand L3000 type national Ⅱ class II chassis modification, adding auxiliary engines, fans, high-pressure water pumps, clean water tanks, garbage bins, left and right vertical sweeps, wide suction nozzles with water spray rods, and low-pressure flushing system , Sweeping pan dust reduction system, hydraulic system, special device electric control system and sub-frame etc. are refitted.
The auxiliary engine drives the fan and high-pressure water pump, and the auxiliary engine adopts a Dongfeng Cummins six-cylinder 170-horsepower diesel engine. The fan uses an 8.0 high-pressure centrifugal fan, which has high efficiency and large air volume, with a maximum air volume of 23500m3/h. The high-pressure water pump adopts the internationally well-known PF36 plunger pump with suitable flow and high pressure, and the maximum allowable pressure is 10MPa.
The clean water tank makes full use of the on-board space, with a large volume, up to 9m3. The trash bin adopts single-layer 304 stainless steel structure, dumping and unloading, with high-pressure self-cleaning device. The self-cleaning device can help unloading and cleaning the inside of the trash can when the trash can is unloaded.
The left and right vertical scanning is a single scanning plate, which reduces the number of brushes and the consumption of brushes, and can reduce the cost of use. The left and right vertical sweeps are controlled separately, and different operation modes such as left sweep, right sweep and full sweep can be realized. The width of the suction mouth of the wide suction nozzle reaches 2418mm, ensuring that the total working width is greater than 3.5mm. The 4 height-adjustable nozzle wheels can adjust and ensure a reasonable gap between the nozzle and the road surface. The suction nozzle has a built-in high-pressure water spray rod, and as many high-pressure washing nozzles as possible are arranged inside the suction nozzle, which not only has a good cleaning effect, but also minimizes the secondary pollution caused by the high-pressure water jet washing up the dirt.
The left and right spray rods are installed on the suction cups, which rise and fall with the suction cups. The structure is simple and compact, which ensures that the height of the spray rods from the ground is constant and achieves the best cleaning effect. The open hydraulic system drives the left and right vertical sweeping and lifting, the left and right sweeping pan rotation, the suction nozzle lifting, the opening and closing of the back door of the dustbin, and the dumping and resetting of the dustbin.
The power take-off on the gearbox side of the chassis drives the low-pressure water pump to realize the low-pressure flushing function of the sprinkler, and one-button start and stop operations.
SHACMAN brand rsweeper has multiple functions such as road cleaning, road cleaning, curb cleaning, curb and curb facade scrubbing, low-pressure washing, spray dust removal, etc. There are multiple operation modes to choose from, such as "full wash and sweep", "left wash and sweep", "right wash and sweep", "full sweep", "left sweep", and "right sweep". Choose "full washing and sweeping" mode to clean the square and pavement, the cleaning efficiency is high and the effect is good, and the cleaning rate is more than 90%. Choose "left washing and sweeping" or "right washing and sweeping" mode to clean the road surface and curbs, and scrub the curb facade. When road cleaning or road cleaning operations are required, the road sweeping mode can be selected. When spray dust removal is required, the spray device can be turned on to perform spray dust removal operations. The road surface can be washed with low pressure like a sprinkler.
SHACMAN brand 4*2 LHD road sweeping and washing truck is suitable for cleaning operations such as mechanized cleaning, sweeping, spraying and dust suppression of urban roads, highways, squares, airports, docks, tunnels, bridges, isolation walls, curbs and curb facades.

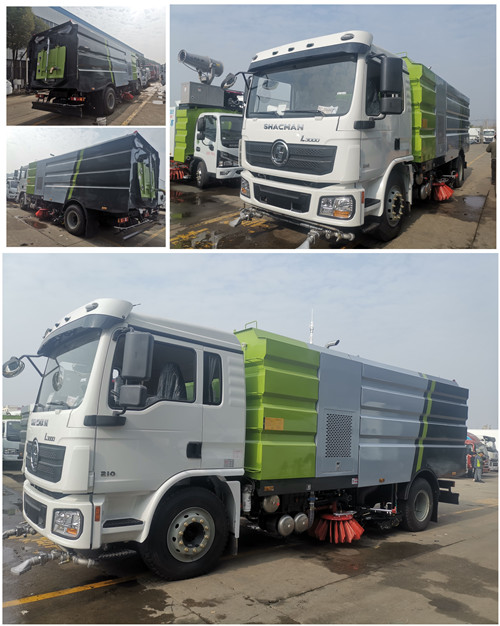

More pictures of SHACMAN brand L3000 street sweeping and washing vehicle is as below.
HOT SALE! SHACMAN L3000 street sweeping and washing truck for sale
Main technical parameters of SHACMAN brand street sweeping and washing truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Item | Main parameters | ||
| Truck brand | SHACMAN | ||
| Truck model | CL5181TXS3QZ road washing sweeper for sale | ||
| Truck chassis | SX5185 | ||
| Emission standard | Euro 2 | ||
| Engine | Truck engine | Truck engine | WP6.210E32 |
| Power (kw) | 155 | ||
| Horsepower (ps) | 210 | ||
| displacement(ml) | 6230 | ||
| Auxiliary engine | Engine model | B170 Dongfeng Cummins | |
| power(kw) | 125 | ||
| horsepower(ps) | 170 | ||
| Displacement (ml) | 4500 | ||
| Fuel type | Diesel | ||
| Basic parameters | Overall dimension(L*W*H) mm | 8150×2500×3150 | |
| Wheelbase (mm) | 4500 | ||
| Tires specification | 10.00R20 | ||
| Tire now. | 6+1 | ||
| tread | Front tread(mm) | 1970 | |
| Rear read(mm) | 1860 | ||
| Seated person | 3 | ||
| Front/rear suspension (mm) | 1450/2200 | ||
| Approach angle | 23° | ||
| Departure angle | 10° | ||
| Ground clearance (mm) | 380 | ||
| Rated mass(kg) | 5870 | ||
| Curb mass(kg) | 12000 | ||
| Total mass(kg) | 18000 | ||
| Special parameters | Dust tank volume( m3 ) | 7（stainless steel material） | ||||
| Clean water tank volume( m3 ) | 9（stainless steel material） | |||||
| Sweeping width (mm) | 2800-3200 | |||||
| Sweeping speed (km/h) | 3-15 | |||||
| Working speed (km/h) | 15-20 | |||||
| Max cleaning ability (m2/h) | 48000 | |||||
| Suction capacity | 2.0 | 2.0 | ||||
| 1.5 | 1.5 | |||||
| ≥100 | ≥100 | |||||
| Dust tank dumping angle | ≥45° | |||||
| Cleaning efficiency | ≥96% | |||||
| Driving parameters | Driving type | 4×2 | ||||
| Suspension type | Steel spring | |||||
| Steel spring no. (front/rear) | ,8/10+8 | |||||
| Braking type | Double loop pressure brake, drum type | |||||
| Braking distance (full load30km/h) | ≤10m | |||||
| Max speed(km/h) | 99 | |||||
| mini turning radius (m) | 8 | |||||
| Max Climbing slope | ≥30％ | |||||
| Clutch system | Single dry diaphragm spring clutch，hydraulic control | |||||
| Transmission system | Mechanical 5-speed transmission with Synchronizer, manual | |||||
| Engine oil consumption | Driving (L/100km) | Sweeping (L/h) | Sweeping (L/10000m2) | |||
| ≤12 | ≤6 | ≤3 | ||||
| Dust system | Spraying type | Low pressure fog | ||||
| Main component composition | German imported high pressure pump water filter line stainless steel nozzle nozzle, etc.. | |||||
| High pressure pump | GERMAN IMPORTED | |||||
| Installation position | Clean up the dust | Left-right front sweeping disc | ||||
| Sucking dust and dedust | Suction cup in the suction vent | |||||
| Control type | Electronic control, one-click operation | |||||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
