s treet sweeper is also called road sweeper, street sweeper truck, sweeper truck, road sweeping truck,
road sweeper truck, road sweep machine, road sweeping vehicle, etc.The street sweeper truck which made
by Chengli Special Automobile Co.,Ltd. it is an cleaningtool which equipped with powerdevice, cleaning device, suction device,
spraying&hydraulic system on Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. The sweeper truck we produce has large sweep range, low fuel consumption, convenient operation and other advantages.

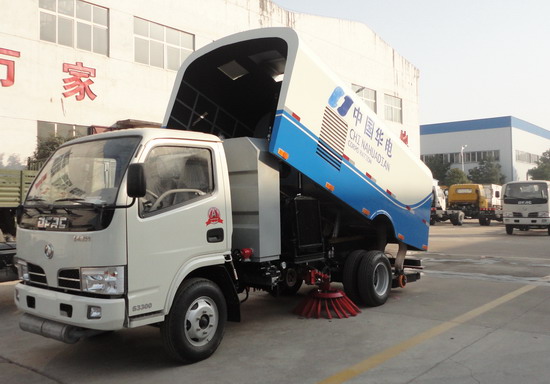

China dongfeng EURO4 95hp mini street sweeper
Items | Descriptions | Specifications and Types |
General | Truck Name | dongfeng Road sweeper truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 6495 | |
Curb Weight(kg) | 4865 | |
Overall Dimensions L*W*H(mm) | 5970×2000×2380 | |
Engine | Engine Model | CY4102-C3F |
Engine Brand | CHAOCHAI | |
Fuel Type | Diesel | |
Power | 70KW/95HP | |
Emission Standard | Euro 4 | |
Displacement(ml) | 3856 | |
Engine Type | 4 cylinders in line,4 stroke,water cooling,charged diesel | |
Chassis | Chassis Brand | DONGFENG |
Cabin | Single row cab | |
Front/Rear Axle(kg) | 2595/3900 | |
Tire No. | 6 | |
Tire Specification | 7.00-16 Nylon tire | |
Wheelbase (mm) | 3300 | |
Axle No. | 2 | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Steering Wheel | left hand drive,right hand drive is optional | |
Air conditional | Optional | |
Sweeping System | Dust tank volume(m³) | 3.5 |
Water tank volume(m³) | 0.8 | |
Tank material | SUS304 stainless steel | |
Sweeping width | More than 3m | |
Sweeping capacity | About 45000m2/h |
Remarks: The sweeping width of dongfeng 4x2 diese street sweeper truck is more than 3 meter, the sweeping speed is 3-15 km/h,
max sweeping capacity is 45000m²/h and the max project is 100mm.
HOT SALE! road sweeping vehicle for sale
main technical advantages of CLW brand road sweeping and washing truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1, the CLW brand sweeping washing truck, adopts layout of front with clean water tank and rear with sewer tank, Semi closed Auxiliary engine cabin, left and right double side door, etc.
2, the ground pressure of the side sweeping brushes system adopts Spring adjustable model; adjusting the ground pressure of the sweeping brushes according to the road condition to reduce the abrasion of the sweeping brushes; the sweeping brushes can be adjusted low-high speed.
3, the high pressure water pump and nozzles adopts German brand; water pump is with stainless steel pump head, and the pressure up to 160Bar, max flow is 154L/min. Good road cleaning effect.
4, the hydraulic valves adopts solenoid diectional valve arranged in good order, easy to maintain; the hydraulic motor adopts Italian brand. The whole truck is with reliable hydraulic system, flexible working, etc.
5, the road sweeping washing vehicle adopts the particular centrifugal blower, and the blowing up to 12000m3/h; the blades of the blower adopting special steel, which is not easy to abrase.
6, the special side sweeping brushes anti-collision mechanism can protect the side sweeping brushes and avoiding the flushing and washing device collide the road.
7, the high pressure road cleaning vehicle adopts the working way of sweeping first then flushing sweeping, then sucking; cleaning, flushing, sucking the wastes and sewer at one time . After working, the road is without dust and water.
8, high pressure water line is installed with ant freezing water coupling, avoiding the water line freezed in winter.
9, the Key units of the electronics, adopts high quality imported ones; Operation controlling is with PLC one-key operation, realizing 9 kinds of working modes. The truck can be operated at the driver cab, easy to operate.
10, the road sweeping cleaning vehicle adopts cylinders driving’ electronic automatically control the clutch to ensure the auxiliary engine starting-stopping no load, lasting the lifetime.
11, the truck is with the self-return flushing reel and high pressure and big flow flushing nozzle, flushing heavily certain greasy dirt and also flushing and cleaning the advertisement billboards, etc.
12, the truck is with voice alarm device, realizing the function of Fault self diagnosis. And the also with anti overflow –low water level alarm device, etc.
13, the high pressure road sweeping washing vehicle is with cameral for the working and backing.
