North Benz 6*4 16ton truck with mounted crane was ordered by one of the African customers. And the XCMG 16ton folded crane is installed at the rear of the cargo van as the pictures shows. And the crane can choose straight boom installed at the front part of the cargo van, folded boom installed at the front part of the cargo van, and also rear install the folded boom according to customer' requirements.
Chengli Special Automobile Co., Ltd. is the leading manufacturer of truck mounted crane, cargo truck with crane, truck with crane and tipper, etc. With many years' experience in designing and producing, Chengli Special Automobile Co., Ltd. could produce dongfeng brand truck mounted crane, SINO TRUK cargo truck with crane, North Benz dump truck with crane, FOTON truck wiht crane, FAW mobile crane truck, ISUZU small truck mounted crane, off road crane mounted on truck, etc. More information, please feel free to contact with us.
main technical parameters of North Benz folded crane boom truck for sale
| North Benz 16ton folded crane mounted on truck Main Technical Parameter | ||||
| Product name | North Benz 16ton truck mounted crane(folded boom) | Gross Vehicle Weight (kg) | 25000 | |
| Curb Weight (kg) | 15300 | Rated Payload(kg) | 9570 | |
| Overall Dimension(mm) | 11586x2500x3500 | Cargo inner dimension | 7700x2300x500 | |
| Max Lifting Capacity | 16,000kg at 2.5m | Cab Allowed Persons | 2 | |
| Axle No. | 3 | Wheelbase (mm) | 5650+1450 | |
| F/R Suspension(mm) | 1410/3076 | Axle Load(kg) | 7000/18000(parallel installed) | |
| App/Dep Angle(º) | 26/15 | Max Speed(km/h) | 90 | |
| Chassis Technical Parameter | ||||
| Chassis Name | Truck Chassis ND1253B56J | Chassis Brand | North Benz | |
| Overall Dimension (mm) | 11425×2495×3180 | Tyre No. | 10 with 1 spare tyre | |
| App./ Dep. Angle(º) | 26/17 | Tyre Spec. | 12.00-20 | |
| Leaf Spring No. | 13/13 | Front Track (mm) | 1995 | |
| Fuel Type | Diesel | Rear Track (mm) | 1800/1800 | |
| Drive Type | 6x4 | Brake System | Air brake | |
| F/R Suspension(mm) | 1410/2915 | Axle Load(kg) | 7000/18000(parallel installed) | |
| Engine Technical Parameters | ||||
| Engine Model | WP10.290 | Emission Standard | Euro III | |
| Power | 213kw/290hp | Displacement(ml) | 9726 | |
| Superstructure Parameters | ||||
| Crane Type | Knuckle boom crane | Max lifting weight(kg) | 16000 | |
| Max lifting height(m) | 15.5 | Oil Tank Volume(L) | 250 | |

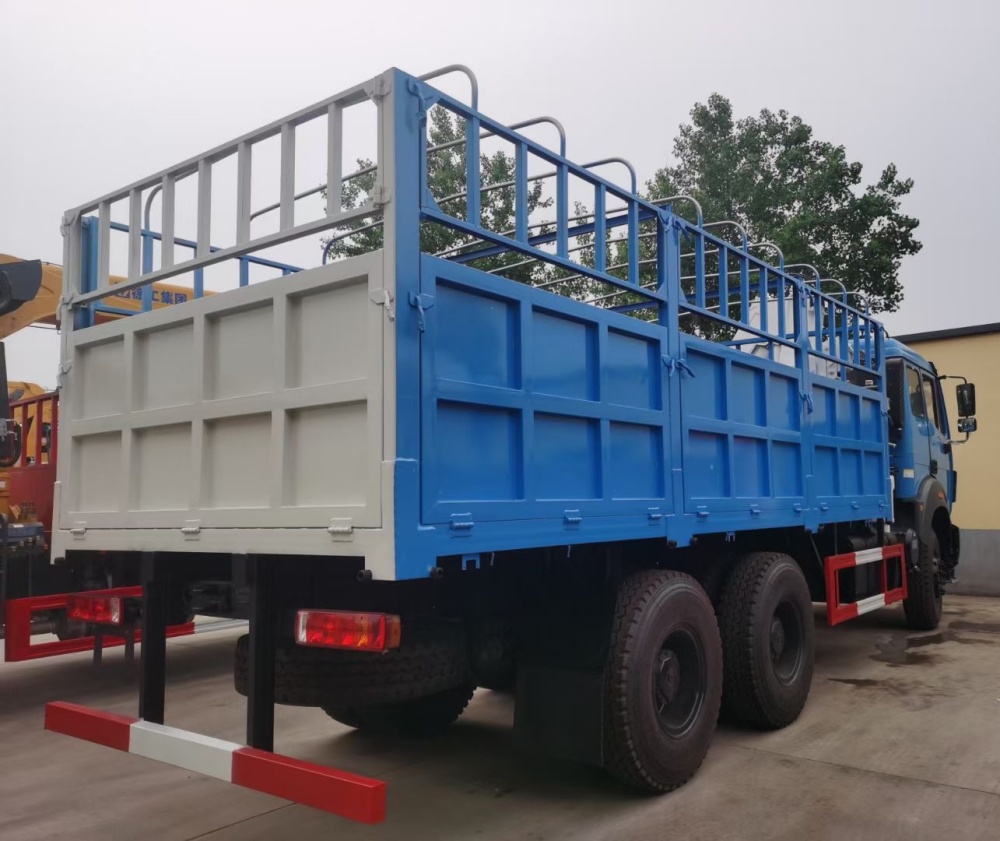

More pictures of North Benz truck with crane is as below.
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc.
A crane mounted on a truck carrier provides mobility for this type of crane. This crane has two parts: the carrier, offer referred to as the lower, and the lifting component which includes the boom, referred to as the upper. These are mateed tog through a turntable, allowing the ipper to swing from side to side. These modern hydraulic truck cranes are usuallt single-engine nachines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turnable from the pump mounted on the lower. In older model designed of hydraulic truck cranes, there were two engines. One in the lower pulled the cranedown the road and ran a hydraulic pump for the outrrigers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turnable of aging newer design cranes.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
