Chengli Special Automobile Co., Ltd. is the leading manufacturer of small truck mounted crane, cargo truck with crane, dump truck with crane, mobile crane mounted on truck, etc. in China since 2004s. More information, please feel free to contact with us.
Chengli Special Automobile Co., Ltd. could offer 4*2 double rows small cargo truck with crane, 4*4 small dump truck with crane, 4*2 single row RHD small truck mounted crane, RHD 4*4 dump truck with crane. And the cranes can install with 2ton, 2.5ton according to customer’ requirements.
Dongfeng 2.5ton small cargo truck with crane
Dongfeng 4*4 2.5ton dump truck with crane

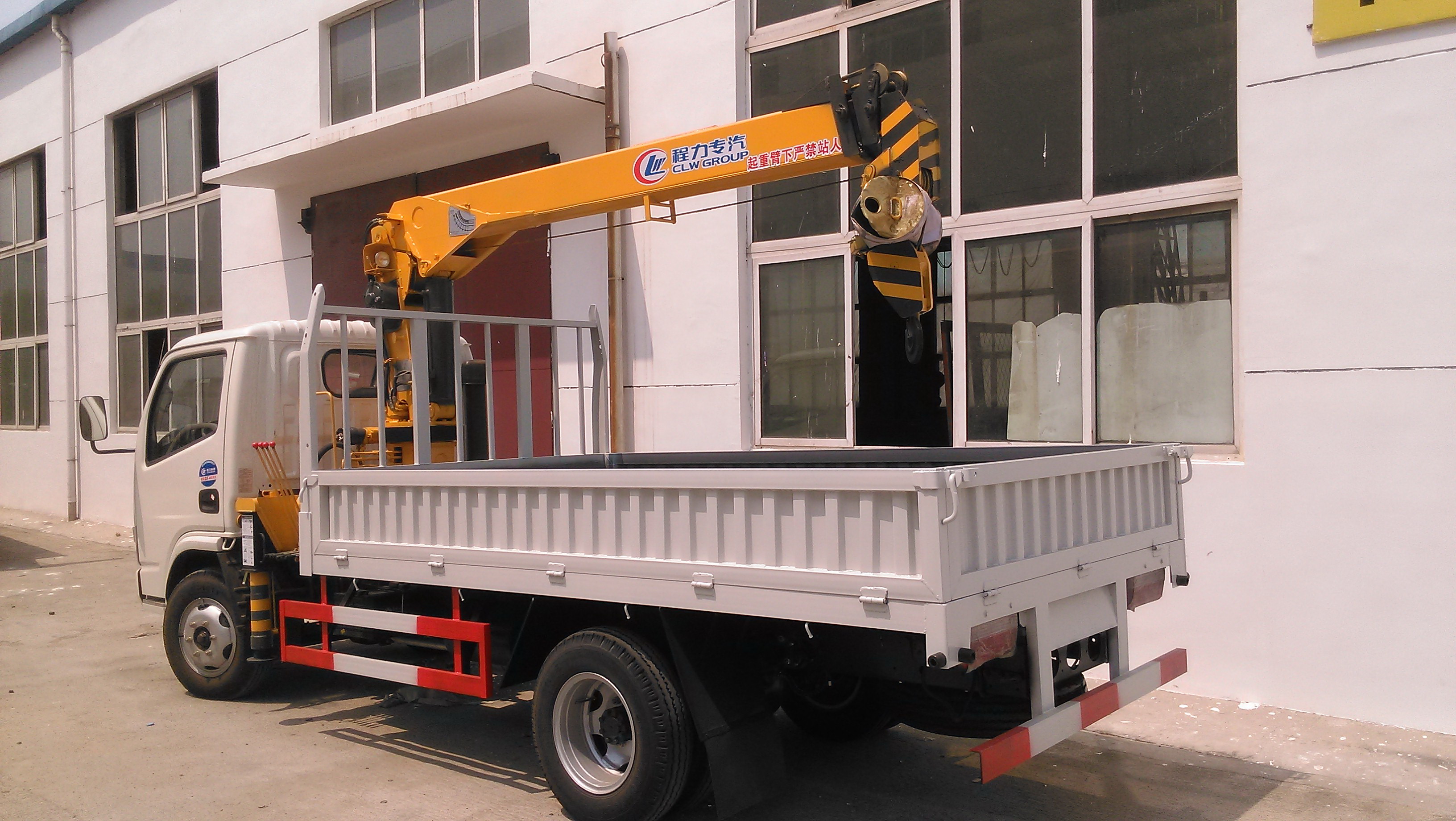

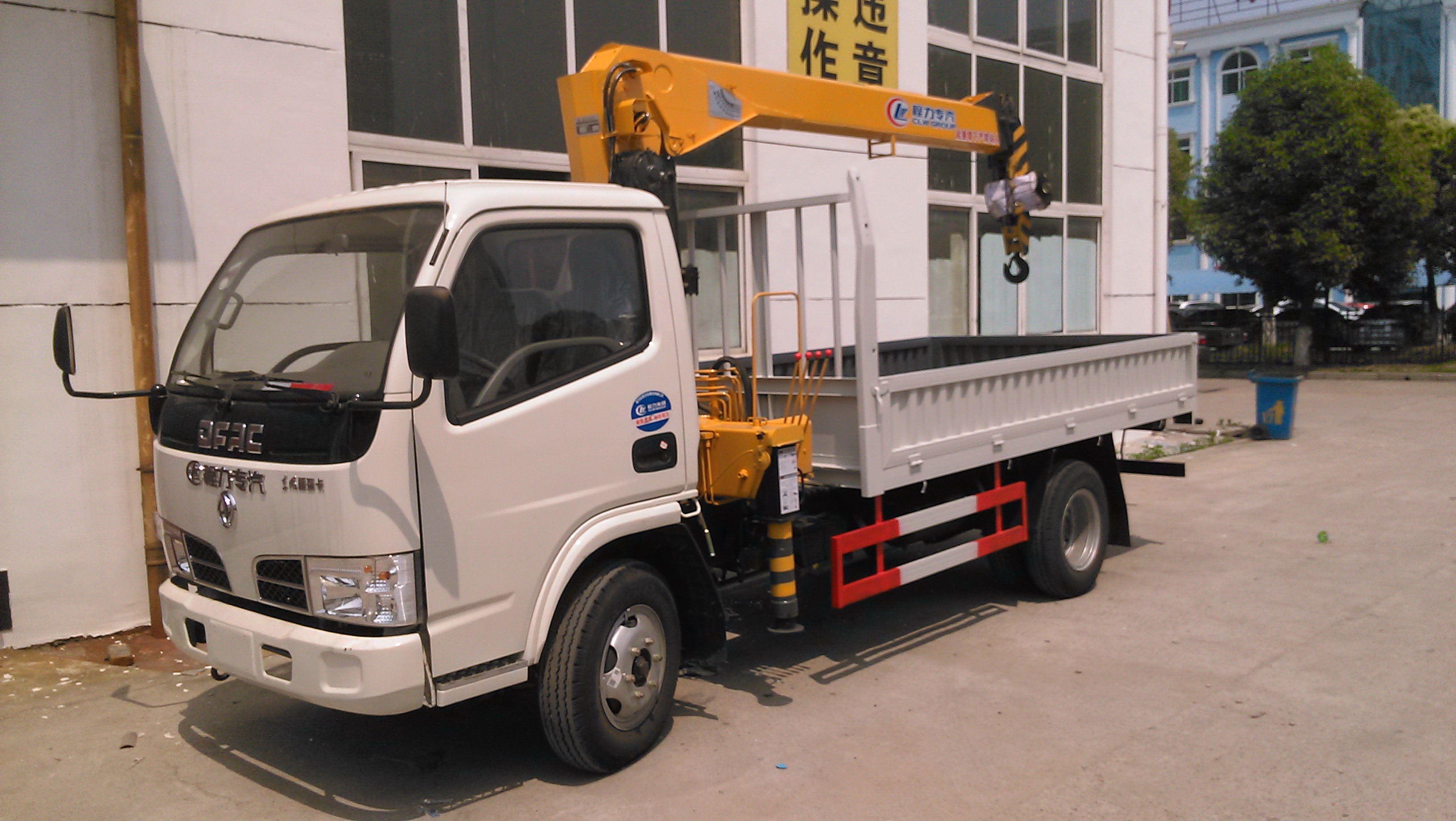

Dongfeng 2ton small truck with crane

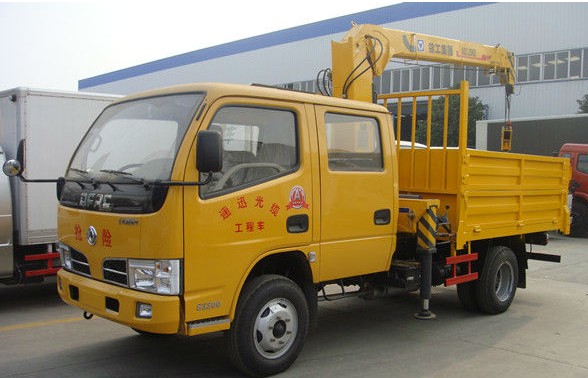

Dongfeng double rows 2ton truck mounted crane
The small cargo truck with crane adopts Dongfeng 4*2/4*4 LHD/RHD chassis, 3300mm wheelbase,Euro 3 chaochai 95hp engine, 5 speed transmission, 1058 front/rear bridge, 7.00 nylon tyre, etc. The overall dimension o f the dongfeng 2.5ton small cargo truck with crane is 5995*1980*2950(mm), etc.
The following is the main parameters of the Chengliwei 2.5ton 2 sections straight boom.
| Crane model | SQ2.5SA1 (2.5ton 2 section straight boom) | |||
| Max lift mass (kg) | 2500 | |||
| Max lift force moment (n.m) | 60000 | |||
| Profile | Hexagon | slewing | Slewing speed(r/min) | 2.5 |
| Numbers of sections | 2(2 extended boom) | Slewing range | 360(°) | |
| Length (m) | 3.5-5.38 | Outrigger | Type | Up-right supported outrigger |
| Max working radius(m) | 5.38 | Outrigger dimension(m) | 1．85-3.1 | |
| Extended speed(m/s) | 3/30 | Hydraulic system | Pressure (mpa) | 16 |
| Luffing range | 0-73° | Oil tanker volume (L) | 40 | |
| Elevation-up speed(°/s) | 73/14°/s | Safety device | Stop alarm | |
| Max lift height(m) | 7.3 | Curb mass(kg) | 950 | |
| The single rope allowable load (N) | 6250 | Suitable truck | Above 1 ton load truck | |
| Max single rope speed(m/min) | 36 | Remark: this is the rated parameters for the system flow of 1500L/min. | ||
| rope diameter(mm) | 8 | |||
| Rope length (m) | 45 | |||
| Working radius（m） | 2.5 | 3.0 | 4.0 | 5.38 |
| Rated mass(kg) | 2500 | 1880 | 1080 | 700 |
