Chengli Special Automobile Co., Ltd. is the leading manufacturer of water truck, water tank, cistern truck, watering cart, water tank mounted on truck, water sprinkling truck, water carrier truck, etc. More information, please feel free to contact with us.
The most popular water trucks are Dongfeng brand water trucks. And today let me introduce the competitive price and high quality dongfeng brand water trucks as below.

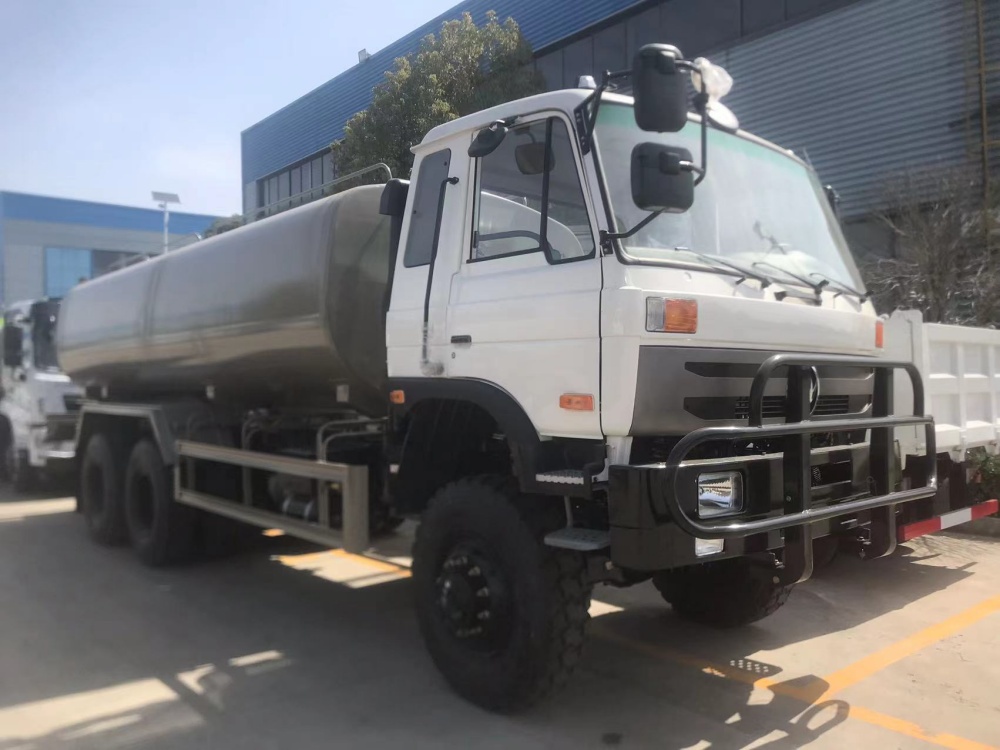

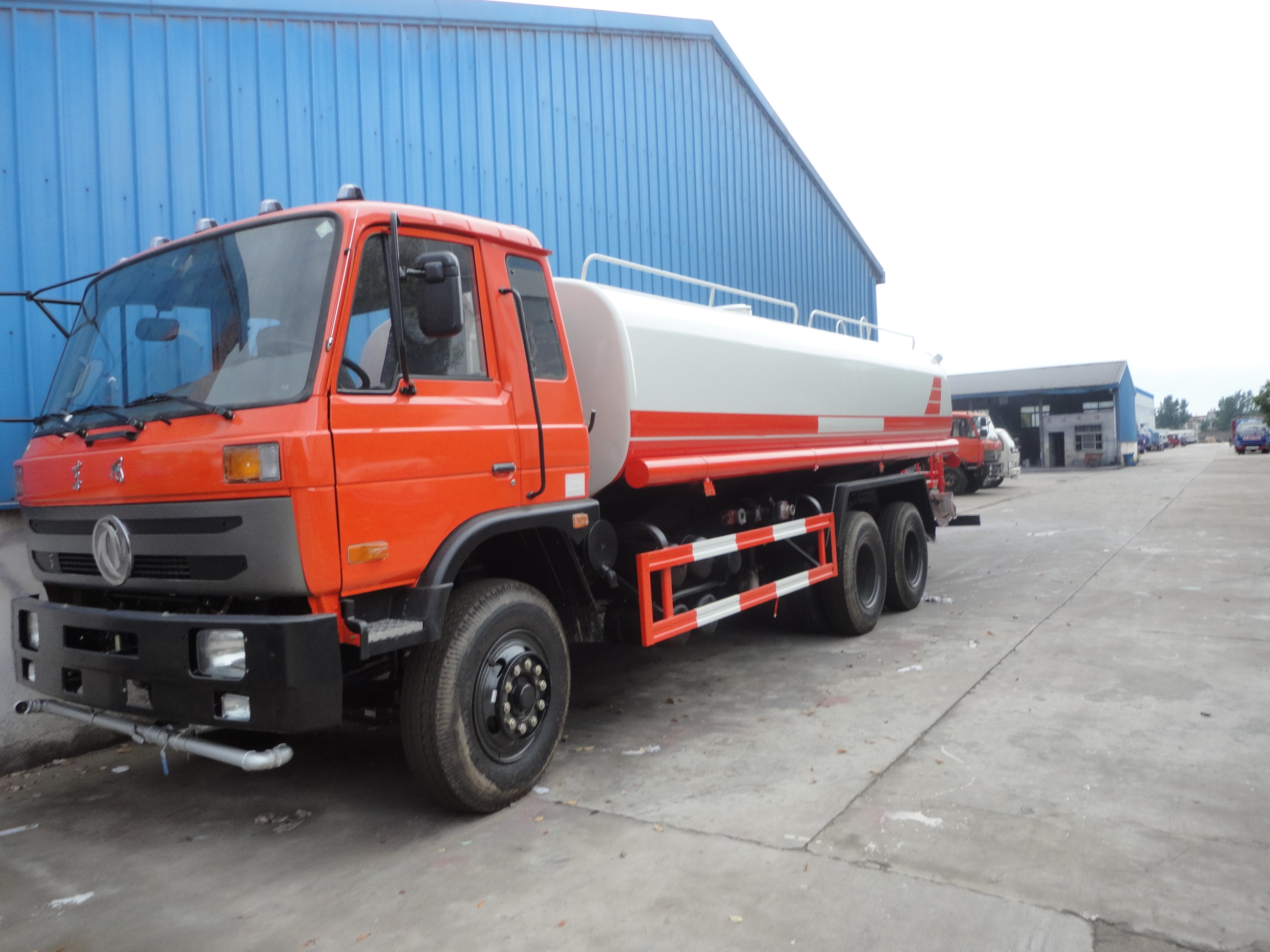

Water Truck Description
Water truck makes use of the special power take off to get power from the engine, and then pass the power to the pump via drive lines so to rotate the pump. The pump, lines valves and fittings make up of the net system. Via the regulated program on/off valves, the pump can absorb water into the tank from the source or exhaust the water inside the tank through the set lines, and then come to all function.
Main structures of this vehicle shown:
• Water carrying assembly: A steel container shaped ellipse, which is used to store work water
• Derivation device includes power take off, drive line, etc., which can pass the power from the chassis to the pump
• Net system helps come to all special functions
• Operation system helps come to all special functions’ convert
Water Truck Specification
Truck type: water tank truck
Chassis model / manufacturer: DFL1250/Dongfeng
Engine model/manufacturer/horsepower/displacement: C260/CUMMINS/260HP/8300ml
Transmission model / manufacturer / gears: 9JS119/FAST/9gears
Wheelbase: 4350+1300mm
Tire numbers / specification: 10+1spare tire/11.00R20
Cabin: with three seats and one sleeper, air-condition, radio, color optional
Tanker cubage/material/thickness: 20CBM/Carbon steel/5mm
Water pump model/self-sucking/self-sucking depth: 80QZB/60m3/h/6.5m
Sprinkler pressure/liter/rang/width/depth: 250-450Kpa/0.2-2l/m/>45m/>14m/>6m
Sprinkler way: front/side/rear sprinkler and work plate sprinkler
5-25CBM water tank trucks with various engine horsepower or chassis are available.
