Chengli Special Automobile Co., Ltd. is the leading manufacturer of bucket truck, aerial working platform truck, truck with caged lift, etc. And the bucket truck cane lift the height of 12-24m. More information, please feel free to contact with us.

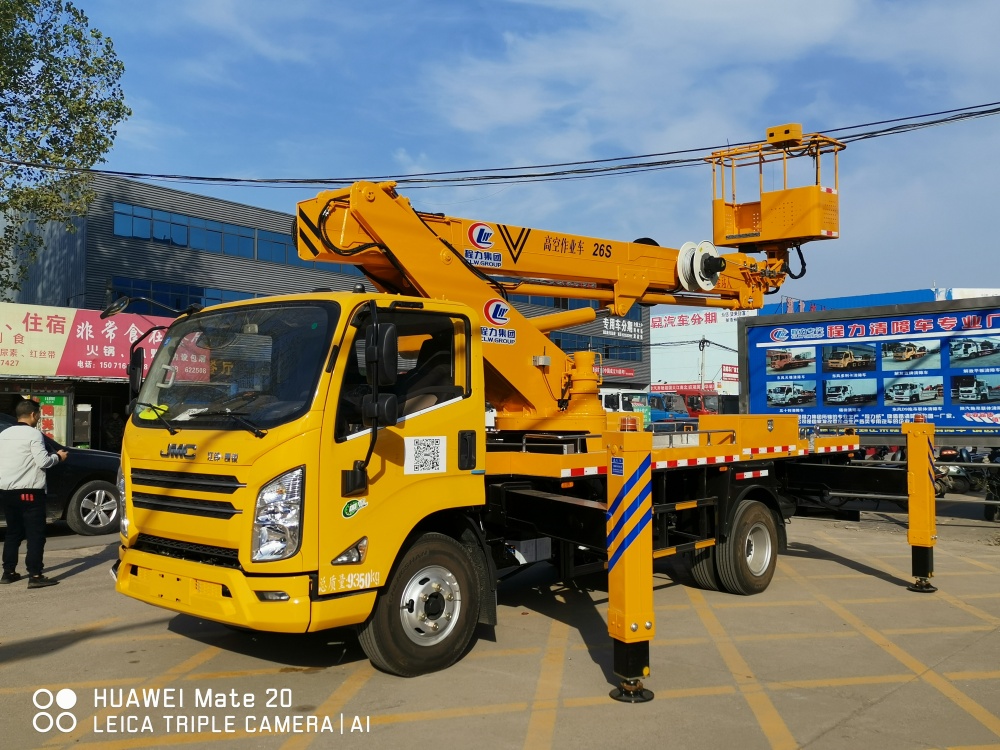

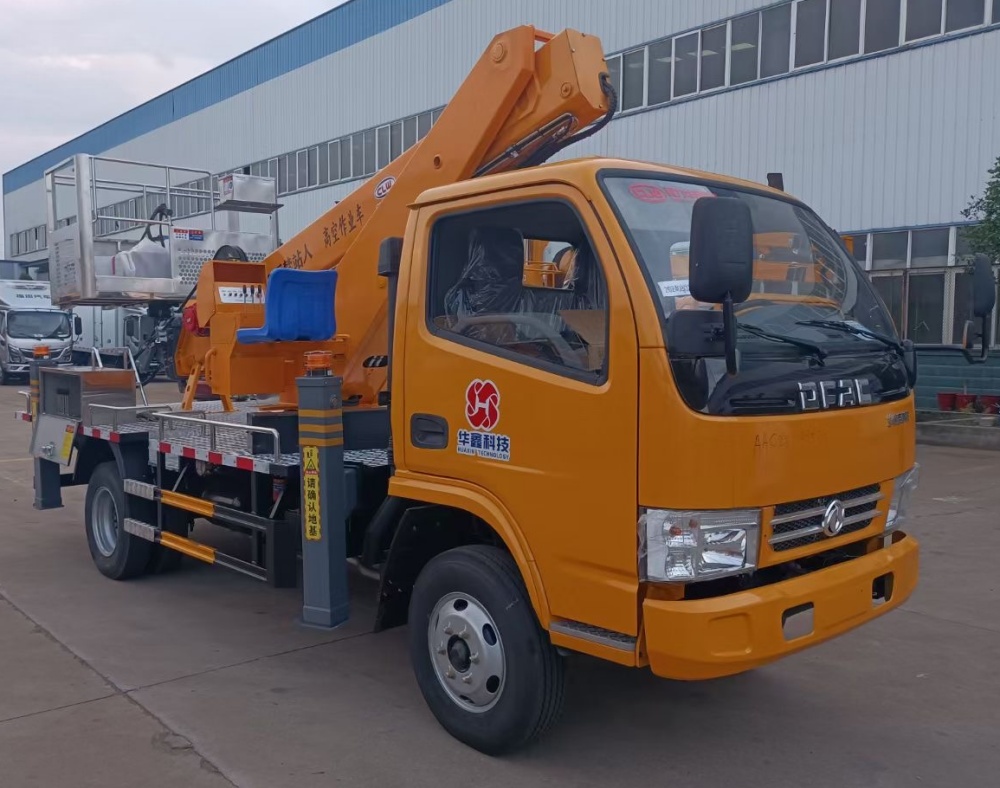

Bucket truck is a kind of hydraulic two jointed folding-jib aerial working platform built on second category of chassis with the advantages of simple structure, convenient operation and good performance which can be widely uses in many kinds of work high above the ground such as city planning construction, electric power, street lamp, advertisement, photography, communication, park, traffic, etc.
Main structures of van bucket truck:
*PTO
* Working boom
*Slewing gear
*Centre revolving joint
*Equalizer assembly
*Hydraulic system
*Operations area
The lifting equipment of bucket truck which can lift one tonnage load is operated easily.

Bucket Truck Specification
Truck type: bucket lift truck
Chassis model / manufacturer: EQ1090/Dongfeng
Engine model/manufacturer/horsepower/displacement: YC4102-E3C /Chaoyang /120HP/3856ml
Transmission model / manufacturer / gears: DF5s/Dongfeng/5gears
Wheelbase: 3800mm
Tire numbers / specification: 6+1spare tire/8.25-16
Cabin: with five seats, radio, color optional
Max working height: 15.5m
Max platform height: 14m
Max working range: 5.7m
Rated loading weight for platform: 140kg
Person allowed by platform: 2
Size of platform: 3.37x1.8x0.4m
Turning angle: 360°
Type and quantity of booms: H type/4units

12-24M bucket trucks with various engine horsepower or chassis are available.
