ISUZU garbage compactor truck is a kind of special garbage truck designed for collecting and transporting wastes for community and town, etc. ISUZU garbage compactor truck adopts high technicals, sealed no leakage, avoiding the second time pollution. And the rear turning mechanism can turning 2 sets of plastic 240L square wates bins. And the filling packer is with manual type and automatic type. ISUZU garbage compacting vehicle is with large compression ratio, fast speed to collecting wastes, flexible, easy operation, etc.

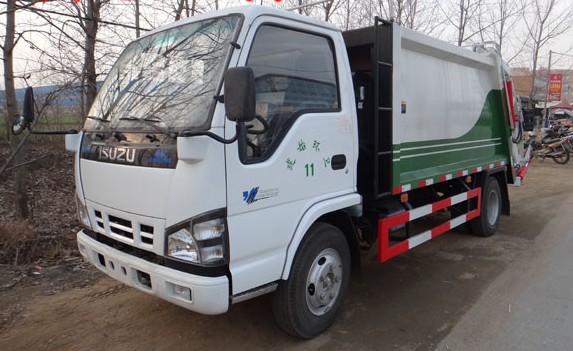

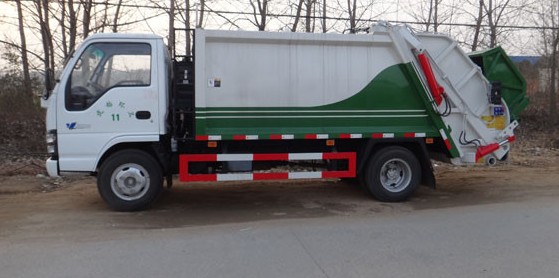

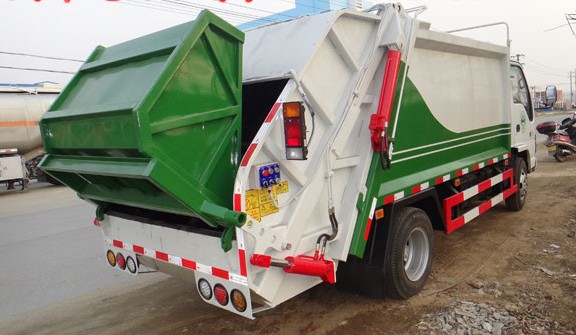

The pictures of ISUZU garbage compactor truck
ISUZU compressed garbage truck 5cbm for sale
The main parameters of ISUZU garbage compactor truck
ISUZU refuse garbage truck chassis model: QL1070A1HAY
Overall dimension (L*W*H): 6250,6550×1990×2550 (mm)
Wheelbase: 3360mm
Front/rear tread (mm): 1385/1425
Front/rear suspension(mm): 1005/1730
Approach/departure angle: 24/15
Mini ground clearance: 190mm
Mini turning diameter: 15.0m
Max climbing: ≥30%
Oil consumption: 12L/100Km
Wastes garbage van volume: 5.5cbm
Total mass: 7300kg
Front/rear axle load(kg): 2790/4510
Tyre: 7.00-16 14PR,
Filling opening dimension: 1450*450(mm)
filling opening height: 1000mm
filling packer volume: 1.1cbm
System working pressure: 16MPa
Loading working cycle time≤25
discharging working cycle time≤45
Emission standard: Euro 4
The technical parameters and structure advantages of ISUZU compression garbage truck
First, ISUZU garbage compactor truck adopt high quality 5mm thickness Q235A sheets. And several trucks and volumes for different people.
Second, the density can reach 200-400Kg/m3 through compression, and if the household wastes can reach 400-600Kg/m3 after compacting.
Third, there is waste water collector at the bottom of the filling packer. So the wastes water can flow to the waste water collector. And can be discharged through the ball valve, avoiding the second time pollution, largely improving the transporting efficiency. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
