HOT SALE! DONGFENG cargo truck with crane 5Tons for sale
customized 5Tons dongfeng truck with crane for sale
High quality and best price Dongfeng mobile crane truck for sale

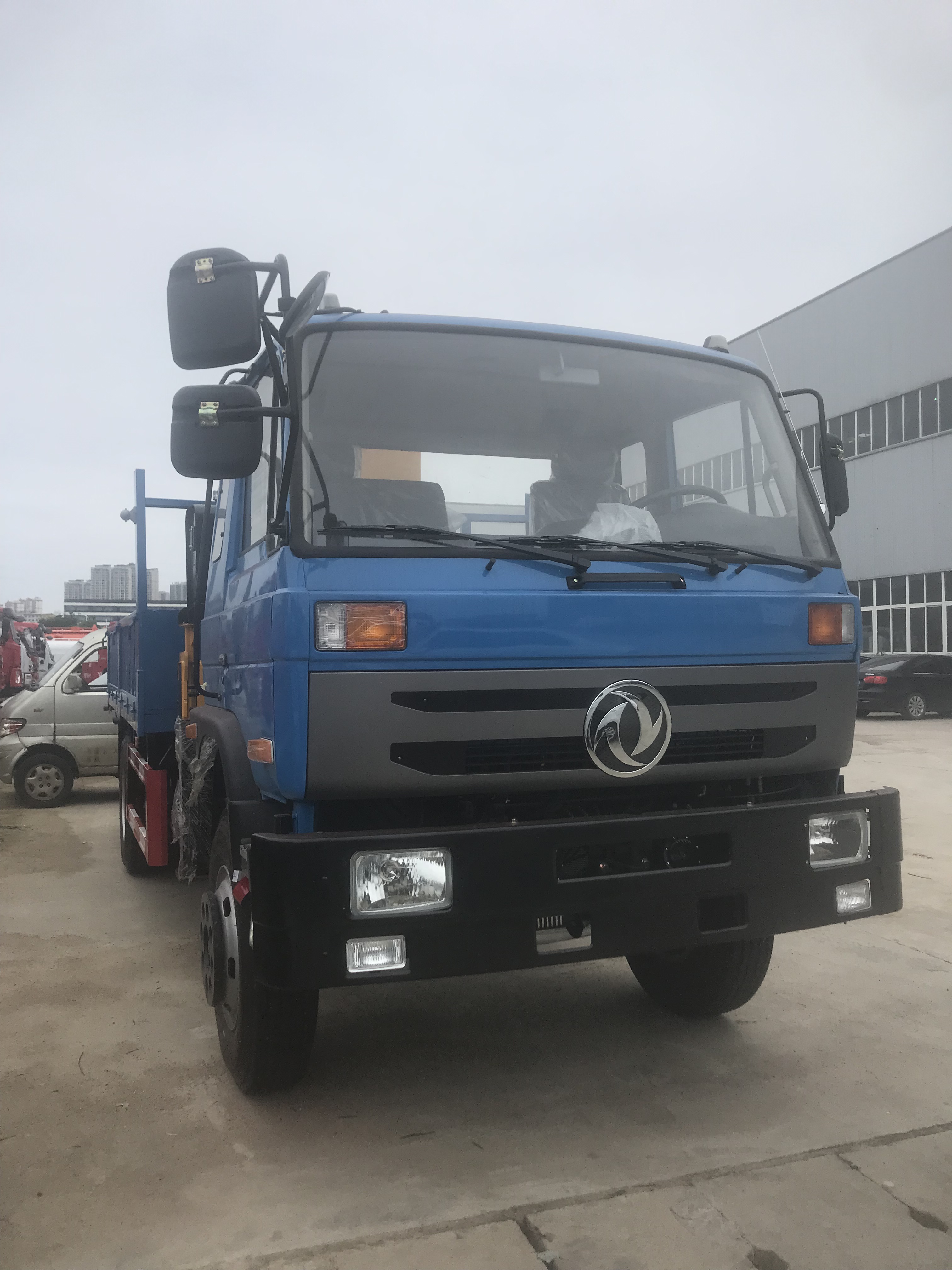

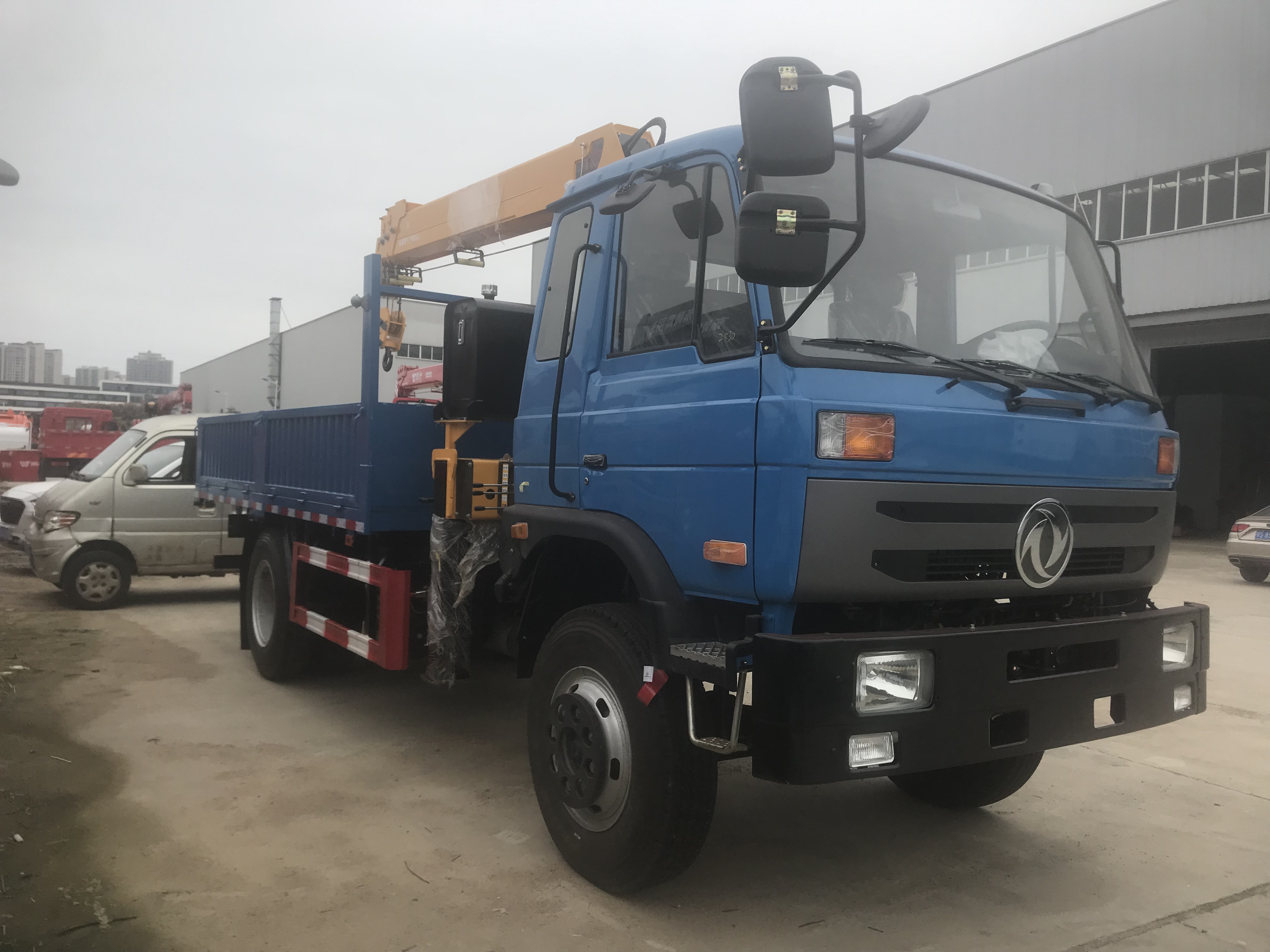

main technical parameters of DONGFENG 145 truck with crane is as below.
| Product name | Dongfeng 145 6.3tons XCMG telescopic boom mounted on truck for sale | |
| Chassis type | EQ1110 | |
| Parameters | Overall dimension length/width/height (mm) | 7500×2500*3950mm |
| Cargo body dimension (L*W*H)(mm) | 4300/4500×2294×600(mm) | |
| GVW(kg) | 11495(Kg) | |
| Kerb Mass(kg) | 6900(Kg) | |
| Rated mass(kg) | 4400(Kg) | |
| Approach angle/ Departure angle(mm) | 24/16 (°) | |
| Front suspension/rear suspension(mm) | 1450/2100 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | B170 33 |
| Displacement/Power(kw) | 5900ml/125KW/170hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 6-in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3950 | |
| Tread(front/rear) | 1250/2050(mm) | |
| Front axle | 3.6Ton | |
| Rear axle | 9 Ton | |
| Transmission | 6 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng 153 luxurious driver cab | |
| Number of spring axle(front/rear) | 8/11+8 | |
| Tire Type | 9.00-20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 4300/4500*2294×600(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW/XCMG brand 5tons telescopic boom | |
| The color of the whole truck is upon request. | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
