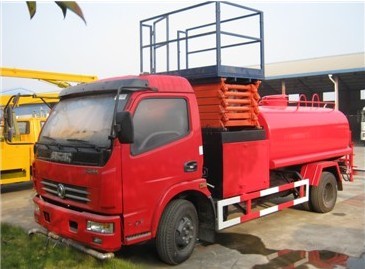

| Water tanker truck with bucket lift | |||
| Chassis model | EQ1060TJ20D3 | Total mass(Kg) | 6495 |
| Overall dimension(mm) | 5990×1960×2380 | Rated mass(Kg) | 3250,3315 |
| Approach/departure angle | 17/13 | Curb mass(Kg) | 3050 |
| Front/rear suspension(mm) | 1032/1658 | Max speed(km/h) | 90 |
| Engine model | Manufacturer | Displacement | Power |
| YC4F90-30 CY4102-C3F SD4BW70-3R | Yuchai Chaochai Sida | 2659 3856 2545 | 66 70 70 |
| Fuel type | Diesel | Emission standard | Euro Ⅲ |
| Axles | 2 | Tyre no. | 6 |
| Wheelbase(mm) | 3300 | Tyre | 7.00-16,6.50-16,7.00R16, |
| Axle load(kg) | 2620/3875 | Front tread(mm) | 1506 |
| Springs | 8/9+5,6/8+4 | Rear tread(mm) | 1466 |
| Functions | The vertical sucking distance is more than 7m, the spraying width is more than 14-16m, and the range is more than 28-30m, water raising capacity is about 60m, water drawing time is less than 5mins, the water flow is 90cbm/h. The water tank is with front washing, rear sprinkling and side spraying, with rear working platform installed with sprinkling water cannon( can be adjusted), equipped with firefighting couplings, self-discharging valve, filter, etc. The tanker volume is 5cbm, | ||

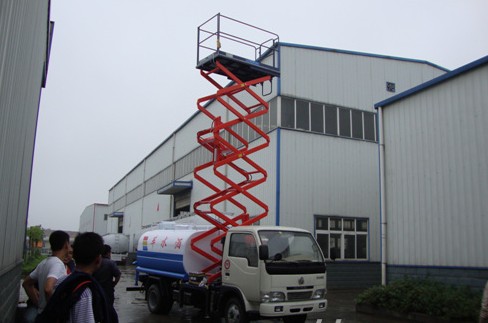

| Special devices | The water tanker equips with the high quality large power special water pump(CLW65QZF—40/45). It is made up of PTO, ball valve, filter, pipeline, water sprinkling device, etc. There is a folded Scissor type bucket lift platform, the lifting height can reach 6-12m. | ||
Chengli Special Automobile Co., Ltd. could manufacture and sell water tank with bucket lift, cargo truck with bucket lift, etc. RHD trucks, etc. We can design and manufacture the trucks according to customers' requirement.
Chengli Special Automobile Co., Ltd. is the leading manufacturer of water truck, fuel truck, dump truck, garbage truck, refrigerated truck, sewage suction truck, concrete mixer truck, truck mounted crane, LPG tank truck, semitrailer, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
