Customized SINO TRUK HOWO 4*2 RHD 16M telescopic aerial working platform truck for Africa
Customized SINO TRUK HOWO 4*2 RHD 16M telescopic aerial working platform truck for sale, adopts SINO TRUK HOWO 1880mm4*2 RHD single row driver cab, 3360mm wheelbase, YN4102QBZL 116hp diesel engine, 2.4T front axle/4.2T rear axle, WLY646 6 speed gearbox, 7.00R16 rail tires,
The devices of the HOWO brand telescopic aerial working platform truck adopts 3 sections quadrilateral telescopic crane boom, the max working range is 9.1m, the max working height is 16m; the working range is 4.4m at the max working height, 360°full rotation; front V type outriggers and rear H type outriggers, Horizontal span of the outrigger is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm.the rated loading capacity of the high altitude bucket ≤200㎏; while the dimension of the bucket is 1100X650X1150 (mm). Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit.

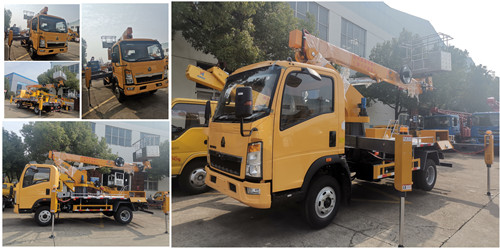

More pictures of SINO TRUK HOWO brand 4*2 RHD telescopic overhead working truck for sale(16m) manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! SINO TRUK HOWO brand 4*2 RHD telescopic overhead working truck for sale(16m) for Africa
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of high altitude operation truck, aerial working platform, overhead working truck, , Aerial work platform lift, Aerial platform truck, truck mounted aerial platform, aerial work platform, hydraulic beam lifter, bucket truck, bucket boom truck, truck mounted aerial lift, telescopic platform truck and aerial working platform(truck mounted) in China. With many years’experience in supplying, Chengli Special Automobile Co., Ltd. could design and supply ISUZU aerial working platform vehicle, ISUZU telescopic overhead working truck, Dongfeng high altitude operation truck, JMC bucket truck, JAC truck mounted aerial lift, Foton Auman aerial working platform truck, IVECO Yuejin bucket truck, forland truck mounted aerial lift, etc.
More information, please feel free to contact Ms. Anita. The hot sale line is 0086 13329899995.
Main technical parameters of SINO TRUK HOWO RHD 16m telescopic high altitude ladder vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Whole Truck Main Technical Parameter ( CLW5040JGKZ3) | ||||
| Product Name | SINO TRUK HOWO brand 4*2 RHD telescopic overhead working truck for sale(16m) | Gross Vehicle Weight (kg) | 4495(Kg) | |
| Curb Weight (kg) | 4300 (Kg) | Overall Dimension(mm) | 5995×2250×3300(mm) | |
| Working Height(m) | 16m | Cab Allowed Persons | 3 | |
| Axle No. | 2 | Wheelbase (mm) | 3360mm | |
| Chassis Technical Parameter | ||||
| Chassis Model | ZZ1047 | Chassis Name | Truck Chassis | |
| Chassis Brand | SINO TRUK HOWO brand | Manufacturer | SINO TRUK HOWO company | |
| App./ Dep. Angle(º) | 18/15(°) | Tire Spec. | 7.00 rail tires | |
| Leaf Spring No. | ,11/9+7 | Front/rear suspension (mm) | 1065/2045(mm) | |
| Fuel Type | Diesel | Front/rear tread(mm) | 1160/1235(mm) | |
| Drive Type | 4x2 | Driver cab | HOWO 1880mm single driver cab （RHD） | |
| Steering Type | Power steering | Gear Box | 6 speed gearbox, Manual | |
| Brake | Air cut brake | FUEL type | Diesel | |
| Max speed(km/h) | 95km | Front/rear axle | 2.4ton/4.2ton | |
| Engine Technical Parameter | ||||
| Engine Model | YN4102QBZL | Emission Standard | Euro Ⅲ | |
| Displacement ( ml ) | 3760 ml | Power (KW) | 85KW/115hp | |
| Work platform parameter | 1. the rated loading capacity of the high altitude bucket ≤200㎏, while the dimension of the bucket is 1100X650X1150 (mm). | |||
| 2, 3 sections quadrilateral telescopic crane boom | ||||
| 3, max working range is 9.1m. | ||||
| 4, max working height is 16m | ||||
| 5, working range is 4.4m at the max working height | ||||
| 6, 360°full rotation. | ||||
| 7, front V type outriggers and rear H type outriggers, Horizontal span of the outrigger is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm | ||||
| 8, Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit. | ||||
| 9 the truck color upon request, free to paint company logo | ||||
