Customized FOTON 4*2 LHD 2T dump tipper truck for Guatemala
One unit of FOTON Brand 4*2 LHD 2tons dump tipper truck customized for clients from Guatemala.
Foton brand 4*2 LHD 2T dump tipper truck adopts FOTON double cabs driver cab, 4*2 LHD( left hand driving), BJ493ZLQV1 80KW/108hp diesel Euro 3 engine, 5 speed gearbox, 5T rear axle, 3360mm wheelbase, etc.
The overall dimension(L*W*H) of FOTON brand 4*2 LHD double cabs dump tipper truck is 5875*1915*2230(mm); while the tipper box dimension(L*W*H): 2800*2000*500(mm). Rear door open type, double middle cylinders lifting and tipping, 3mm thickness for side sheet and 4mm thickness for bottom sheet.

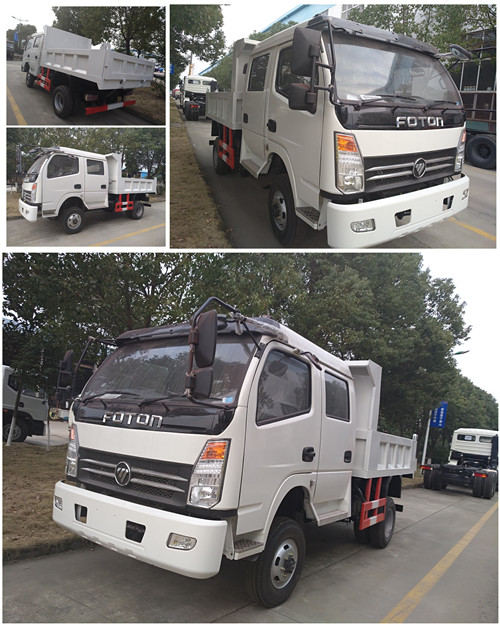

More pictures of customized FOTON brand 4*2 LHD double cabs dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! FOTON brand double cabs dump tipper truck for Guatemala
Main technical parameters of Foton 2T-3T dump tipper truck as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | FOTON Brand 4*2 LHD double cabs 2T-3T dump tipper truck for sale |
| Drive Type | 4*2, LHD | |
| Loading capacity | About 2tons-3tons | |
| Gross Vehicle Weight(kg) | 4495kgs | |
| Curb Weight (kg) | 2720kgs | |
| Rated weight(kgs) | 1490kgs | |
| Overall Dimensions L*W*H(mm) | 5875*1915*2230 | |
| Engine | Engine Model | BJ493ZLQV1 |
| Fuel Type | Diesel | |
| Power | 80kw/108HP | |
| Emission Standard | Euro Ⅲ | |
| Displacement(ml) | 2777 | |
| Chassis | ChassisBrand | foton |
| Front/Rear Axle Load(KG) | 5tons rear axle | |
| Tire No. | 6 | |
| Tire Specification | 7.00R16 rail tires, | |
| Wheelbase (mm) | 3360mm | |
| Axle No. | 2 | |
| Gear Box | 5 speed gearbox | |
| Front/rear suspension(mm) | 1100/1690 | |
| Front/rear tread(mm) | 1500/1490 | |
| Leaf Spring No. | 3+1/6+7 | |
| Driver cab | Foton brand double cabs driver cab | |
| Tipping system | Box inner dimension(mm) | 2800*2000*500 |
| Box material | Carbon steel,side 3mm,bottom 4mm | |
| Hydraulic cylinder no.(set) | 2 | |
| Hydraulic cylinder position | At the center of the truck bottom | |
| Discharge type | Rear opening and tipping |
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
