Dongfeng tianjin 4*2 RHD road sweeper vehicle for Pakistan railway
Recently, a batch of dongfeng tianjin 4*2 RHD 190hp diesel road sweeper trucks are finished, They are ready for shipping to Pakistan.

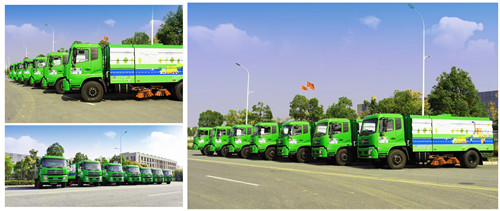

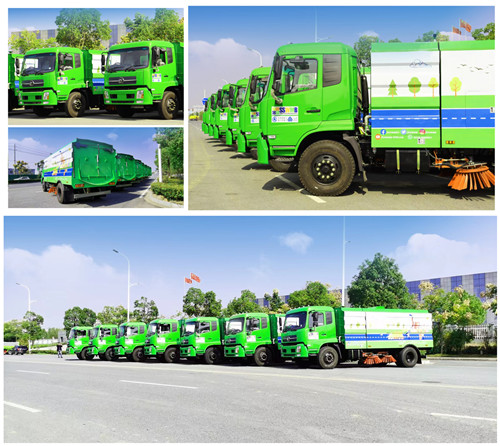

Look at the customized dongfeng tianjin 4*2 RHD 190hp diesel road sweeper trucks as below.
HOT SALE! Dongfeng tianjin 4*2 RHD street sweeper truck for sale
High quality and best price Dongfeng road sweeping vehicle for sale
The road sweeper trucks manufactured are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
| 4 sets * road sweeping brushes; CUMMINS auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose. Main technical parameters of dongfeng Tianjin road sweeping vehicle as below | ||||
|---|---|---|---|---|
| Truck model | CLW5168TSLD5 road sweeper truck | Remark | ||
| Chassis model | DFL1160BX1V | |||
| Wheelbase | 4500 mm | |||
| 4700 mm | ||||
| Front/rear suspension | 1430/2000 mm | |||
| Engine model | Chassis engine | ISD210 50；ISD190 50；ISD180 50；EQH180-52； EQH180-53；ISB180 50；ISD270 50 | ||
| Auxiliary engine | B140 | |||
| Engine rated power | Chassis engine | 155；144；132；132；132；132；198 kW | ||
| Auxiliary engine | 103 kW | |||
| Max grade | 30% | |||
| Emission standard | Euro V/Euro Ⅲ | |||
| Max speed | 98 km/h | |||
| Approach angle | 20° | |||
| Departure angle | 12° | |||
| Mass | Curb mass | 8500 kg | ||
| Total mass | 15800 kg | |||
| Dimension | Overall dimension(L*W*H) | 7930×2500×3120 mm | ||
| Mini ground clearance | 240 mm | |||
| Sucking and sweeping | Sweeping effectiveness | ≥95% | ||
| Maximum inhalation particle size | 120 mm | |||
| Sucking and sweeping width | 3.2-3.5 m | |||
| Max sweeping ability | 70000 m2/h | |||
| Disc-shaped brush overhang size | ≥400 mm | |||
| Driving speed when sweeping | 3-20 km/h | |||
| Water tank | Rated volume | 3.5 m³ | ||
| Dust tank | Rated volume | 8.0 m³ | ||
| Tipping angle of the dust tank | ≥85° | |||
| Discharging door opening angle | ≥48° | |||
| Hydraulic system | Type | Open-type, electric controlling | ||
| Main units | Gear pump, hydraulic motor, hydraulic cylinder, electromagnetic valve | |||
| System pressure | 16MPa | |||
| Hydraulic oil tank volume | 60 L | |||
| Oil temperature | 60 ˚C | |||
| Electrical system | Type | DC24 V | ||
| Voltage | 24 V | |||
| Storage batteries | 24 V（2 *12 V series） | |||
| Water spraying system | Main units | Electric diaphragm pump, water filter, nozzle, etc. | ||
| Sweeping disk | Type | Middle-installed four sweeping disks, hydraulic motor drive, right-front controlled separately, Automatic avoidance function | ||
| Diameter | 850 mm；950 mm | |||
| Angle | Forward leaning：4-6°; Extravert：4-7° | |||
| Sucking disk | Type | single suction, hydraulic control, spring suspension | ||
| Sucker diameter | 200 mm | |||
| List | Name | No. | Remark |
| 1 | Fire hose | 1 | Used for filling water |
| 2 | Fire wrench | 1 | Used for removing fire wrench |
| 3 | manual hydraulic pump joystick | 1 | Used for staring manual hydraulic pump |
| 4 | Water filter wrench | 1 | Used for removing water filter |
| 5 | Spare tire | 1 |
| List | Name | No. | |
| 1 | Brush | Integral brushing disk | |
| 2 | Fan seal | 1 | |
