Hot sale! DONGFENG TIANJIN 4*2 RHD 6.3T cargo truck with crane for sale
DONGFENG TIANJIN 4*2 RHD 6.3T cargo truck with crane for sale, adopts dongfeng Tianjin one row and a half driver cab, 4700mm wheelbase, Cummins B190 33 190hp diesel engine, 8 speed manual gearbox, power steering and air cut braking, 10.00R20 rail tires, 4700mm wheelbase.
And the overall dimension of Dongfeng Tianjin 4*2 RHD 6.3T truck with crane is 8600×2500×3790(mm), and the cargo body dimension of dongfeng Tianjin 5T cargo truck with crane is 5300×2294×550(mm).Clients choose high quality CLW Brand 6.3tons telescopic crane boom.

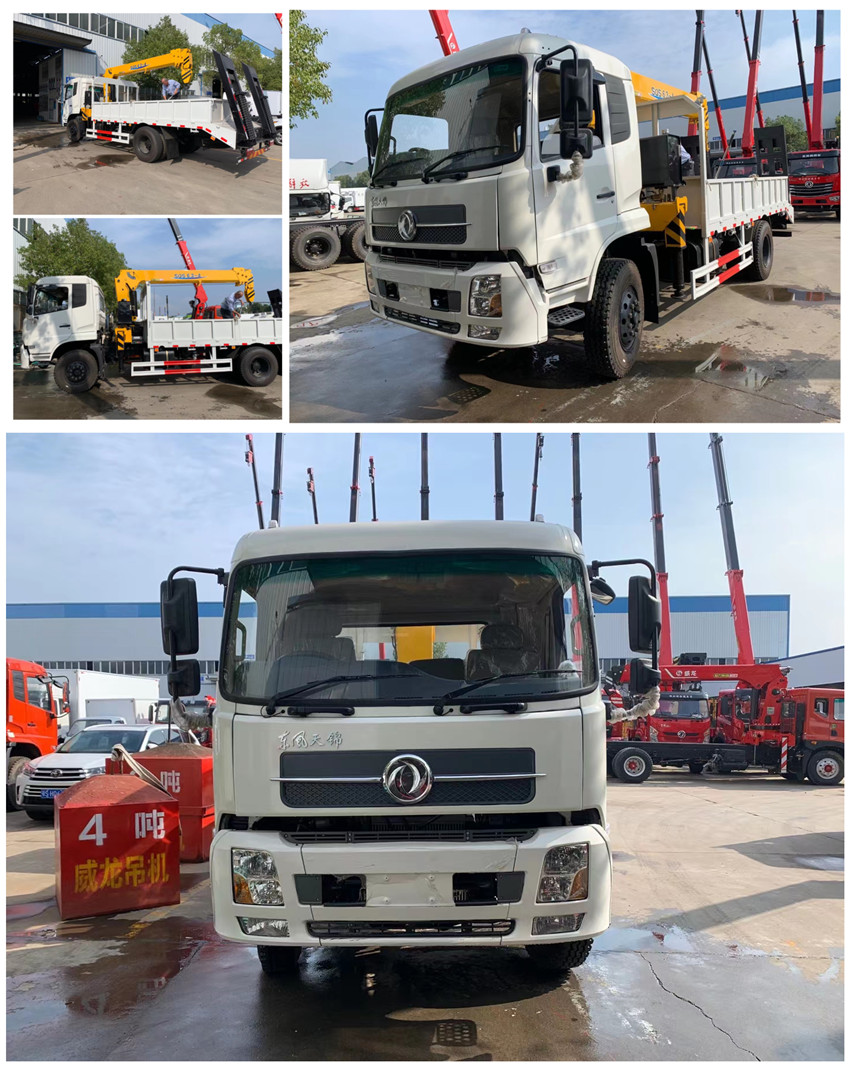

More pictures of DOngfeng TIANJIN 4*2 RHD 6.3T cargo truck with telescopic crane boom manufactured by Chengli Special Automobile Co., Ltd. is as below.
customized Dongfeng tiajin 4*2 RHD 6.3tons cargo truck with crane for sale
Main technical parameters of Dongfeng Tianjin 4*2 RHD cargo truck with crane as below.
| Product name | Dongfeng dongfeng Tianjin RHD 6.3tons telescopic crane boom mounted on truck for sale | |
| Chassis type | DFL1160 | |
| Parameters | Overall dimension length/width/height (mm) | 8600×2500×3790 |
| Cargo body dimension (L*W*H)(mm) | 5300×2294×550 | |
| GVW(kg) | 16000 (Kg) | |
| Kerb Mass(kg) | 8305,7805 (Kg) | |
| Rated mass(kg) | 7500,8000 (Kg) | |
| Approach angle/ Departure angle(mm) | 20/10 (°) | |
| Front suspension/rear suspension(mm) | 1430/2550 | |
| Fuel Type | diesel | |
| Max Speed | 80 | |
| Engine | Type | B190 33 |
| Displacement/Power(kw) | 5900hp/190hp | |
| Manufacturer | CUMMINS | |
| Chassis | Drive Type | 4*2 |
| Wheelbase(mm) | 4700 | |
| Tread(front/rear) | 1880/1860 (mm) | |
| Transmission | 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng Tianjin one row and a half luxurious driver cab | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00R20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5300×2294×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 6.3tons 4 sections telescopic crane boom | |
| Crane boom sections | 4 sections | |
| Working height(m) | 13.9m | |
| Working radius (m) | 11.9m | |
| There is ladder installing the rear cargo body The color of the cargo truck with crane is white color. | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
