Customized FOTON 4*2 Mini 2tons telescopic truck with crane for sale
Customized FOTON 4*2 LHD Mini cargo truck with crane, adopts FOTON brand dump tipper truck chassis, 3100mm wheelbase, 5 speed manual gearbox, 6.00R16 rail tires, Q23-95C60 70KW/95hp diesel engine, etc.
The overall dimension(L*W*H) of FOTON Brand diesel 2tons cargo truck with crane is 5560×1800×2490(mm); while the cargo body dimension(L*W*H) is 3100×1710×360(mm). Clients choose to install CLW brand 2tons telescopic/ knuckle crane boom.

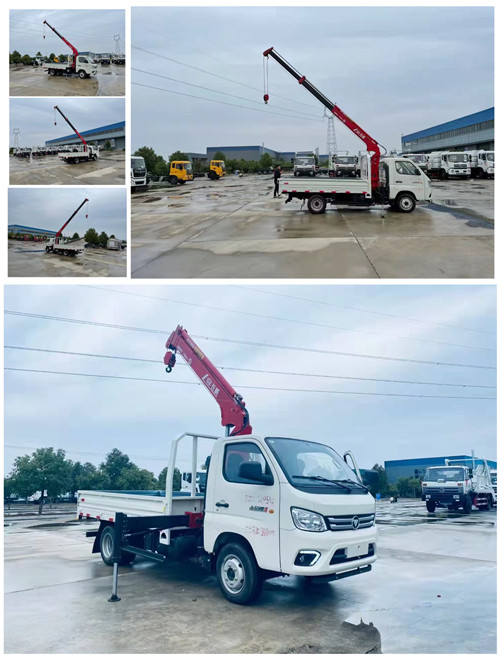

More pictures of FOTON mini 2tons diesel cargo truck with crane is as below.
customized FOTON mini cargo truck with crane for sale
Main technical parameters of FOTON mini cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Product name | FOTON 4*2 LHD 2 tons telescopic crane boom mounted on truck for sale | |
| Chassis type | BJ | |
| Parameters | Overall dimension length/width/height (mm) | 5560×1800×2490 |
| Cargo body dimension (L*W*H)(mm) | 3100×1710×360 | |
| GVW(kg) | 4495(Kg) | |
| Kerb Mass(kg) | 3100 (Kg) | |
| Rated mass(kg) | 1265(Kg) | |
| Approach angle/ Departure angle(mm) | 22/19 (°) | |
| Front suspension/rear suspension(mm) | 1075/1385 | |
| Fuel Type | diesel | |
| Max Speed | 88 | |
| Engine | Type | Q23-95C60 |
| Displacement/Power(kw) | 2300ml/70KW/95hp | |
| Manufacturer | QUANCHAI | |
| Emission standard | Euro 6 | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3100 | |
| Tread(front/rear) | 1445/1330 (mm) | |
| Transmission | 5 speed manual gearbox, | |
| Cab | FOTON single row driver cab | |
| Tire Type | 6.00R16 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 3100×1710×360 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 2T 2sections telescopic crane boom | |
| Lifting height | 7.2Mm | |
| Working radius | 5.54m | |
| The color of the whole truck is upon request. | ||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
