Customized HOWO 4*2 LHD 13cbm garbage compactor truck for Africa

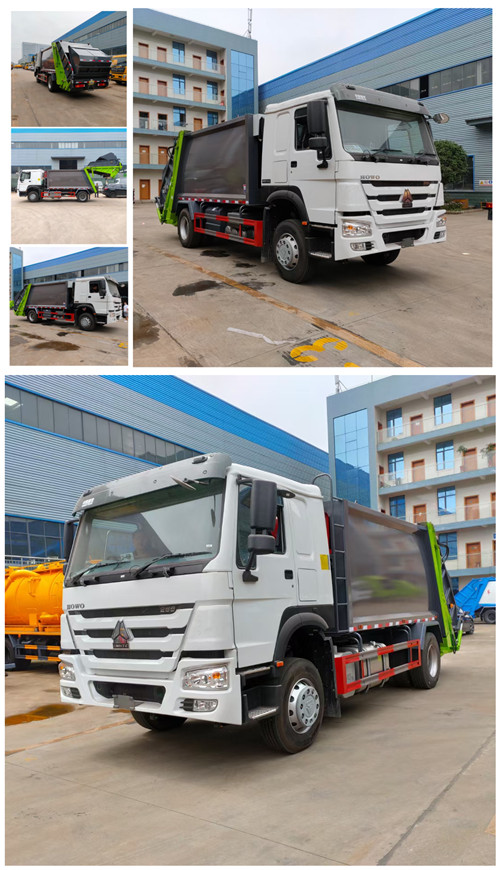

One unit of SINO TRUK HOWO 4*2 LHD 266hp diesel 13cbm compacted garbage truck customized for client from Africa. Look at the finished pictures of finished customized HOWO 13cbm compacted garbage truck is as below.
HOT SALE! Customized HOWO brand 4*2 LHD 13cbm garbage compactor truck for Africa
SINO TRUK HOWO 4*2 LHD 4*2 LHD 266hp diesel 13cbm garbage compactor truck adopts SINO TRUK HOWO HW76 new face truck head, 4*2 LHD driving, 4600mm wheelbase, WD615.92 196KW/266hp Euro 2 diesel engine, HW13710 10 manual gearbox, HF7 7T front axle/ST16 16T rear axle, 295/80R22.5 tires, etc.
The volume of SINO TRUK HOWO 266hp diesel garbage compactor truck is about 13cbm. and with the wastes loading capacity of about 8tons-10tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Main technical parameters of HOWO 13cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| 1 | Truck model | SINO TRUK HOWO 4*2 LHD garbage compactor truck |
| 2 | Truck chassis model | ZZZ1167 |
| 3 | Engine model | WD615.92 |
| 4 | Engine power | 196KW/266hp |
| 5 | Engine displacement | 9726 |
| 6 | Engine brand | Cummins |
| 7 | Engine emission standard | Euro Ⅲ |
| 8 | Oil consumption(L/100km) | 22L |
| 9 | Max speed | 90kw/h |
| 10 | mini turning diameter | 18m |
| 11 | Max Gradability | 25﹪ |
| 12 | Truck wheelbase | 4600（mm） |
| 13 | Wastes van volume | 12-14m3 |
| 14 | Fuel type | Diesel |
| 15 | Wastes hopper lifting angle | ≥45° |
| 16 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 17 | compacting way | Bi-directional compression; wastes compacting density≥0.8T/m³ |
| 18 | one working circle time for loading (s) | ≤22 |
| 19 | one working circle time for discharging (s) | ≤30 |
| 20 | Overall dimension(L*W*H) (mm) | 8765×2500×3300 (mm) |
| 21 | Curb mass（kgs） | 8870 |
| 22 | max compressing force | ≥150KN, |
| 23 | Color | Different color upon request |
