8 units of SINO TRUK HOWO 4*2 LHD 8cbm garbage compactor trucks customized for Africa
Total 8 units of SINO TRUK HOWO 4*2 LHD 8cbm garbage compactor truck customized for Africa
This model of garbage truck is under inspection before leaving Chengli Special Automobile Co., Ltd. Look at the finished pictures of SINO TRUK HOWO LHD 116hp 8cbm garbage compactor truck customized as below.
This SINO TRUK HOWO 4*2 LHD 8cbm garbage compactor truck adopts SINO TRUK HOWO light duty truck chassis, 3800mm wheelbase, YN4102QBZL YUNNEI diesel Euro 3 engine, 2.4tons front axle/7.2tons rear axle, 6 speed gearbox, 7.50R16 tires, air cut braking, etc.
The volume of the compactor garbage van is 8m3,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

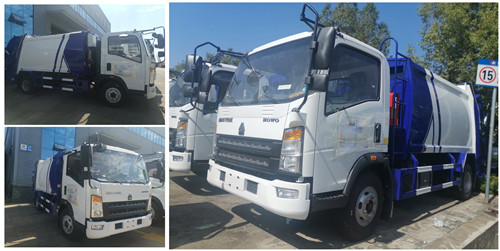

More pictures of SINO TRUK HOWO 8CBM garbage compactor trucks customized for clients from Africa are finished. Look at the finished pictures as below.
HOT SALE! customized HOWO LHD 8cbm garbage compactor truck for sale

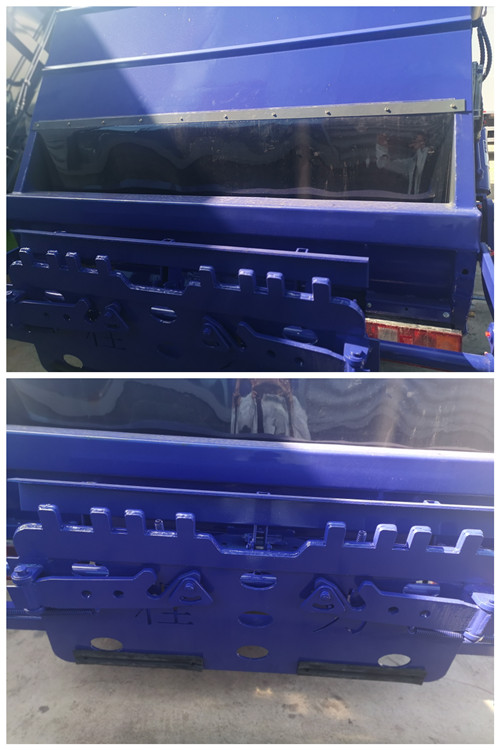

detailed picture for the HOWO compacted garbage truck for sale
The specification of SINO TRUK HOWO 8CBM garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 | Product name | SINO TRUK HOWO 4*2 LHD 8m3 garbage compactor truck |
| 2 | Truck chassis model | ZZ1107 |
| 3 | Overall dimension(L*W*H) | 7360×2300×3250 |
| 4 | Total mass(kgs) | 9990 |
| 5 | Curb mass(kgs) | 7000 |
| 6 | Driver cab person | 3 included the driver |
| 7 | Volume | 8m3 |
| 8 | Real loading capacity | About 5-6tons |
| 9 | Max speed | 95kw/h |
| 10 | Wheelbase | 3800 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | SINO TRUK HOWO L3W series 2080mm wide one row and a half driver cab |
| 13 | Approach/departure angle(°) | 18/15 |
| 14 | Front/rear suspension (mm) | 1240/2320 |
| 15 | Front/rear tread(mm) | 1585/1796 |
| 16 | Tire specification | 7.50R16 |
| 17 | Spring | 11/11+7 |
| 18 | Engine model | YN4102QBZL |
| 19 | Rated power | 75KW/116hp |
| 20 | Displacement(ml) | 3765ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 3 |
| 23 | Gearbox | 6 speed gearbox, manual |
| 24 | Front/rear axle | 2.7tons/7.2tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
