customized ISUZU 5T knuckle crane boom mounted on cargo truck for sale

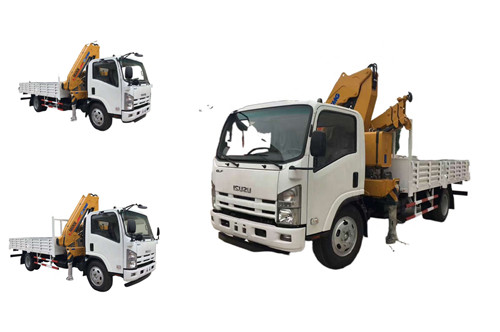

ISUZU 700P 4*2 LHD 5tons knuckle crane boom mounted on truck for sale
ISUZU 700P 5T truck with crane adopts ISUZU brand 700P 4*2 LHD truck chassis, 4475mm wheelbase, ISUZU MLD 6 speed manual gearbox, ISUZU 4HK1-TCG40 190hp Euro 4 diesel engine, 4tons front axle/7tons rear axle, 8.25-16/8.25R15 tires, ISUZU 700P single row luxurious driver cab with power steering and air conditioner, etc.
The overall dimension (L*W*H) of ISUZU 5T knuckle crane boom mounted on truck is 7950×2307×3100(mm), and the cargo body box dimension (L*W*H): 5360×2150×450(mm). Client chooses to install XCMG Brand high quality 5tons knuckle crane boom.
The specification of ISUZU brand 4*2 700P 5tons knuckle crane boom mounted on truck as below.
| Product name | ISUZU 4*2 LHD 5T knuckle crane mounted on truck for sale | |
| Chassis type | QL11009MARY | |
| Parameters | Overall dimension length/width/height (mm) | 7950×2307×3100(mm |
| Cargo body dimension (L*W*H)(mm) | 5360×2150×450 | |
| GVW(kg) | 10000(Kg) | |
| Kerb Mass(kg) | 5150 (Kg) | |
| Rated mass(kg) | 4655(Kg) | |
| Approach angle/ Departure angle(mm) | 20/10 (°) | |
| Front suspension/rear suspension(mm) | 1110/2365 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 110 | |
| Engine | Type | 4HK1-TCG40 |
| Displacement/Power(kw) | 5193ml/139KW/190hp | |
| Manufacturer | Isuzu | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4475 | |
| Tread(front/rear) | 1680/1650 (mm) | |
| Transmission | ISUZU MLD 6 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | ISUZU brand 700P single row driver cab | |
| Number of spring axle(front/rear) | 8/10+6 | |
| Tire Type | 8.25-16/8.25R15 tires | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5360×2150×450(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG 5tons 4sections telescopic crane boom | |
| Lifting height | 12.8m | |
| Working radius | 10.4m | |
| Aerial operation seat | Yes | |
| Hydraulic operation | Yes, full hydraulic operation | |
| Full rotation | Yes, full rotation | |
| The color of the whole truck is upon request. | ||
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc. The hot sale line is 0086 13329899995.
