HOT SALE! FOTON AUMARK day old chicks transported truck 250000 loading capacity for sale
FOTON AUMARK single row driver cab,
4*2 LHD, RHD optional
BJ493ZLQV1 80KW/109HP diesel engine, Euro 2 emission standard
5+1 gears,manual type
2.4T front axle/4.5T rear axle,
7.00R16 rail tires*6+1 spare
120L oil tanker,manual doors and windows and rear view mirror, etc.
Main technical parameters of day old chick van body
Heating system: Watering system Without, client choose to install
Cooling system: One refrigerated reefer China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab)
Ventilation system:
1, Air duct installed on the floor for air flow Two line as the pictures show
2,Cold air ducts on the two sides of the van body Client chooses to install
3,Blind windows 3 sets of blind windows for the left and right van sides (as the pictures show), 2 sets of blind windows for the front plate and rear door.
Blind Windows: 4*2+*2=10
4,electronic ventilator fans Client chooses to install
5,Sky-window Top mounted sky windows*2 Sky-windows: 2*1=2
Dimension
Chick van box body dimension(L*W*H): 4080mm*2000mm*2060mm
Refrigerated van box Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices;
Aluminum-patterned baseplate;

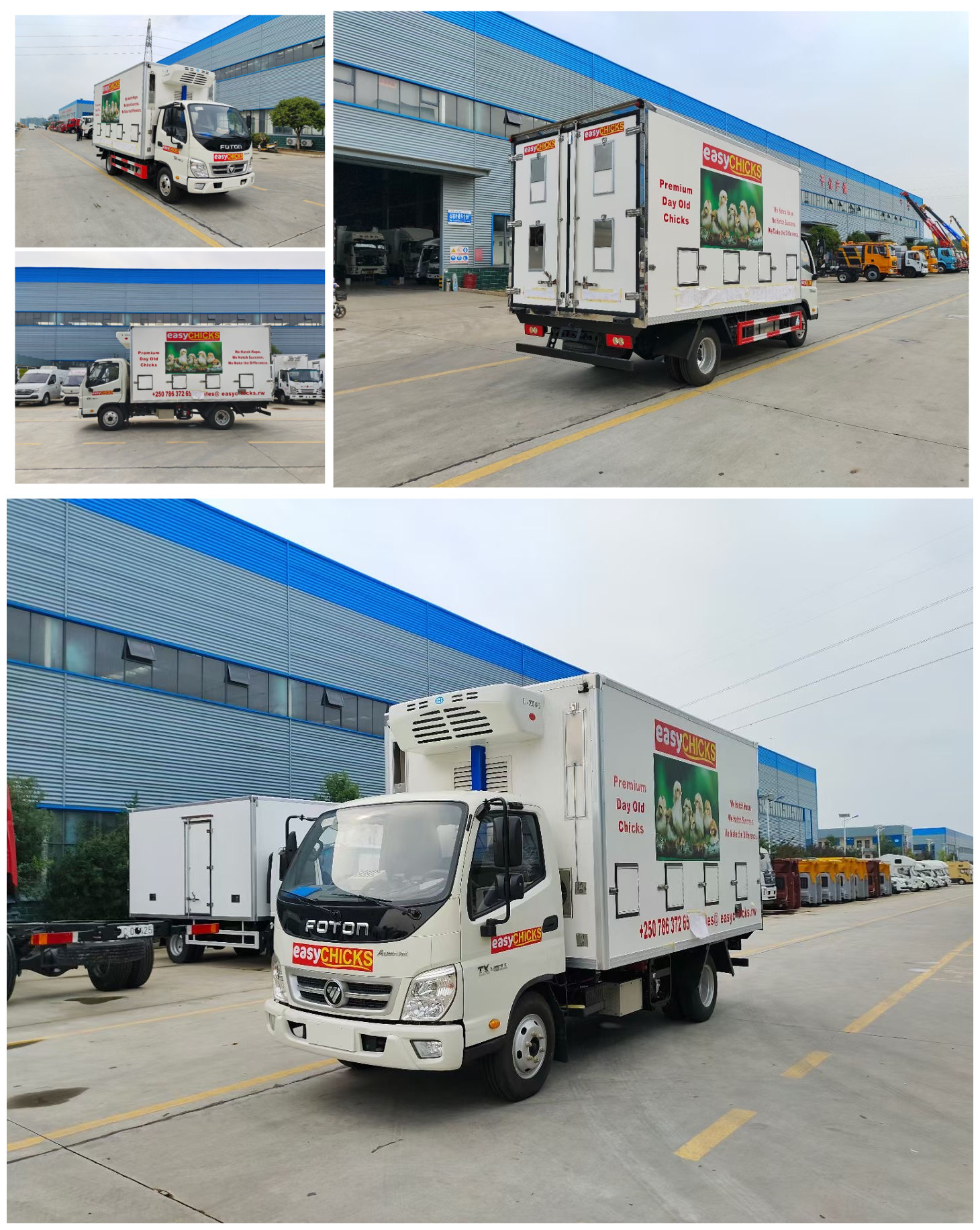

More pictures of FOTON AUMARK 25000 POULTRY day old chicks transported truck are as below.
Good price FOTON AUMARK day old chicks transported truck for sale
Main technical parameters of FOTON AUMARK 4*2 LHD poultry livestock babychicks transported truck is as below.
| Product name | FOTON AUMARK 4*2 LHD day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 5995×2310×3250 | Chick van box dimension(L*W*H)mm | 4085*2100*2100 (mm). |
| Drive type | 4*2 LHD | Total mass | 4495 |
| Gearbox | 5 speed transmission, manual | Tyre specification | 7.00R16 rail tyres *6+1 |
| Power steering | Yes | Exhaust braking | Yes |
| oil-cut braking | Yes | Driver cab | Foton aoling 1880mm driver cab |
| Engine | BJ493ZLQV1 | Emission standard | Euro Ⅴ |
| Rater power | 80KW/109hp | Displacement (ml) | 2771 |
Main technical parameters of day old chick van body
| Performance and consumption | |||
| Heating system | Watering system | Without, client choose to install | |
| Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Ventilation system | Air duct installed on the floor for hot air flow | Without, client choose to install | |
| Cold air duct installed on the double sides of the van body | Two lines as the pictures show | ||
| Blind windows | 3 sets of blind windows with smaller doors for the left and right van sides and bigger blind windows art the front plate (as the pictures show), Blind Windows:4*2+1=9 | ||
| electronic ventilator fans | 1, 4 sets of electronic ventilator fans for the rear plate door; Electronic fans: 4 | ||
| Sky-window | Top mounted sky windows 2 sets, Sky-window: 2 | ||
| Dimension | |||
| Chick van box body | Length | 4150mm | |
| Width | 1750mm | ||
| Height | 1750m | ||
| Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; | ||
