customized ISUZU brand 4*2 road sweeping and washing vehicle for sale

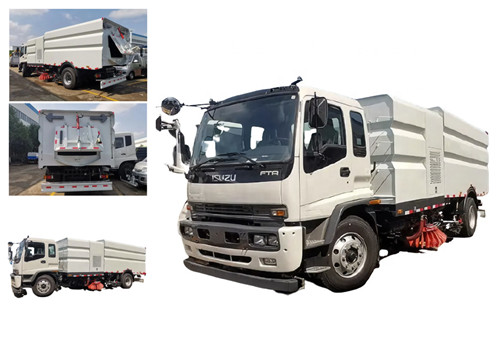

ISUZU brand 4*2 LHD road sweeping and washing vehicle for sale
main technical parameters of ISUZU brand road sweeping and washing vehicle as below.
| Item | Main parameters | ||
| Truck brand | ISUZU brand | ||
| Truck model | isuzu road washing sweeper for sale | ||
| Truck chassis | QL1100A8LAY | ||
| Emission standard | Euro Ⅴ | ||
| Engine | Truck engine | Truck engine | 4HK1-TC51 qinglingwushiling |
| Power (kw) | 141 | ||
| Horsepower (ps) | 191 | ||
| displacement(ml) | 5193 | ||
| Auxiliary engine | Engine model | B140 Dongfeng Cummins | |
| power(kw) | 102 | ||
| horsepower(ps) | 140 | ||
| Displacement (ml) | 3200 | ||
| Fuel type | Diesel | ||
| Basic parameters | Overall dimension(L*W*H) mm | 7430*2290*2750 | |
| Wheelbase (mm) | 4175 | ||
| Tires specification | 8.25R20 14PR | ||
| Tire now. | 6+1 | ||
| tread | Front tread(mm) | 1680 | |
| Rear read(mm) | 1650 | ||
| Seated person | 3 | ||
| Front/rear suspension (mm) | 1110/2145 | ||
| Approach angle | 20° | ||
| Departure angle | 11° | ||
| Ground clearance (mm) | 320 | ||
| Rated mass(kg) | 1500 | ||
| Curb mass(kg) | 8360 | ||
| Total mass(kg) | 10055 | ||
| Special parameters | Dust tank volume( m3 ) | 6（stainless steel material） | ||||
| Clean water tank volume( m3 ) | 5（stainless steel material） | |||||
| Sweeping width (mm) | 2800-3200 | |||||
| Sweeping speed (km/h) | 3-15 | |||||
| Working speed (km/h) | 15-20 | |||||
| Max cleaning ability (m2/h) | 48000 | |||||
| Suction capacity | Density (g/cm3) | 2.0 | ||||
| Mass (kg) | 1.5 | |||||
| Extraction granularity (mm) | ≥100 | |||||
| Dust tank dumping angle | ≥45° | |||||
| Cleaning efficiency | ≥96% | |||||
| Driving parameters | Driving type | 4×2 | ||||
| Suspension type | Steel spring | |||||
| Steel spring no. (front/rear) | 8/10+7 | |||||
| Braking type | Double loop pressure brake, drum type | |||||
| Braking distance (full load30km/h) | ≤10m | |||||
| Max speed(km/h) | 99 | |||||
| mini turning radius (m) | 8 | |||||
| Max Climbing slope | ≥30％ | |||||
| Clutch system | Single dry diaphragm spring clutch，hydraulic control | |||||
| Transmission system | Mechanical 5-speed transmission with Synchronizer, manual | |||||
| Engine oil consumption | Driving (L/100km) | Sweeping (L/h) | Sweeping (L/10000m2) | |||
| ≤12 | ≤6 | ≤3 | ||||
| Dust system | Spraying type | Low pressure fog | ||||
| Main component composition | German imported high pressure pump water filter line stainless steel nozzle nozzle, etc.. | |||||
| High pressure pump | GERMAN IMPORTED | |||||
| Installation position | Clean up the dust | Left-right front sweeping disc | ||||
| Sucking dust and dedust | Suction cup in the suction vent | |||||
| Control type | Electronic control, one-click operation | |||||
The functional advantages of CLW brand road sweeping vehicles manufactured by Chengli Special Automobile Co., Ltd. as below
1, Collecting wastes by sucking and sweeping, wet dust removal, electro-hydraulic control, hydraulic dumping and unloading operation mode to clean the road surface.
2, The auxiliary engine is used to drive the fan and hydraulic system to ensure continuous operation during the driving process and to ensure the continuity of the cleaning process.
3, the CLW brand road sweeper truck adopts the structure arrangement of "medium four-disc brush + rear suction nozzle" , which is convenient for the adjustment and maintenance of the cleaning device and the suction nozzle, and the vehicle passing performance is good when the transition occurs.
4, The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan during the no-load start and stop, reducing the impact on the auxiliary engine, and improving the working reliability and service life of the auxiliary engine.
5, According to different cleaning conditions, without increasing the throttle of the auxiliary machine, the three-speed speed control of the high, medium and low levels of the sweeping plate can be achieved, which can ensure good cleaning effect under various pollution conditions, and save fuel consumption and loss of bristles.
7,The fully floating nozzle can be automatically leveled with the road surface, which has good vacuuming effect and long service life.
8, Imported hydraulic valve block can ensure the stability and smoothness of the hydraulic operation of the whole vehicle.
9, High-quality hydraulic motor can ensure the working stability of the sweeping disc and long service life.
10, The ejected dust suction pipe made of imported raw materials can effectively prevent the dust suction pipe from being broken, cracked and increased, and the service life is increased. .
11, the precision seamless cold-bending hydraulic oil pipe has no oxidizing impurities on the inner wall to ensure the hydraulic oil circuit is clean and does not block the valve.
12, The high-performance engineering plastic spacer is used in the sweeping brush arm, which has good wear resistance, no butter and maintenance-free, saving manpower and material resources.
13, Stainless steel water tank and garbage bin can resist general corrosion and increase the service life of the cabinet.
14, The extra wide rear door and an opening angle greater than 85 degrees make it easier to dump the trash and clean the bin.
15, The dump bin tipping angle is greater than 46 degrees, making it easy to dump garbage.
16, Our CLW brand road sweeping truck can be equipped with front punch, back sprinkler, spray, self-cleaning reel, operation monitoring system, auxiliary suction device, snow shovel, etc.
