21m FOTON AUMARK high altitude operation truck for Jamaica
High quality customized 21m Foton AUMARK telescopic type aerial working platform vehicle for Jamaica,
21m telescopic aerial working platform truck FOTON AUMARK RHD for sale

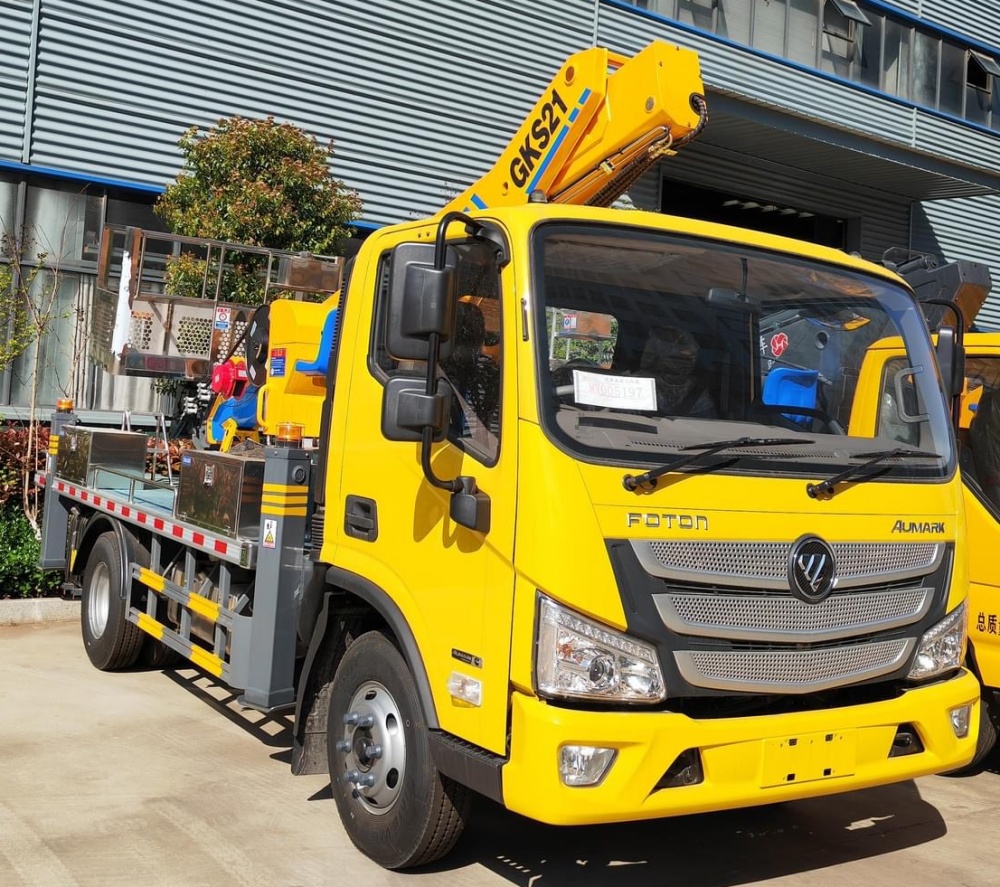

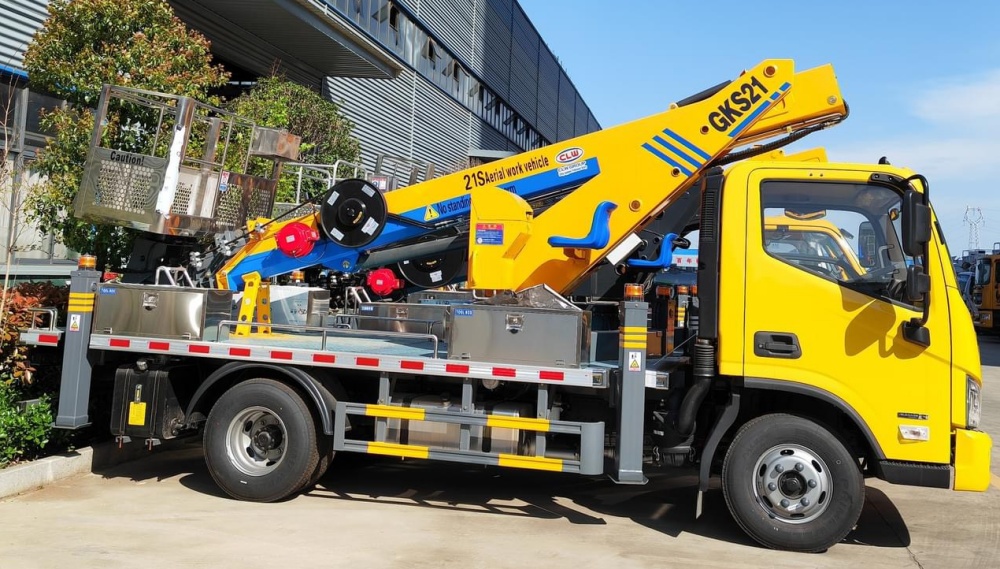

This FOTON AUMARK 21 meter high-altitude operating vehicle adopts a telescopic working arm structure. The operating arm is a 4-section telescopic type. The turntable can be operated or remotely operated. It can rotate 360 degrees, four hydraulic outriggers, and the maximum load-bearing bucket. 200 kg, stainless steel hoarding, pattern anti-skid walking platform.
21m working height for FOTON AUMARK RHD telescopic aerial working platform truck

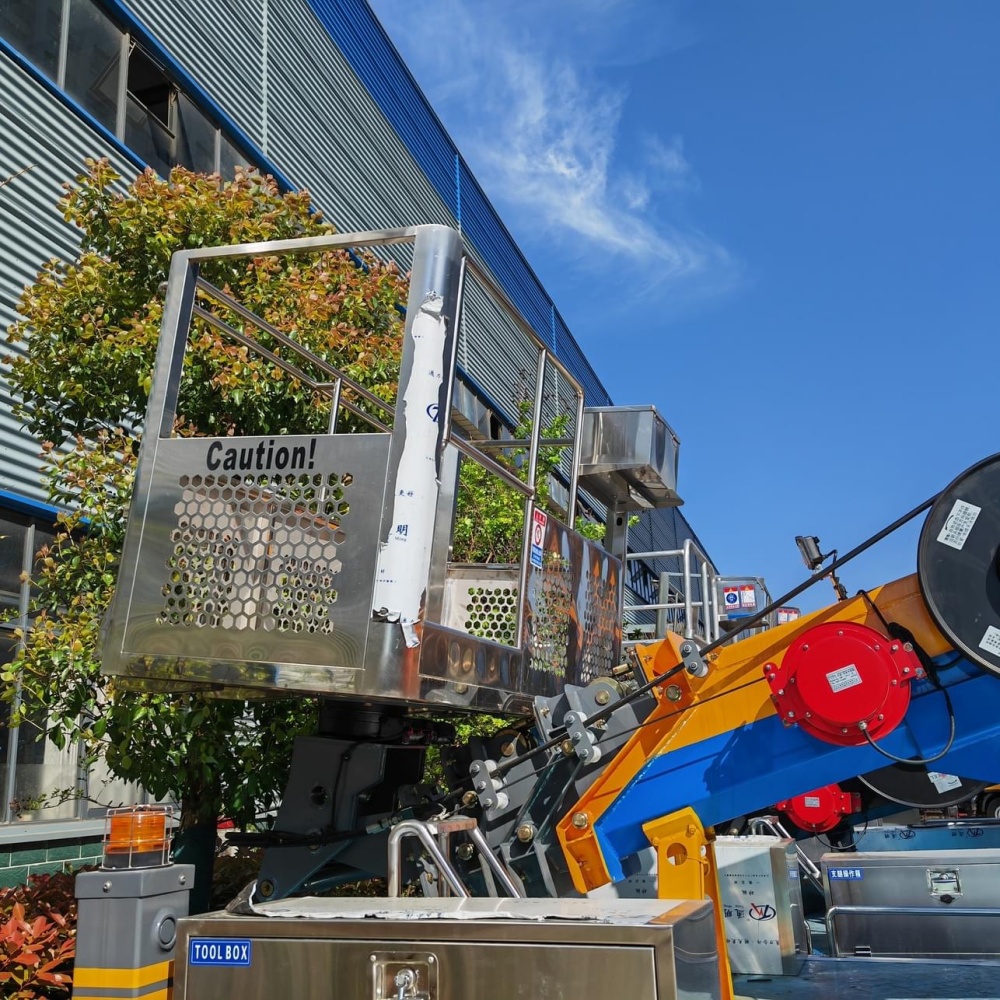

200kgs hydraulic cage for aerial working platform truck
CLW Brand telescopic boom aerial operating vehicle has operating heights of 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 23 meters, 28 meters, 29 meters, 32meters, 45 meters, telescopic working boom, large outrigger span, stability Good, can be operated simultaneously or separately, safe and reliable, compact structure, convenient operation, fast lifting speed, high work efficiency. It is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.
| Specification of Upper partial | |||
| Technical parameters | 1. Working altitude: 24 meters 2. The platform is ≥ 22.3m from ground 3. The maximum operating range of the platform ≥ 14m, 4. The job amplitude ≥ 2m at the maximum job height of the platform; 5. The job height ≥ 14.5m at the maximum operating amplitude of the platform 6. The maximum operating inclination of the platform is 80 degrees; 7.The work bucket is rated at 200kg | ||
| Boom structure: | Five six-sided (24 m) working arms, synchronous telescopic | ||
| Landing leg: | 1.Front V rear H type, individually adjustable, 2. 4untis 3.Control: independently adjustable and linkage 4. Front outrigger transverse span: 4190mm 5.Tilt: 120 6. Rear outrigger transverse span: 4230mm | ||
| Operation | remote control and platform control | ||
| We can produce the truck according to your needed, if you have any special demand about the truck, please feel free to contact Ms. Anita. The hot sale line is 0086 13329899995. | |||
The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.
