17.5m JMC brand new telescopic aerial working platform truck for Laos

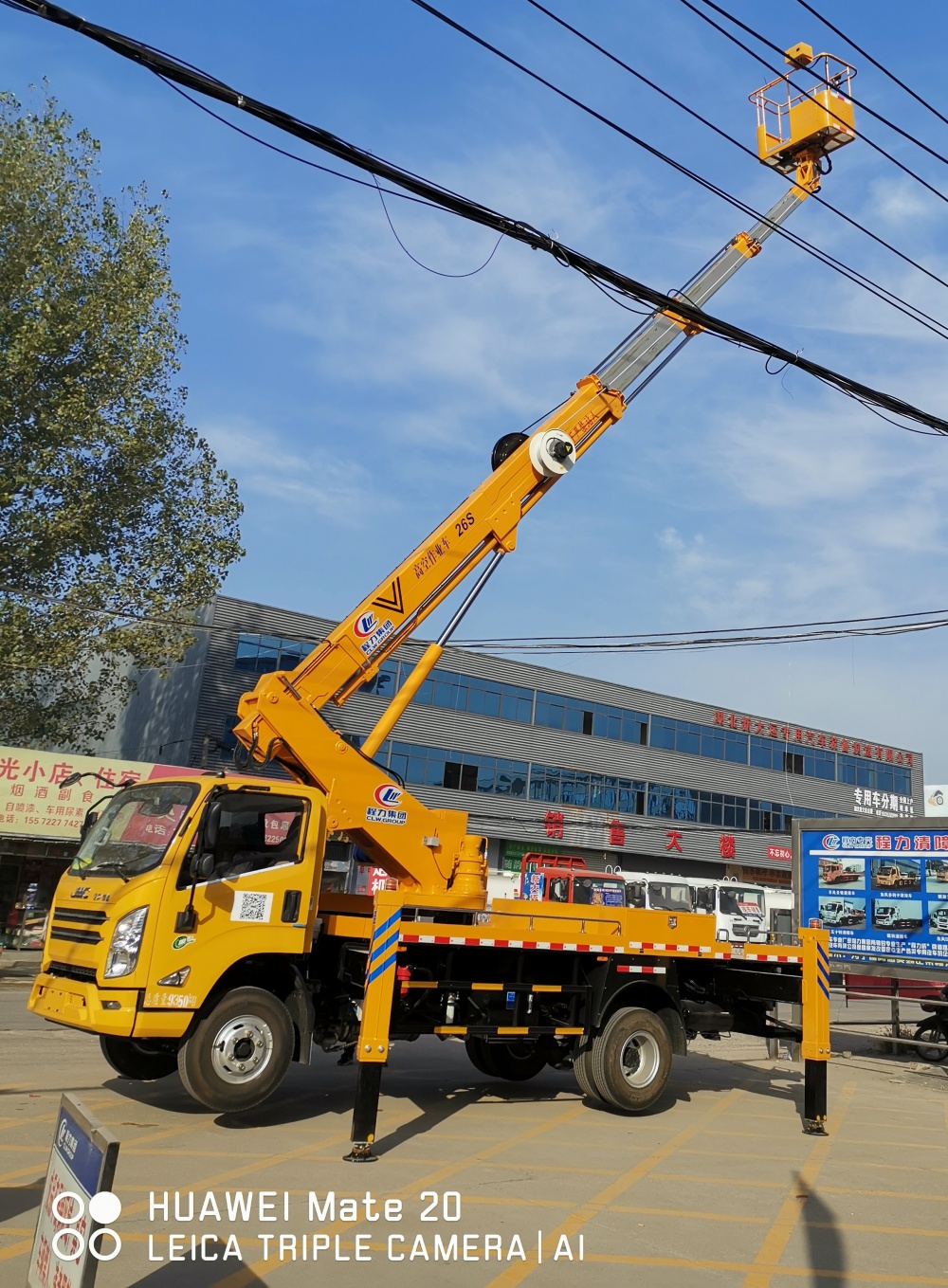

17.5m JMC brand 4*2 LHD telescopic aerial working platform truck customized for Laos is finished.
Item | Name | Specification/model |
1 | Product name | hydraulic bucket truck for sale |
2 | Truck model | CLW5046JGKJ6 |
3 | Chassis model | JX1041TG26 |
4 | Working height | 17.5M |
5 | Working techncial parameters | platform ground height≥15.3m platform max working range: Open-ended Flatform working height at the max working range: Open-ended Platform max working range at the max working height: Open-ended Plafrom max working Angle of Tilt: 80° Rated mass of the working bucket: 200kg |
Outriggers | Type: Front V + rear H type, Individually control Outriggers nos. : 4 Control: Individually control or Linkage control Transverse Span of front outriggers: 4170mm gradient：120° Transverse Span of rear outriggers: 3930mm
| |
Main operation | Operation positio: revolving stage,Teleoperation。 Control type： | |
6 | Coaming and platform | Stainless steel fence and Non-slip platform |
7 | Boom construction mode | Three-section six-sided working arm，Synchronous scaling |
8 | Rotator device | bidirectional 360°Continuous rotation, |
9 | Engine model | JX4D30B6H 85KW/116hp diesel engine JX4D30A6H/129hp diesel engine |
10 | Overall dimension(L*W*H) | 5998×2000×2900 |
11 | Total mass | 4495kg |
12 | Curb mass | 4365kg |
13 | wheelbase | 3360mm |

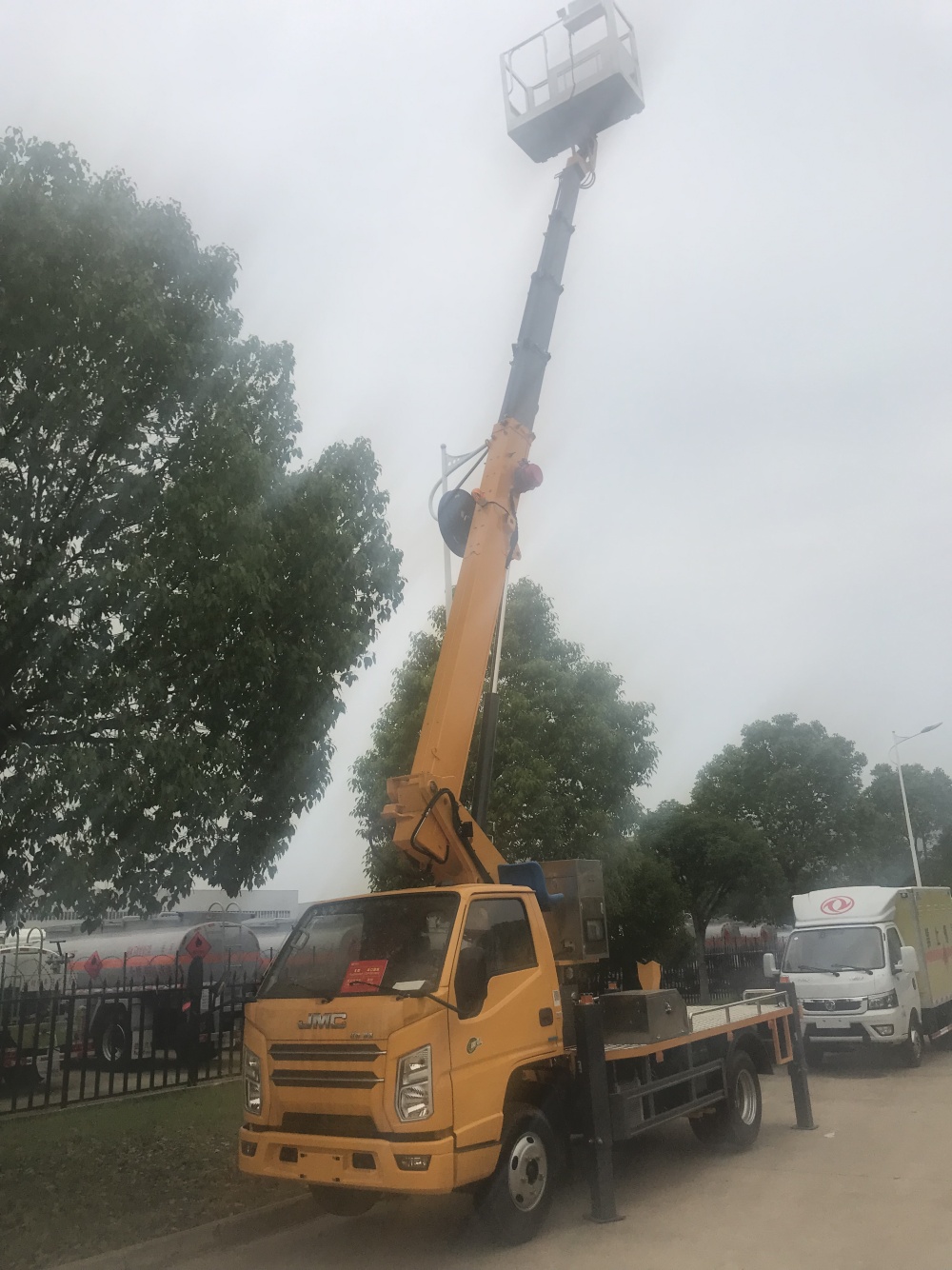

JMC brand 4*2 LHD diesel telescopic aerial working platform truck, adopts JMC single row driver cab, JX1041TG26 model, JX4D30B6H 85KW/115hp diesel engine, 3360mm wheelbase, 7.00R16 rail tires, 5 speed gearbox, power steering, oil cut braking, air conditioner, etc.
The upper part of JMC brand telescopic hydraulic bucket truck as below.
The working height is 17.5 meters, the color of the upper part is engineering yellow according to the announcement, with four hydraulic telescopic legs (up and down extension and horizontal extension), a total of 8 oil cylinders, the legs are front V and rear H type, emergency pump, bucket belt 360 degrees Rotation, wireless remote control, and others are prepared according to factory standards.
High quality and best price JMC aerial working platform truck for Laos
Customized JMC brand hydraulic bucket truck 17.5m for sale
Best price JMC overhead working platform truck 17.5m for sale
The technical features and advantages of GK17.5S 17.5m telescopic aerial working platform truck is as below.
A. The whole vehicle has compact structure, short outline size, convenient driving and flexible steering.
B. The whole vehicle adopts a fully electronic control system with multiple safety protection functions.
1. Each outrigger has a soft leg support ground protection function (optional).
2. The outriggers are locked. When the boom is working, the outriggers are not allowed to operate (restricted movement).
3. The body is equipped with a large-screen display, which can display arm length, working height, working range, and tilt angle.
4, Equipped with a wireless remote control, the operating arm frame is protected when getting on and off the car.
CLW straight boom aerial operating vehicle has operating heights of 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 21 meters, 28 meters, 29 meters, 45 meters, telescopic working boom, large outrigger span, stability Good, can be operated simultaneously or separately, safe and reliable, compact structure, convenient operation, fast lifting speed, high work efficiency. It is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.
