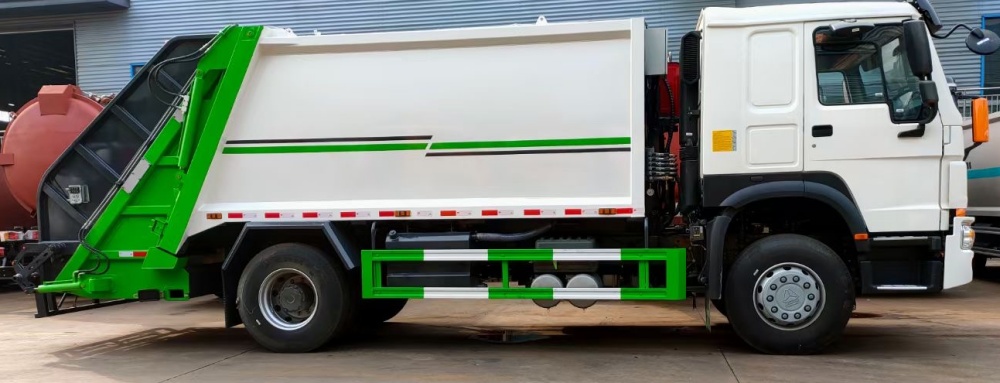

Recently, one unit of SINOTRUK HOWO 4*2 LHD refuse garbage truck is finished. It is customized for client from Ghana.
good price SINOTRUK HOWO refuse garbage truck 15cbm for Ghana for sale
Customized 15cbm refuse garbage truck SINOTRUK HOWO for African market
SINO TRUK HOWO 4*2 LHD 4*2 LHD 266hp diesel 14cbm garbage compactor truck adopts SINO TRUK HOWO HW76 new face truck head, 4*2 LHD driving, 4600mm wheelbase, 266hp Euro 2 diesel engine, HW13710 10 manual gearbox, HF7 7T front axle/ST16 16T rear axle, 295/80R22.5 tires,400L oil tanker, etc.
The volume of SINO TRUK HOWO diesel garbage compactor truck is about 15cbm. and with the wastes loading capacity of about 8tons-10tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Our CLW brand compactor garbage truck is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
Main technical parameters of HOWO 15cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| 1 | Truck model | SINO TRUK HOWO 4*2 LHD garbage compactor truck |
| 2 | Truck chassis model | ZZZ1167 |
| 3 | Engine model | WD615.87 |
| 4 | Engine power | 266hp |
| 5 | Engine displacement | 9726 |
| 6 | Engine brand | Weichai |
| 7 | Engine emission standard | Euro 2 |
| 8 | Oil consumption(L/100km) | 22L |
| 9 | Max speed | 90kw/h |
| 10 | mini turning diameter | 18m |
| 11 | Max Gradability | 25﹪ |
| 12 | Truck wheelbase | 4600(mm) |
| 13 | Wastes van volume | 12-15m3 |
| 14 | Fuel type | Diesel |
| 15 | Wastes hopper lifting angle | ≥45° |
| 16 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 17 | compacting way | Bi-directional compression; wastes compacting density≥0.8T/m³ |
| 18 | one working circle time for loading (s) | ≤22 |
| 19 | one working circle time for discharging (s) | ≤30 |
| 20 | Overall dimension(L*W*H) (mm) | 8765×2500×3300 (mm) |
| 21 | Curb mass(kgs) | 8870 |
| 22 | max compressing force | ≥150KN, |
| 23 | Color | Different color upon request |
The waste compression truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks, such as garbage compactor truck, refuse garbage truck, side loader garbage truck, swing arm garbage truck, rear loader garbage truck, hook lifter garbage truck, etc. More information, please feel free to contact with Ms. Anita Deng.
