a batch of SINOTRUK HOWO brand 6*4 LHD dump tipper trucks for Africa
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.

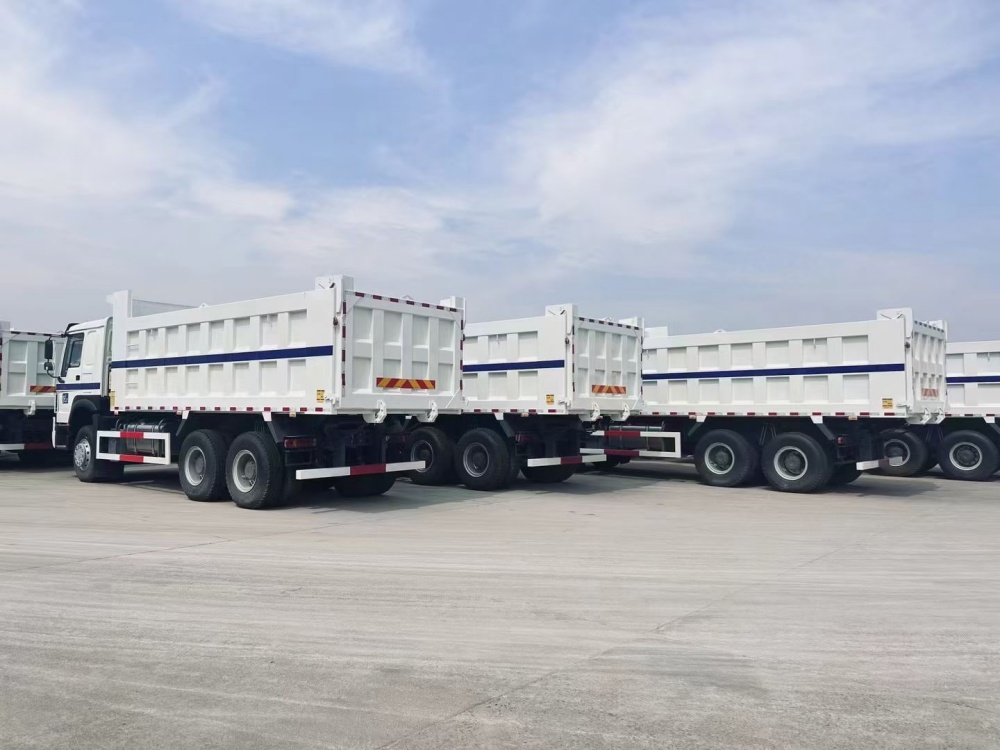

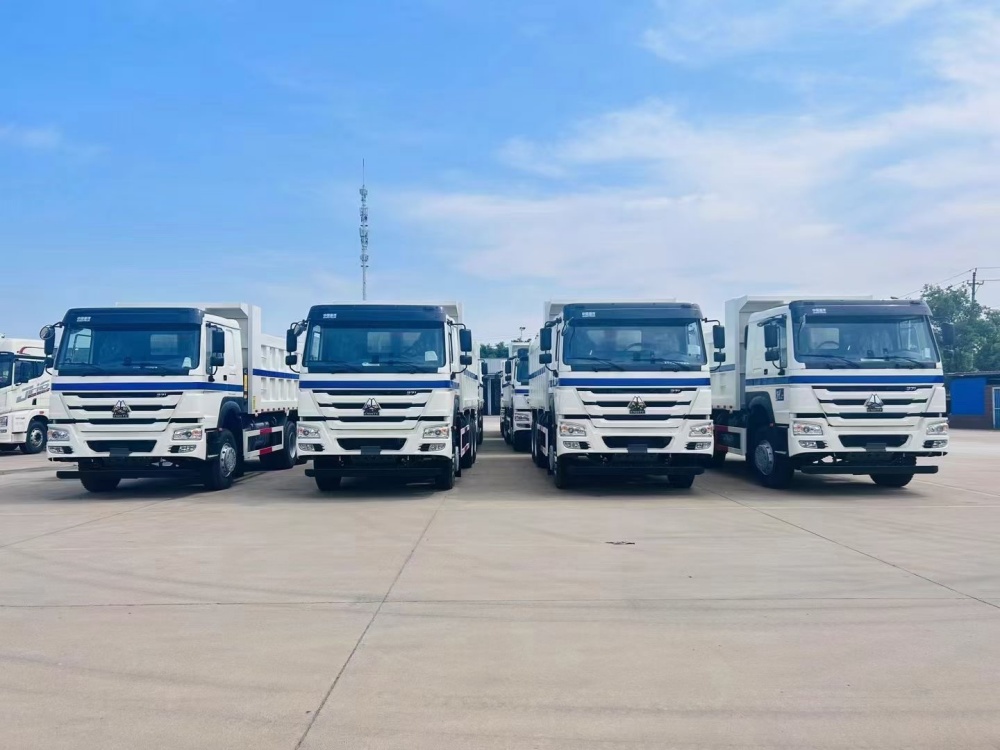

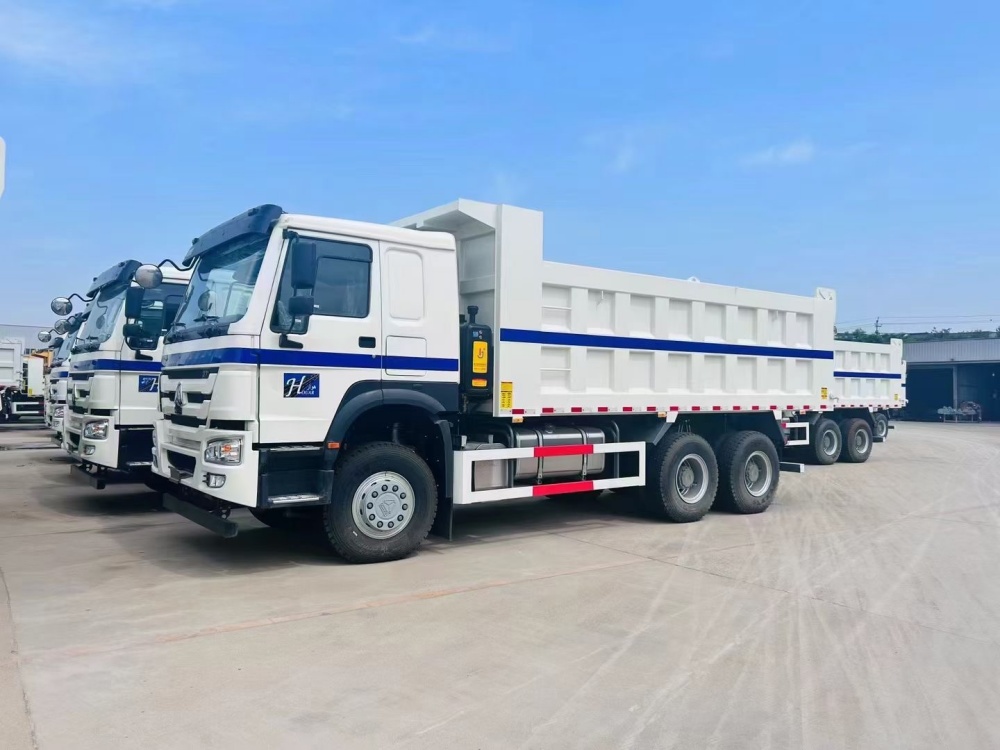

A batch of SINOTRUK HOWO brand 6*4 LHD dump tipper trucks for Africa
SINO TRUK HOWO HW76 new face one row and a half driver cab
6*4 LHD, RHD Optional
4325+1350mm wheelbase,
WD615.47 371hp diesel engine, Euro 2 emission standard
HW19712 10+2 gears, manual type
ZF8118 steering gear,
HW70 PTO,
VGD95 9.5T front axle/MCP16ZG 16T double rear axle
high bumper (metal material),
12.00R20 rail tires, 300L oil tanker, etc.
Overall dimension(L*W*H): 9245×2496×3800mm
The tipper box body dimension(L*W*H): 5800×2300×1500(mm); 8mm thickness for side steel plate and10mm thickness for bottom plate.
The volume is 20cbm. The real loading capacity of the SINOTRUK HOWO 6*4 dump tipper truck is 30T.
SINOTRUK HOWO 6*4 10 tires dump tipper truck 30000kgs for sale
high quality and best price SINOTRUK HOWO 10 tires 371hp diesel dump truck for Africa
20cubic meters HOWO sand and stone transported dump truck for Africa
A batch of SINOTRUK HOWO dumper trucks for Africa
Main technical parameters of SINOTRUK HOWO 6*4 LHD dump tipper truck is as below.
Items | Descriptions | Specifications and Types |
General | Truck Name | SINO TRUK HOWO 6*4 LHD dump truck for sale |
Drive Type | 6*4 LHD, RHD optional | |
Loading capacity （kgs）） | 25,000-30,000 | |
Gross Vehicle Weight(kg) | ||
Rated weight(kgs) | ||
CurbWeight (kg) | ||
Overall Dimensions L*W*H(mm) | 9245×2496×3800mm | |
Engine | Engine Model | WD615.47 |
Fuel Type | Diesel | |
Power | 273KW/371HP | |
Emission Standard | Euro II | |
Displacement(ml) | 9726 | |
Engine Type | 6 cylinders, 4 strokes in line, direct-injection, water cooling with turbo-intercooler,diesel | |
Chassis | Chassis Brand | SINO TRUK HOWO |
Drive type | 6*4 LHD ,RHD optional | |
Front/Rear Axle Load(KG) | 7000/18000(double axles) | |
Tire No. | 10 | |
Tire Specification | 12.00R20 rail tires | |
Wheelbase (mm) | 4325+1350 | |
Axle No. loading capacity | VGD95 9.5T front axle/MCP16ZG 16T double rear axle | |
Gear Box | HW19712 10 speed gearbox, manual | |
PTO | HW70 PTO | |
Steering Gear | ZF8118 | |
Brake | Air brake | |
Air Conditional | Yes, original air conditioner, | |
Front/rear suspension(mm) | 1500/2070 | |
Leaf Spring No. | 10/- | |
Driver cab | SINO TRUK HOWO HW76 new face head one row and a half driver cab | |
Tipping system | Box inner dimension(mm) | 5800*2300*1500(mm) |
Box material | Q345 Carbon steel,side 8mm,bottom 10mm | |
Dump box body shape | Rectangular box shape | |
Hydraulic cylinder no.(set) | Single one | |
Hydraulic cylinder position | Front installed hydraulic cylinder #180 | |
Discharge type | Rear tipping(rear door) | |
Remark | Clients choose to install top mounted hydraulic environmental protection cover. | |
