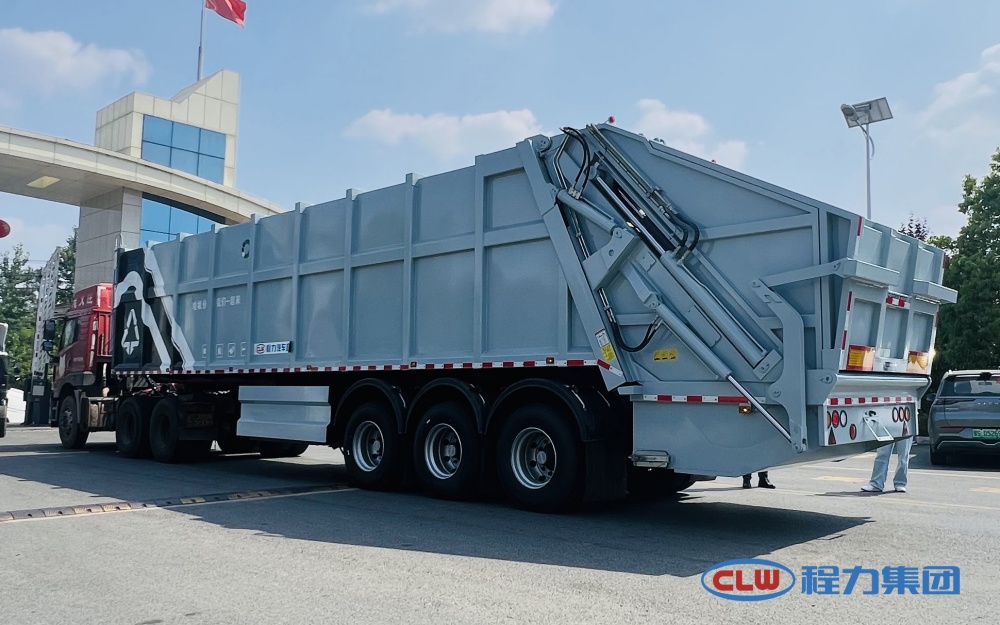

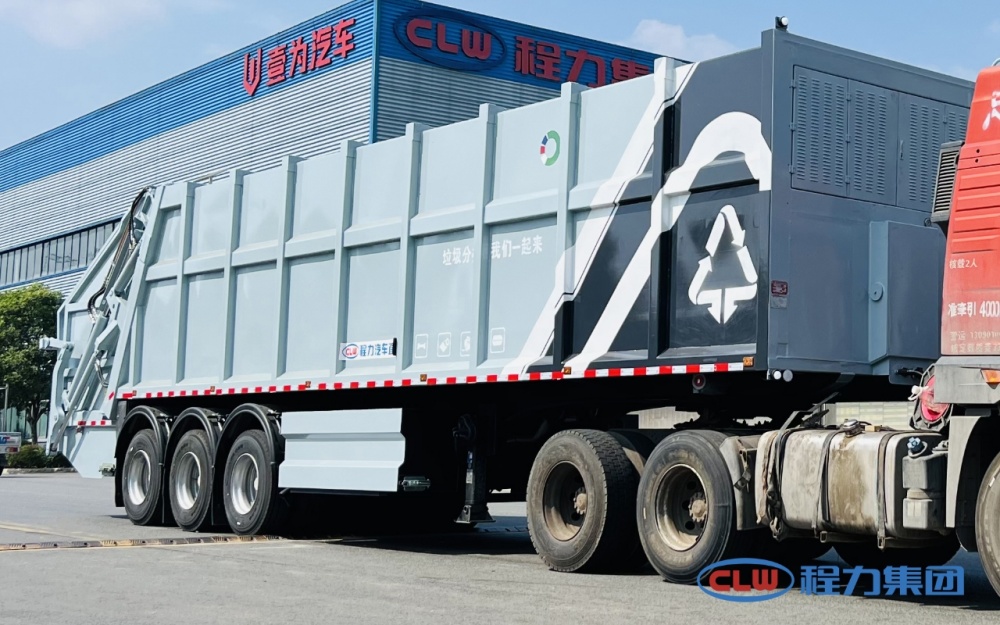

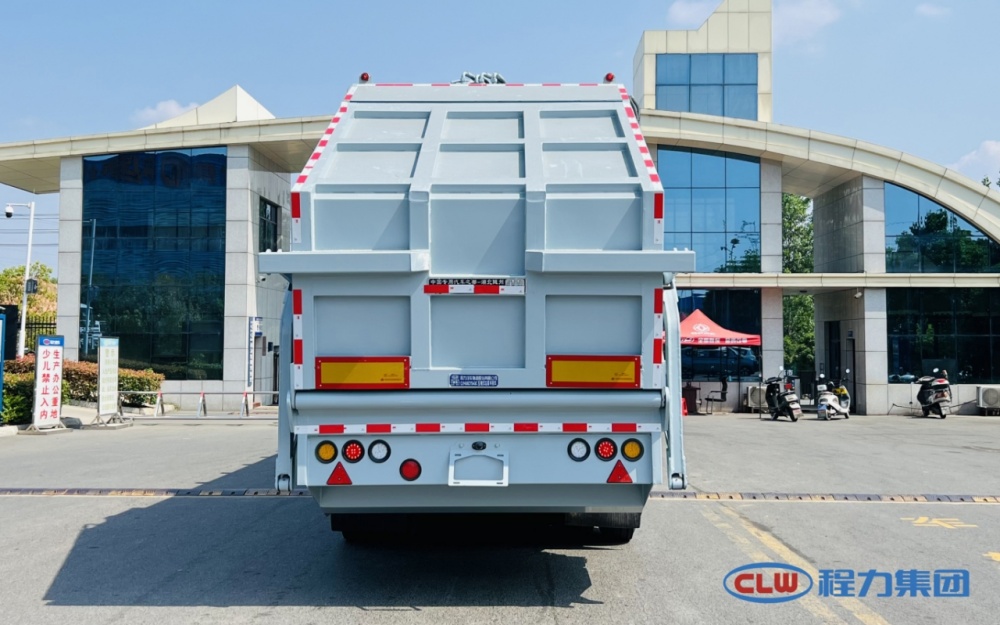

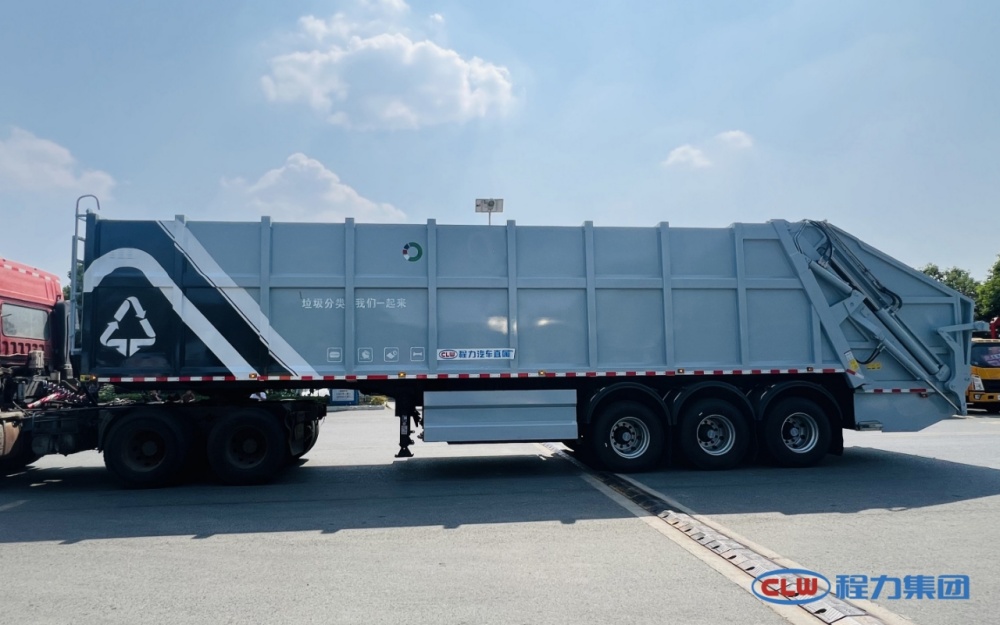

New design new product factory direct sale best price compressed garbage container semitrailer 50cubic meters for sale
main technical paramters of 50cubic meters of compressed garbage container semitrailer manufactured by Chengli Special Automobile Co., Ltd. is as below.
Product name | Compacted garbage container semitrailer for sale | Volume | 47-50cubic meters |
Curb mass(Kg) | 19500 | Total mass(kg) | 40000 |
Tire specification | 12R22.5 tires *12+1 spare | Rated mass | 20500 |
Overall dimension(L*W*H) | 13610,13400*2550*3998mm | ||
Remark | The vehicle uses garbage bins, shovels, filling mechanisms and other devices to achieve the functions of garbage collection, filling, pushing and unloading. The corresponding relationship of vehicle length/wheelbase/rear overhang is (mm): 13610/6090+1310+1310/3290, 13400/5880+1310+1310/3290; the ground clearance is 490mm; | ||
Box: The box side plate is standardly equipped with T700 high-strength wear-resistant plate. Box side plate 6mm bottom plate 8mm, slide 25mm thickened, scraper thickness 8mm, filler bottom plate 10mm, scraper plane thickness 8mm Axle: Standard 13-ton Fuhua axle · drum brake * 3; Brake pad: Standard 16T. Suspension: Standard 180 mechanical suspension; Outrigger: Standard electric outrigger; Traction pin: Standard domestic 50# or 90# traction pin. Turning radius: 8.00 meters-10.00 meters (for reference only). With Komi ABS; the vehicle appearance including side lights, wheelbase, wheelbase, box and trailer dimensions are all made according to the requirements of the announcement. The upper body electro-hydraulic configuration: external 380V power drive, scraper single cycle 27 seconds, scraper slide lifting cylinder 110/63 thickened, push plate main cylinder with balance bracket, all cylinder shaft pins are quenched to increase hardness and not easy to bend and break, two sewage tanks are installed, which can be used as clean water tanks (optional 25m high-pressure cleaning gun), 95W 4-stage motor, equipped with load-sensitive proportional valve system, small power loss, low system heat generation, and extended service life of hydraulic pump valve cylinder. Advanced visual electronic control system, with 250L high-pressure filter, 250L hydraulic oil radiator, hydraulic oil tank capacity 580L, high-quality hydraulic oil pipe cylinder. The whole vehicle adopts CAN intelligent display control, remote control and voice broadcast in the same department. The system has automatic fault detection function, adopts soft start motor thermal protector, and is equipped with leakage protection to ensure personnel safety.
high quality and best price 50cubic meters compressed garbage container semitrailer for sale
Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc
Garbage compactor truck capacity from 3 cbm to 18cbm all available .
Chengli brand Garbage compactor truck advantage as below.
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer’s requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.
Our trash truck compactor is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
The refuse compactor truck for sale usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.by the use of hydraulics,the barrel is locked during the overturning process,which is very safe and reliable.
As a professional compression garbage truck manufacturer in China, with ISO9001-2008 quality system and 3C certificate, the trash compactor trucks we produce is from 4m³ to 18m³. The mini trash compactor for sale is 4 cubic meters.
