Customized SINO TRUK HOWO12CBM garbage compactor truck for sale

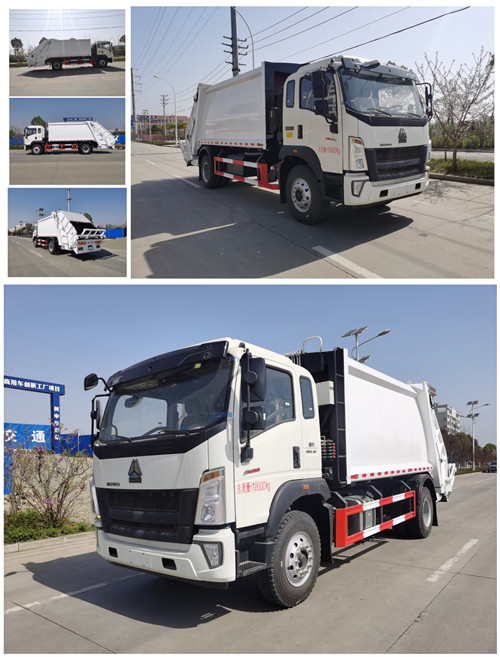

One unit of HOWO 12CBM garbage compactor truck is finished, look at the pictures of SINO TRUK HOWO 4*2 LHD 160hp diesel garbage compactor truck is as below.
customized HOWO 12cbm garbage compactor vehicle for sale
Customized SINO TRUK HOWO 4*2 LHD 160hp diesel 12cbm garbage compactor truck, adotps SINO TRUK HOWO LHD 2080mm one row and a half driver cab, 4700mm wheelbase, YC4E160-33 yuchai 160hp diesel engine, 6 speed gearbox, 3.6tons front axle/10.5tons rear axle, 9.00R20 rail tires, power steering, air cut braking, engine brakes, etc.
The volume of SINO TRUK HOWO 160hp diesel garbage compactor truck is about 12cbm. and with the wastes loading capacity of about 8tons-10tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Main technical parameters of SINO TRUK HOWO Light duty 12cbm garbage compactor truck is as below.
| 1 | Product name | SINO TRUK HOWO 4*2 LHD 12m3 garbage compactor truck for sale |
| 2 | Truck chassis model | ZZ |
| 3 | Overall dimension(L*W*H) | 9000×2500×3300 |
| 4 | Total mass(kgs) | 18000 |
| 5 | Curb mass(kgs) | 10680 |
| 6 | Rated mass(kgs) | 7315 |
| 7 | Volume | 12m3 |
| 8 | Real loading capacity | About 8-10tons |
| 9 | Max speed | 90kw/h |
| 10 | Wheelbase | 4700 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | SINO TRUK HOWO LHD 2080mm one row and a half driver cab |
| 13 | Approach/departure angle(°) | 19/17 |
| 14 | Front/rear suspension (mm) | 1330/2770 |
| 15 | Front/rear tread(mm) | 1980/1860 |
| 16 | Tire specification | 9.00R20*6 |
| 17 | Spring | 3/9+8 |
| 18 | Engine model | YC4E160-33 |
| 19 | Rated power | 118KW/160hp |
| 20 | Displacement(ml) | 4257ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 3 |
| 23 | Gearbox | 6 speed gearbox, manual |
| 24 | Front/rear axle | 3.6tons/10.5tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
